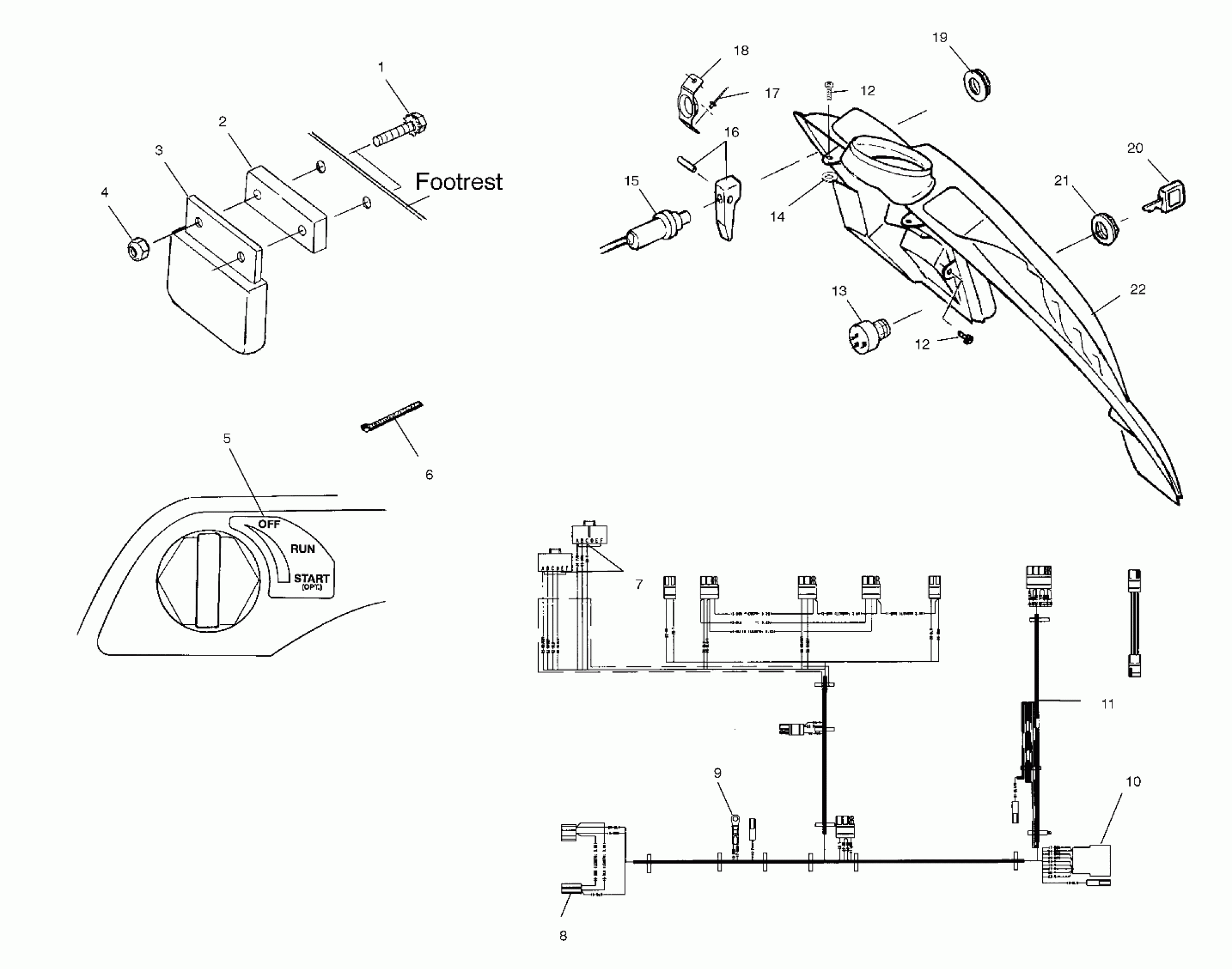

Polaris 500 RMK 136 - S02SR5AS CONSOLE - S02SR5AS (4969336933A011) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

4

NUT(10)

7541925

$1.49

5

DECAL,CONSOLE,IGNITION

7077367

Unavailable

6

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

7

SOCKET-PACKARD#12047767

4010192

Unavailable

8

HOUSING

4020063

$3.19

9

Terminal, Ring

4020092

Unavailable

10

Housing w/Receptacle

4020057

$3.51

11

HARNESS-MAINWIRE,STAR,COM

2460799

$404.99

12

SCREW(10)

7515199

$1.49

12

SCREW(10)

7515199

$1.49

13

KIT,IGN.SWITCH

2200358

$76.89

14

WASHER,NYLON

7555932

$2.39

15

CABLE,CHOKE,SINGLE-PULL (Incl. 16,19)

7080734

Unavailable

16

KIT,CHOKE LEVER

2201439

$24.27

17

RIVET, POP(50)

7621330

$1.49

18

GUIDE-RECOIL

5243049

$9.70

19

NUT,CHOKE

5432944

$8.79

20

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behin

5410611

Unavailable

21

NUT,IGNITION

7547035

$8.79

22

CONSOLE,HYBRID,BLK

5432906

Unavailable
