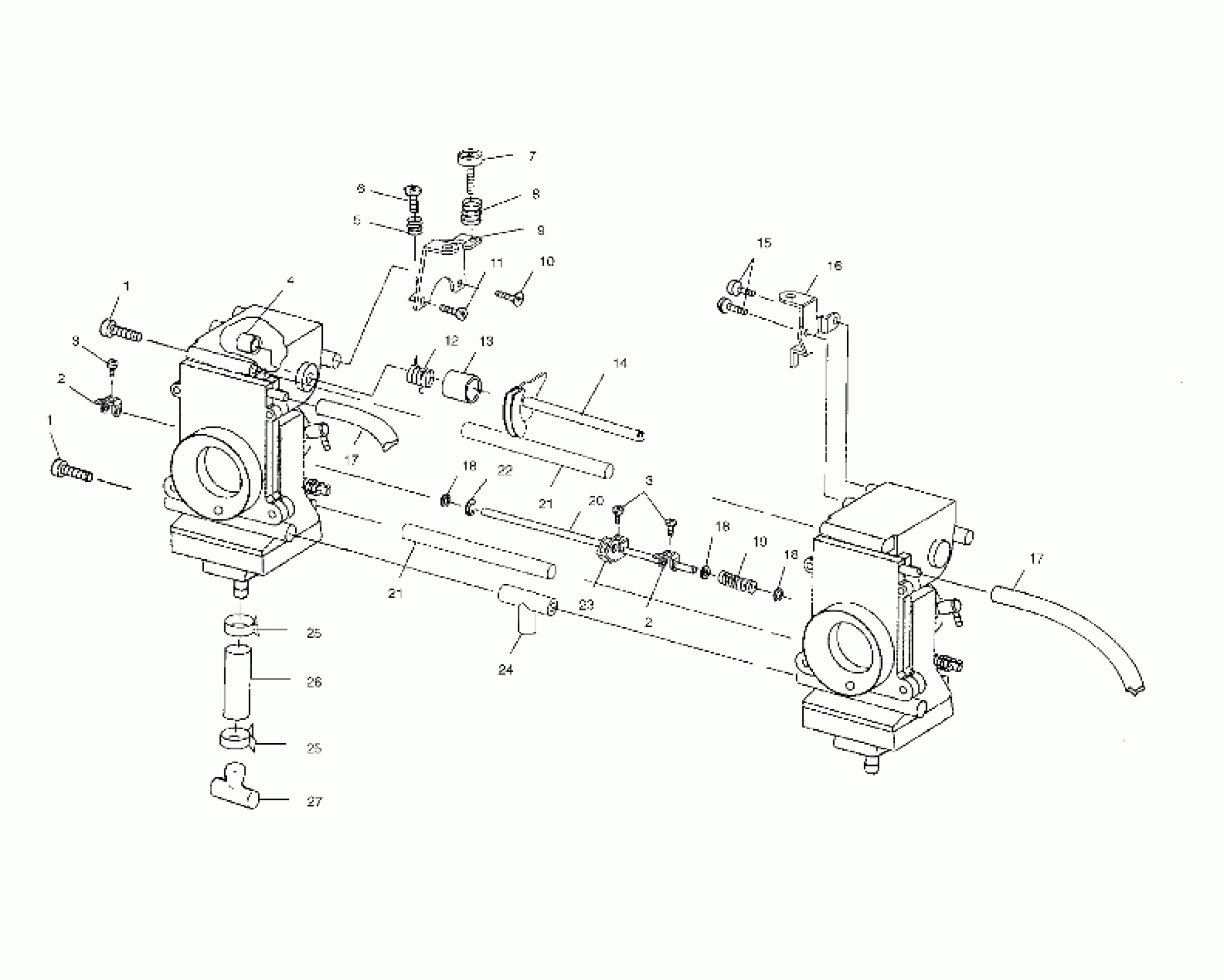

Polaris 500 RMK 136 - S02SR5AS CARBURETOR - S02SR5AS (4969336933C008) Diagram

#

Description
Price

1

BOLT,RACK

3130834

$27.99

1

BOLT,RACK

3130834

$27.99

2

LEVER,STARTER

3130832

$24.27

2

LEVER,STARTER

3130832

$24.27

3

SCREW,STARTER

3130833

$3.99

3

SCREW,STARTER

3130833

$3.99

4

Ring

3140032

Unavailable

5

Spring

3130817

$6.46

6

Screw

3130816

$6.39

7

Adjuster

3131285

$24.27

8

Spring

3131284

$8.89

9

BRACKET-TM38/246

3131380

$36.41

10

Screw

3130810

$3.19

11

Screw

3130809

$3.19

12

Spring

3130950

$36.41

13

Ring

3130853

$7.27

14

ASM-SHAFT

3131379

$103.79

15

Screw

3130821

$7.19

16

Bracket

3130820

$40.46

17

Hose

3130826

$9.70

17

Hose

3130826

$9.70

18

PACKING,STARTER SHAFT

3130842

$2.83

18

PACKING,STARTER SHAFT

3130842

$2.83

18

PACKING,STARTER SHAFT

3130842

$2.83

19

SPRING,STARTER SHAFT

3130841

$7.27

20

Shaft

3130840

$28.32

21

RING,RACK

3130852

$20.22

21

RING,RACK

3130852

$20.22

22

E-Ring

3130839

$4.84

23

LEVER,STARTER

3130819

$32.37

24

ASM-NIPPLE TM40

3131374

$36.41

25

HOSE CLAMP, RED

7080003

$1.49

25

HOSE CLAMP, RED

7080003

$1.49

26

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable

27

PLUG,TRAP

5431893

$12.94
