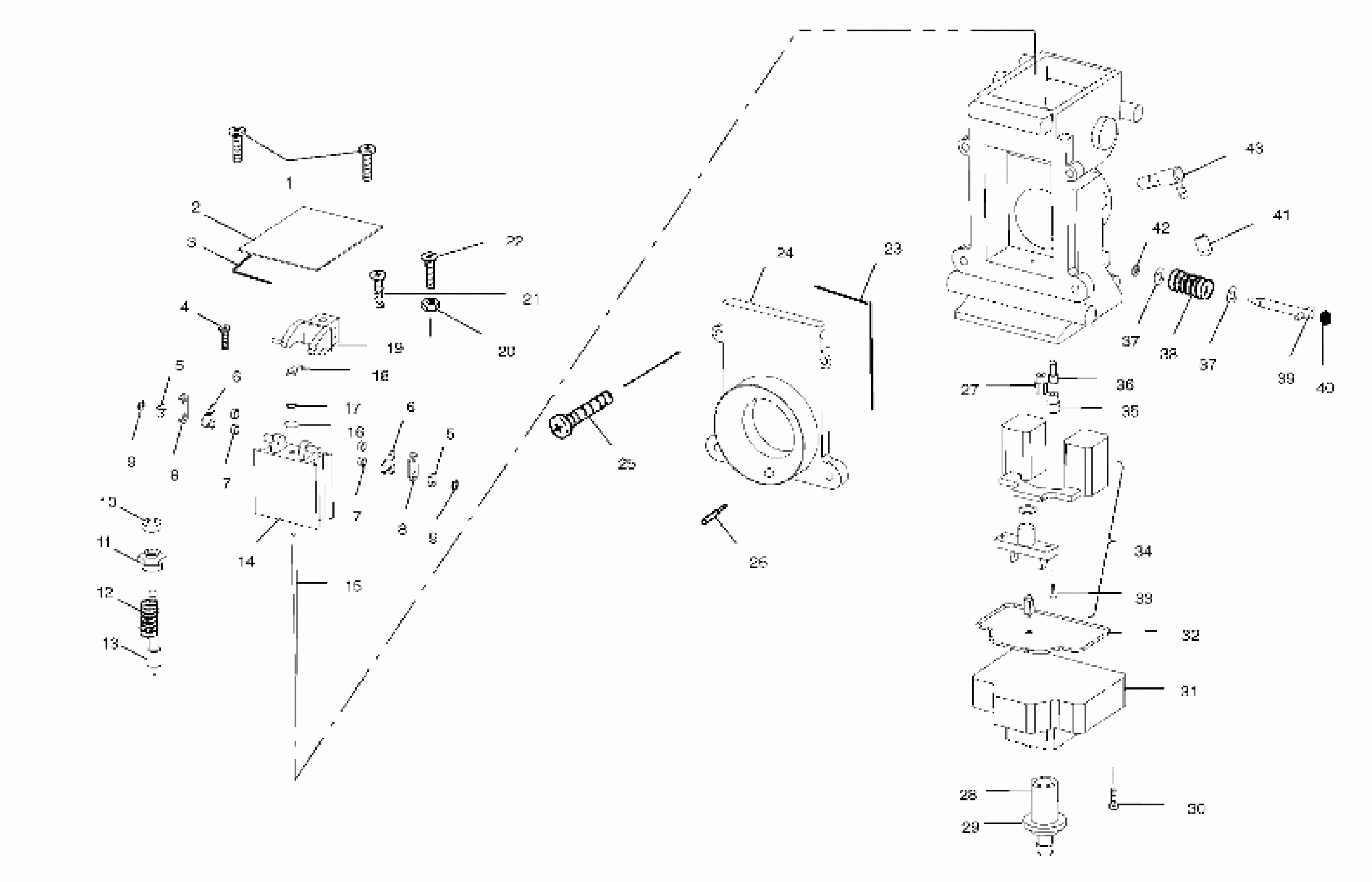

Polaris 500 RMK 136 - S02SR5AS CARBURETOR - S02SR5AS (4969336933C007) Diagram

#

Description
Price

-

ASM-CARB 38MM,00 500 RMK

3130995

Unavailable

1

Screw

3130951

$3.99

2

CAP,TOP

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

WASHER,PACKING

3130846

$4.79

5

WASHER,PACKING

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

9

E-Ring

3130847

$8.89

10

CAP,STARTER,(RUBBER)

3130831

$7.27

11

HOLDER,STARTER GUIDE

3130830

$32.37

12

SPRING,STARTER

3130829

$12.94

13

PLUNGER ASM./258

3130828

$32.37

14

PV,NOTCHED,TM38/318-1.5 (1.5 Valve)

3131216

Unavailable

15

JET,NEEDLE,(J8-9FH04-57) (J8-9FH04-57-2)

3130794

$36.41

16

Packing

3130867

$5.65

17

E-Ring

3130868

$8.89

18

Plate

3130843

$8.89

19

LEVER ASM.

3130855

$64.75

19

LEVER ASM.

3130849

$64.75

20

Ring

3130848

$32.37

21

Screw

3130854

$3.19

22

Screw

3130850

$4.79

23

O-RING,AIR FUNNEL

3130870

$24.27

24

FUNNEL ASM.

3130869

$102.99

25

SCREW,AIR FUNNEL

3130825

$3.19

26

JET,AIR,PILOT(0.7) (PAJ)(0.7)(Long)

3131256

$20.22

27

JET,MAIN,HX.HD#270(10) (270)

3130130

$7.27

28

DESC NOT_AVAILABLE

3131248

Unavailable

29

O-RING,DRAIN SCREW

3130863

$2.41

30

SCREW,FLOAT BOWL

3130824

$3.19

31

FLOAT,BODY

3130858

$119.99

32

O-RING,FLOAT BOWL

3130861

$12.13

33

SCREW,VALVE SEAT

3130860

$8.79

34

FLOAT ASM.

3130859

$94.99

35

JET,STARTER,#VM11/22-155 (155)

3130771

Unavailable

36

JET,PILOT,#45(10) (45)

3130068

$8.89

37

Washer

3130837

$3.19

37

Washer

3130837

$3.19

38

SPRING

3130836

$7.27

39

Adjuster

3130987

$20.22

40

Cap

3130986

$9.70

41

CAP

3130479

$14.56

42

Packing

3130835

$2.41

43

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37
