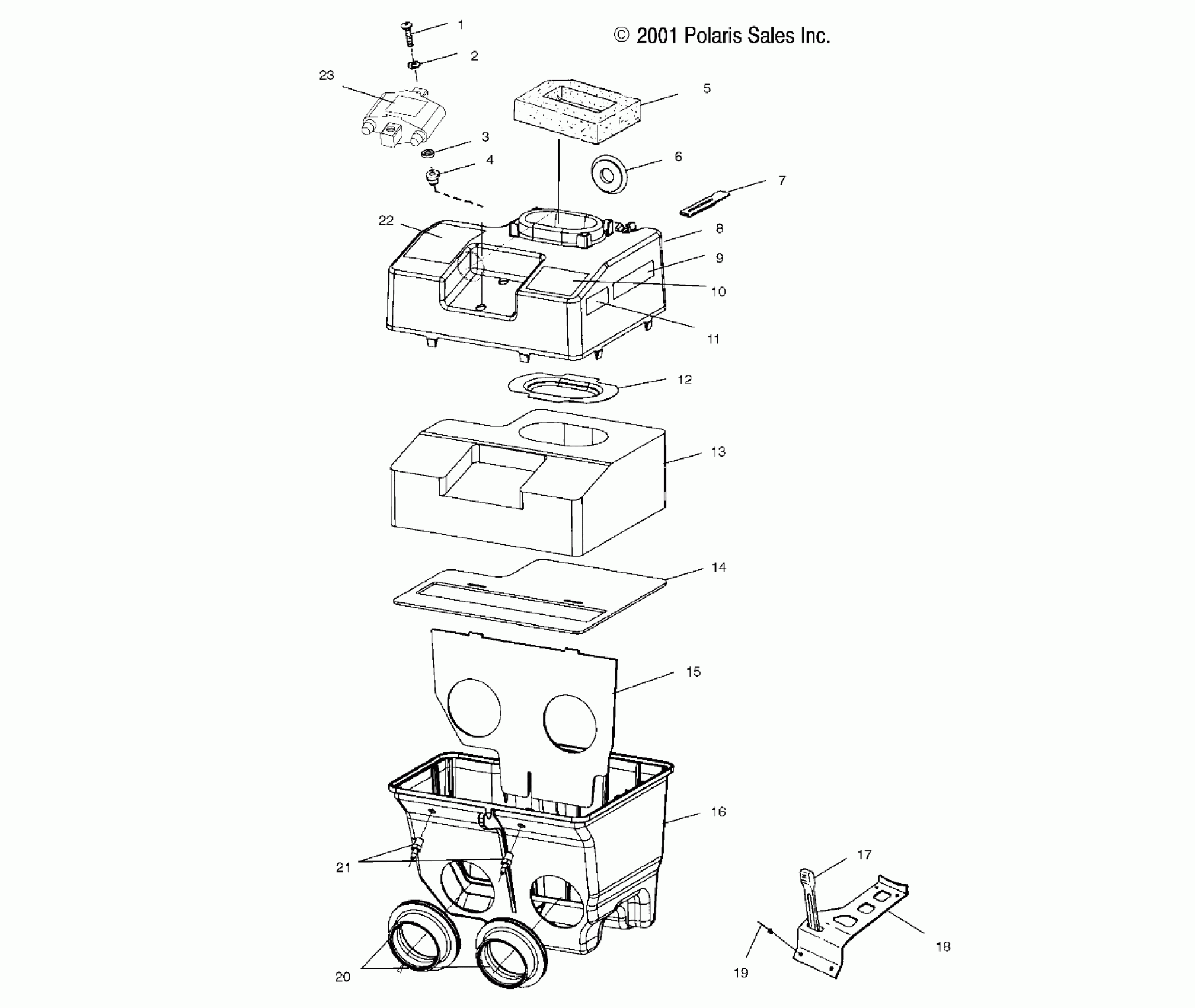

Polaris 500 RMK 136 - S02SR5AS AIR BOX - S02SR5AS (4969336933C002) Diagram

#

Description
Price

1

Screw

7517610

$1.59

2

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

3

WASHER,NYLON

7555932

$2.39

4

NUT

7547103

$8.79

5

FOAM,AIRBOX,CHIMNEY,HYB.

5811606

Unavailable

6

PLUG

5410344

$5.65

7

RETAINER-TAB,(10)

5411075

Unavailable

8

TOP,SILENCER INTAKE W/1.5

5433072

$49.59

9

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

10

DECAL,CAUTION,AIRBOX

7075351

Unavailable

11

DECAL, GREASING [No Longer Available]

7073426

$7.27

12

MESH-WIRE,FORMED

5243219

Unavailable

13

FOAM,AIRBOX,TOP,INTERNAL

5811564

Unavailable

14

PLATE,SILENCER INTAKE

5850134

Unavailable

15

PLATE,SILENCER,INTAKE,VERT.

5850139

$10.71

16

SILENCER,INTAKE,DRILLED

5432882

$46.08

17

STRAP,TIE-DOWN

5411129

$8.89

18

BRKT,SIL.MOUNT,LOW Substituted by 5243729

5241691

Unavailable

19

RIVET-3/16-.090-.290

7661637

$1.49

20

BOOT,CARB,63MM.

5411424

Unavailable

21

FITTING,HOSE(10)

7052127

$3.19

22

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

23

DECAL,SPARKPLUG REC.

7077026

$2.95
