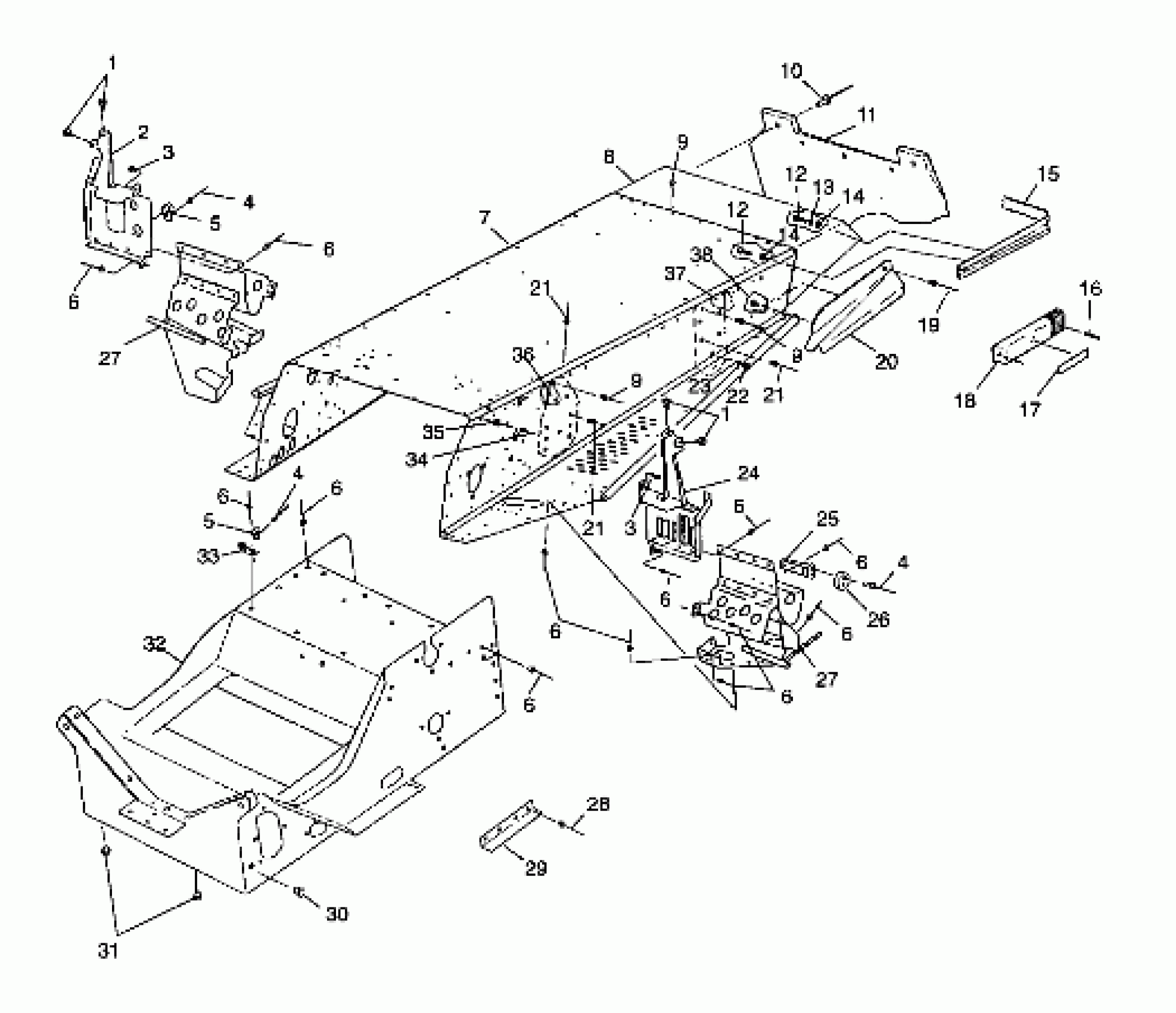

Polaris 500 RMK - 099ER4BS TUNNEL - 099ER4BS (4948294829a005) Diagram

#

Description
Price

1

BUMPER,HOOD

5410768

$2.95

1

BUMPER,HOOD

5410768

$2.95

2

MT,CONSOLE,RH

1011952-067

$339.99

3

SCREW(10)

7512057

$2.38

3

SCREW(10)

7512057

$2.38

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

5

GUIDE, RECOIL

5431385

$10.51

5

GUIDE, RECOIL

5431385

$10.51

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

7

TUNNEL,LQ.X10,EV,BLK. (Incl. 8,36,37)

1012361-067

Unavailable

8

PANEL ASM,TUNNELBACK

1012360-067

Unavailable

9

RIVET ,(50)

7661836

$0.63

9

RIVET ,(50)

7661836

$0.63

9

RIVET ,(50)

7661836

$0.63

10

POP RIVET(50)

7621418

$1.49

11

FLAP,SNOW

5432033

Unavailable

12

BOLT(10)

7512240

$3.99

12

BOLT(10)

7512240

$3.99

13

LOCK WASHER(10)

7552801

$1.59

14

WASHER(10)

7558301

$1.49

14

WASHER(10)

7558301

$1.49

15

BUMPER, REAR

2670170

Unavailable

16

SCREW(10)

7511863

$1.99

17

REFLECTOR RED

2670070

$9.91

18

CAP, BUMPER, BLK.

5430930-070

Unavailable

19

RIVET,(50)

7621342

$1.49

20

SKIRT,SNOW,LH

5432049-070

$33.91

20

SKIRT,SNOW,RH

5432050-070

$30.16

21

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

21

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

21

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

22

SCREW,(10)

7517388

$3.79

23

NUT-LOCK(10)

7542439

$1.49

24

MT,CONSOLE,LH

1011951-067

$35.51

25

SUPPORT,BUMPERSIDE,BLK.

5240294-067

Unavailable

26

STOP,SIDEPANEL BUMPER

5411172

Unavailable

27

FOOTREST ASM,LH,BLK. Substituted by 1012544

1011934

Unavailable

27

FOOTREST ASM,RH,BLK. Substituted by 1012545

1011935

Unavailable

27

FOOTREST ASM,LH,BLK. Substituted by 1012544

1011934

Unavailable

27

FOOTREST ASM,RH,BLK. Substituted by 1012545

1011935

Unavailable

28

RIVET(50)

7621452

$1.49

29

GUARD,ADAPTER GUIDE

5222857

$12.94

30

PLUG, HOLE(10)

7080416

$5.65

31

PLUG-HOLE

7080398

$4.84

32

BULKHEAD ASM,LIQ,BLK.

1012652-067

$436.51

33

BRKT,ROPE GUIDE,BLK.

5222687-067

$59.99

34

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

35

SNAP-MALE(10)

7080227

Unavailable

36

PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067

5241303-067

Unavailable

36

PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067

5241304-067

Unavailable

37

BRKT,LH,R.SUSP,BLK.

1012563-067

Unavailable

37

BRKT,RH,R.SUSP,BLK.

1012564-067

Unavailable

38

SCREW(10)

7512091

$3.99
