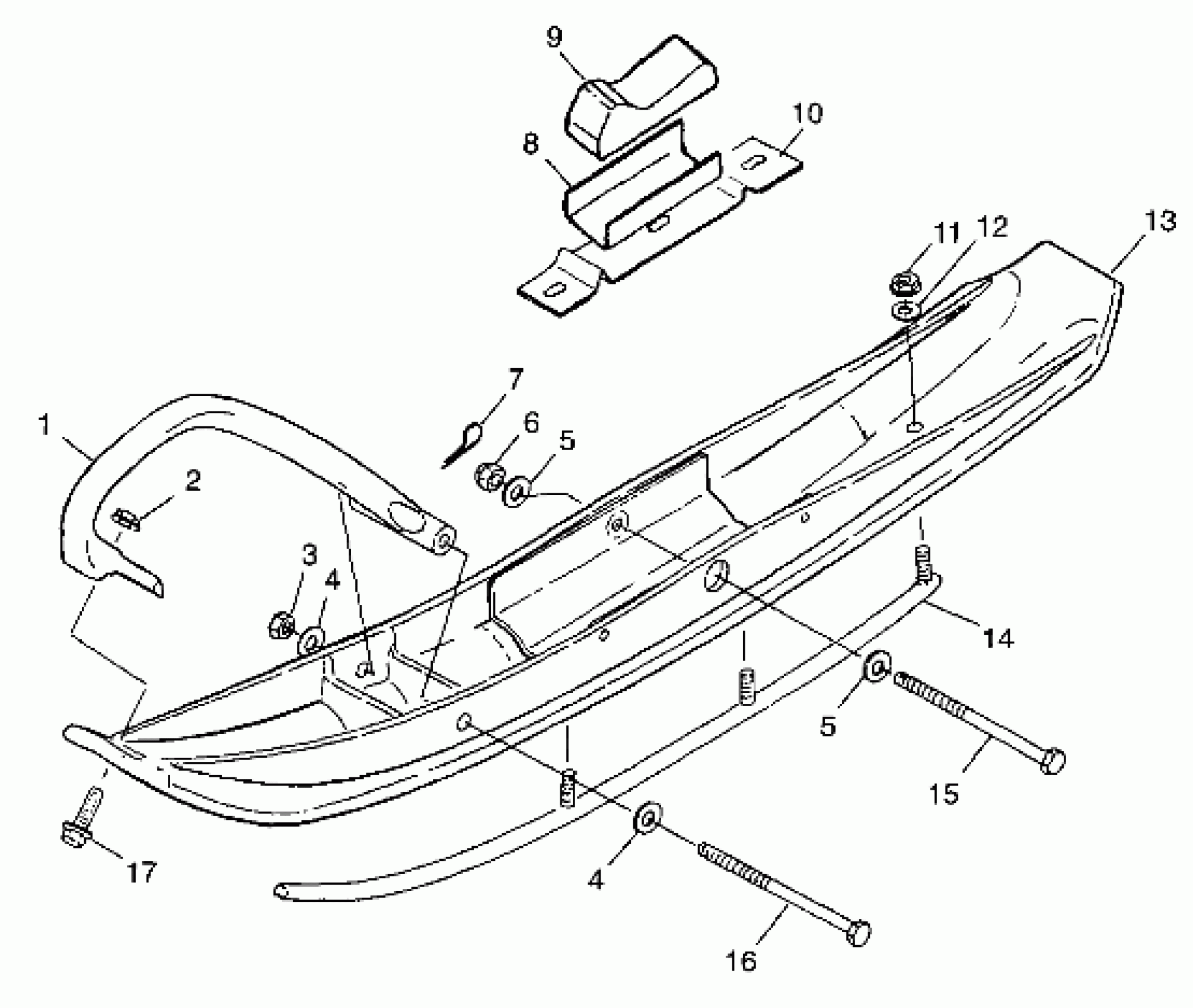

Polaris 500 RMK - 099ER4BS SKI - 099ER4BS (4948294829b003) Diagram

#

Description
Price

1

TOE,PLASTIC SKI Substituted by 5432209-070

5432209

$40.46

2

NUT LOCK(10)

7542321

$1.49

3

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

4

WSHR-.813X.406X.105-Y

7555832

$2.39

4

WSHR-.813X.406X.105-Y

7555832

$2.39

5

WASHER(10) Substituted by 7555832

7555851

Unavailable

5

WASHER(10) Substituted by 7555832

7555851

Unavailable

6

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

7

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

8

RETAINER-SKI RUBBER Substituted by 5243824

5243127

$27.78

9

STOP,RUBBER

5411094

Unavailable

10

SUPPORT,SKI,RUBBER,BLK

5241912-067

Unavailable

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

13

SKI/SHORTSADDLE,COMP,W/O TOE Substituted by 1820473-070

1820473

Unavailable

14

SKAG,CARBIDE 4",60DEG,COMP

2871688

$63.99

15

SCREW,(10)

7512596

$19.99

16

BOLT(10)

7515514

$7.19

17

BOLT(10)

7515307

$3.99
