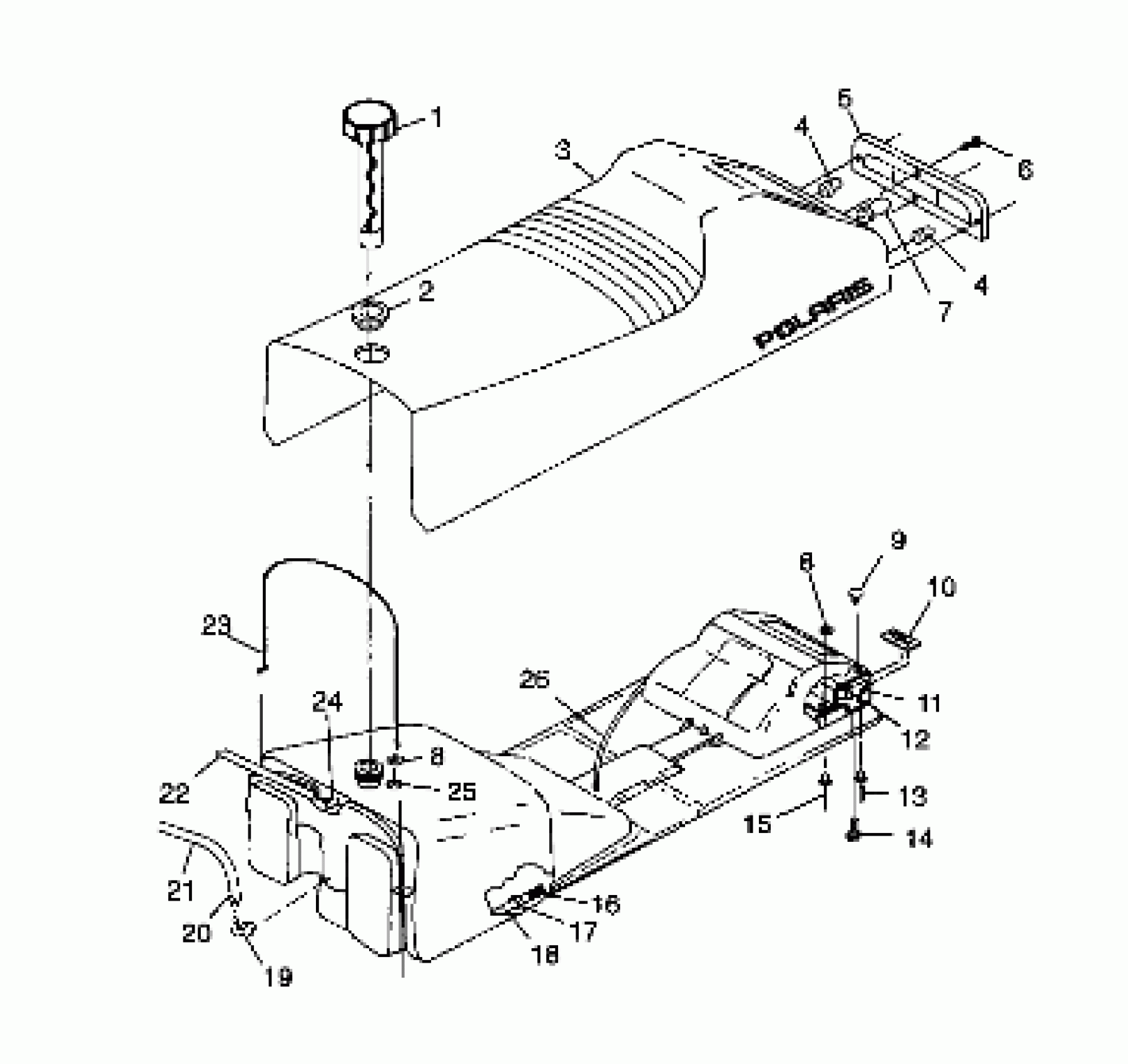

Polaris 500 RMK - 099ER4BS SEAT and GAS TANK - 099ER4BS (4948294829a007) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GROMMET,FUELTANK

5410842

Unavailable

3

COVER ASM,SEAT,LONG

2682396

Unavailable

3

SEAT ASM,LONG (Incl. 3-14-19,22-26)

2682397

Unavailable

4

BULB,TAILLIGHT(10)

4030024

$4.84

4

BULB,TAILLIGHT(10)

4030024

$4.84

5

LENS,TAILLIGHT

5430423

Unavailable

6

SCREW(10)

7511840

Unavailable

7

Bulb, Brakelight

4030045

Unavailable

8

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

8

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

9

CLIP,DART,(10)

7670097

Unavailable

10

NUT,RETAINER-WELD.(10)

7542147

$17.59

11

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

12

COVER,T/L PROTECTOR

5431436

$21.43

13

RIVET(50)

7621301

$3.99

14

SCREW(10)

7512242

$2.39

15

RIVET(50)

7621464

$3.99

16

FUELPICKUP,W/STRAINER

7052037

$12.94

17

RING, COMPRESSION(10)

7080402

$1.60

18

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

19

FITTING,OUT,90 DEG,,DOUBLE

7052143

Unavailable

20

HOSE CLAMP, RED

7080003

$1.49

21

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

22

FUELLINE,3MMX7MM

8450061-600

Unavailable

23

CABLE,TANK,RETENTION

7080559

Unavailable

24

FITTING,90 DEG,1/8,(10)

7052095

$4.79

25

NUT(10)

7541925

$1.49

26

HARNESS,TAILLIGHT

2460398

Unavailable
