Description

Price

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

SHAFT,R.TORQUE,UPPER

5131910

$89.03

5

ARM,R.TORQUE,BLK.

1541290-067

Unavailable

6

ZERK,FITTING,THREADED(10)

7080433

$1.49

6

ZERK,FITTING,THREADED(10)

7080433

$1.49

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

8

BOLT(10)

7512377

$4.79

9

Shaft

5333536

Unavailable

10

BOLT,EYE

7010050

Unavailable

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

Screw

7517232

$19.99

13

SPRING,LH,TORSION,BLK. (.359/77 Degree) Standard

7041629-067

Unavailable

13

SPRING,RH,TORSION,BLK. (.359/77 Degree) Standard

7041630-067

Unavailable

13

SPRING-TORSION,.375/77�,LH,BLK (.370/77 Degree) Optional

7041631-067

$140.38

13

SPRING-TORSION,.375/77�,RH,BLK (.370/77 Degree) Optional

7041632-067

$140.38

13

SPRING-TORSION,.347SQ/77�LHBLK (.342/77 Degree) Optional

7041627-067

$135.54

13

SPRING-TORSION,.347/77�,RH,BLK (.342/77 Degree) Optional

7041628-067

$135.54

14

COLLAR,BRG.LOCK

5131911

$16.47

15

SCREW-SET(10)

7512257

$3.99

16

Wheel, Carrier

1543023

Unavailable

17

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

18

SLEEVE,TORS.SPRING

5433007

Unavailable

19

CLIP-PUSH ON

7080394

$2.39

20

ROLLER-SPRING,ADJ,SQ,RMK,SKS

5433211

Unavailable

21

WASHER(10)

7555716

$1.59

21

WASHER(10)

7555716

$1.59

21

WASHER(10)

7555716

$1.59

22

STRAP,LIMITER

5411061

Unavailable

23

SCREW(10)

7512310

$2.39

24

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

24

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

25

BUSHING,PIVOT TUBE

5020561

$1.59

25

BUSHING,PIVOT TUBE

5020561

$1.59

25

BUSHING,PIVOT TUBE

5020561

$1.59

26

Spacer

5333559

Unavailable

27

ROD,SHOCK,(XTRA 10)133

1541021-067

Unavailable

28

BOLT(10)

7515472

$2.39

29

BUSHING

5010422

$11.99

30

BOLT(10) Substituted by 7515492

7512410

Unavailable

31

SHOCK,RR TRK,ADJ,X-10

7041577

Unavailable

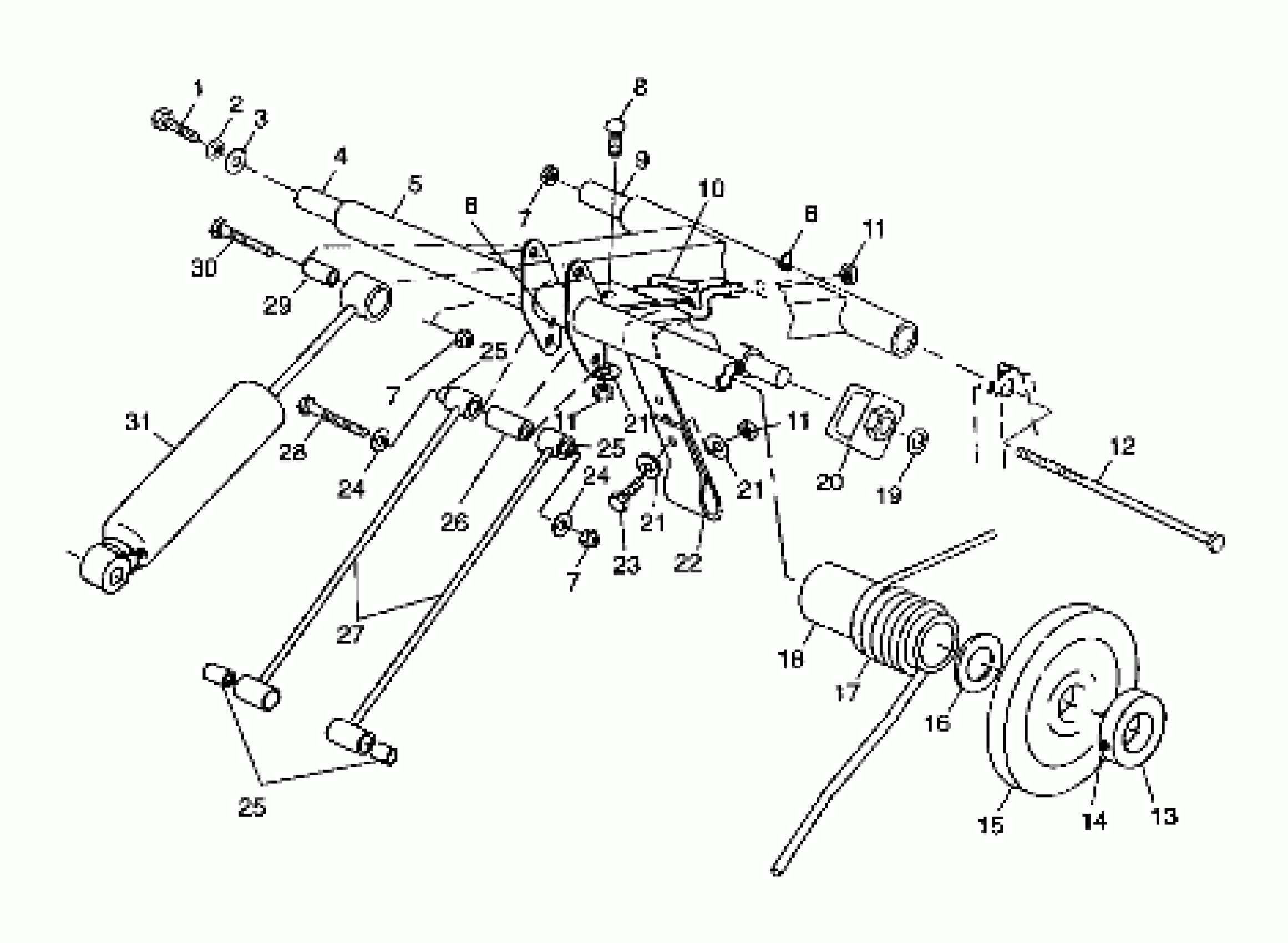

Polaris 500 RMK - 099ER4BS REAR TORQUE ARM - 099ER4BS (4948294829b014) Diagram

SCREW,(10)

WASHER(10)

WASHER(10)

SHAFT,R.TORQUE,UPPER

ARM,R.TORQUE,BLK.

ZERK,FITTING,THREADED(10)

ZERK,FITTING,THREADED(10)

NUT LOCK(10)

NUT LOCK(10)

NUT LOCK(10)

BOLT(10)

Shaft

BOLT,EYE

NUT-5/16-18 NYLOK-Y

NUT-5/16-18 NYLOK-Y

NUT-5/16-18 NYLOK-Y

Screw

SPRING,LH,TORSION,BLK. (.359/77 Degree) Standard

SPRING,RH,TORSION,BLK. (.359/77 Degree) Standard

SPRING-TORSION,.375/77�,LH,BLK (.370/77 Degree) Optional

SPRING-TORSION,.375/77�,RH,BLK (.370/77 Degree) Optional

SPRING-TORSION,.347SQ/77�LHBLK (.342/77 Degree) Optional

SPRING-TORSION,.347/77�,RH,BLK (.342/77 Degree) Optional

COLLAR,BRG.LOCK

SCREW-SET(10)

Wheel, Carrier

WASHER, THRUST(10) Substituted by 7555871

SLEEVE,TORS.SPRING

CLIP-PUSH ON

ROLLER-SPRING,ADJ,SQ,RMK,SKS

WASHER(10)

WASHER(10)

WASHER(10)

STRAP,LIMITER

SCREW(10)

WASHER-.390X.750X.020-WAVE-Y

WASHER-.390X.750X.020-WAVE-Y

BUSHING,PIVOT TUBE

BUSHING,PIVOT TUBE

BUSHING,PIVOT TUBE

Spacer

ROD,SHOCK,(XTRA 10)133

BOLT(10)

BUSHING

BOLT(10) Substituted by 7515492

SHOCK,RR TRK,ADJ,X-10
