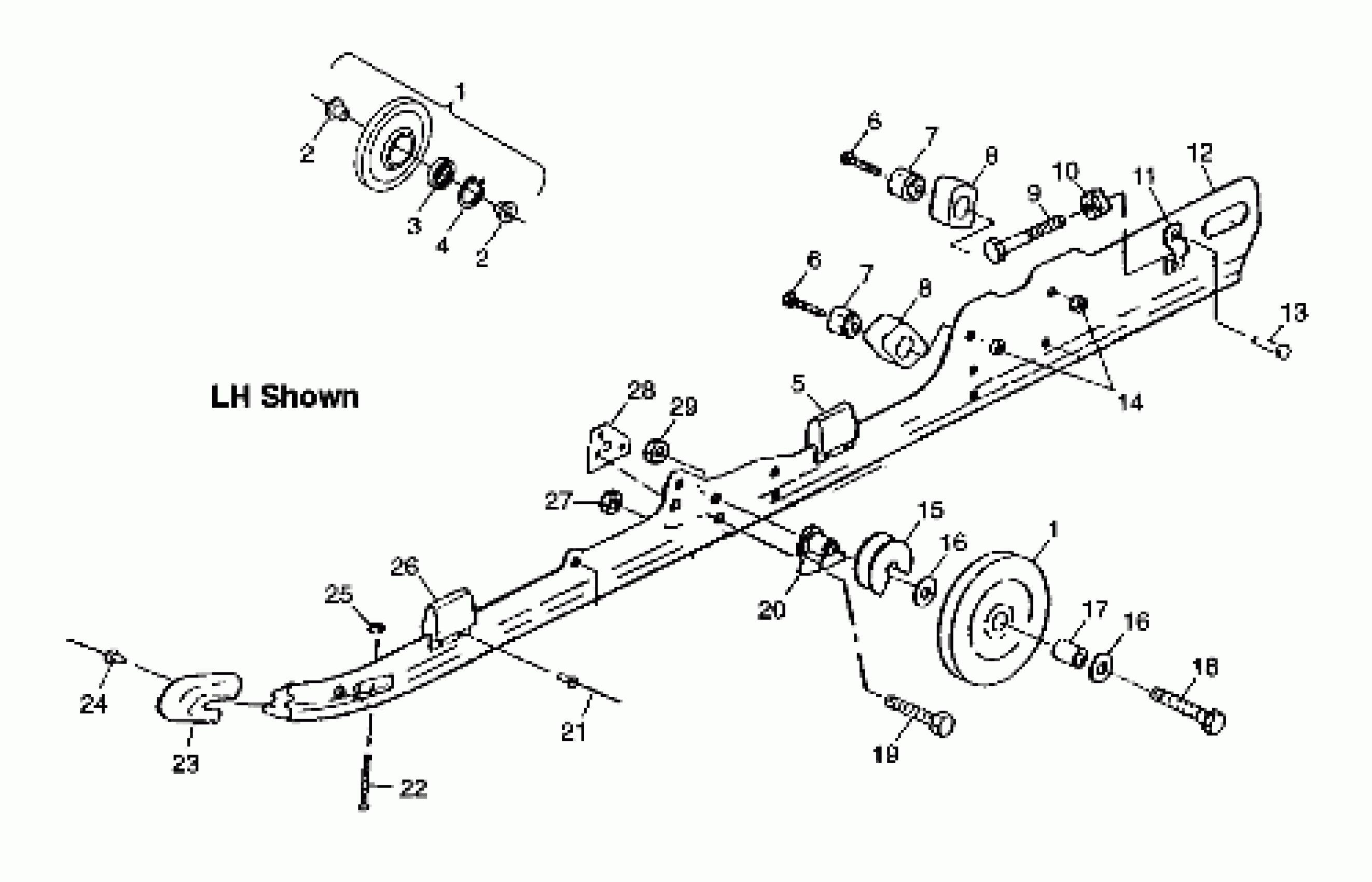

Polaris 500 RMK - 099ER4BS RAIL MOUNTING (SUSPENSION) - 099ER4BS (4948294829b012) Diagram

#

Description
Price

1

WHEEL, IDLER (Incl. 2-4)

1543018

$56.65

1

WHEEL, IDLER (Incl. 2-4)

1543018

$56.65

2

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

2

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

3

BEARING (1 per Wheel)

3514303

$11.99

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

5

REINF., BUMPER

5222629

$13.75

5

BUMPER,SUSPENSION

5811097

Unavailable

6

BOLT,(10)

7515545

$5.59

6

BOLT,(10)

7515545

$5.59

7

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

7

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

8

BUMPER,F.PIVOT ARM

5410925

$12.94

8

BUMPER,F.PIVOT ARM

5410925

$12.94

9

BOLT, ADJUSTER(10)

7515455

$29.99

10

NUT,TENSIONER ADJ.

5020943

$20.22

11

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

12

RAIL ASM,RH,133" (Incl. 5,11,13,21,23,26)

1540947

$339.99

12

RAIL ASM,LH,133" (Incl. 5,11,13,21,23,26)

1540946

$269.55

13

RIVET,(50)

7621501

$2.39

14

NUT LOCK(10)

7542411

$3.19

15

ROLLER,SPRING,SQ. Substituted by 5433575

5433025

Unavailable

16

WASHER, FLAT(10)

7555852

$2.39

16

WASHER, FLAT(10)

7555852

$2.39

17

SPACER, WHEEL

5333116

$7.99

18

BOLT(10)

7512538

$6.39

19

BOLT(10)

7512404

$3.99

20

SPACER

5630399

$11.99

21

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

22

BOLT(10)

7515175

$3.99

23

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

24

RIVET(50)

7621435

$1.49

25

NUT-LOCK(10)

7542122

$1.49

26

REINF., BUMPER

5222629

$13.75

26

BUMPER, RAIL

5810554

$7.27

27

NUT-LOCK(10)

7542439

$1.49

28

PLATE,RAIL SUPPORT

5211798

$8.23

29

NUT, NYLOCK(10)

7542525

$4.79
