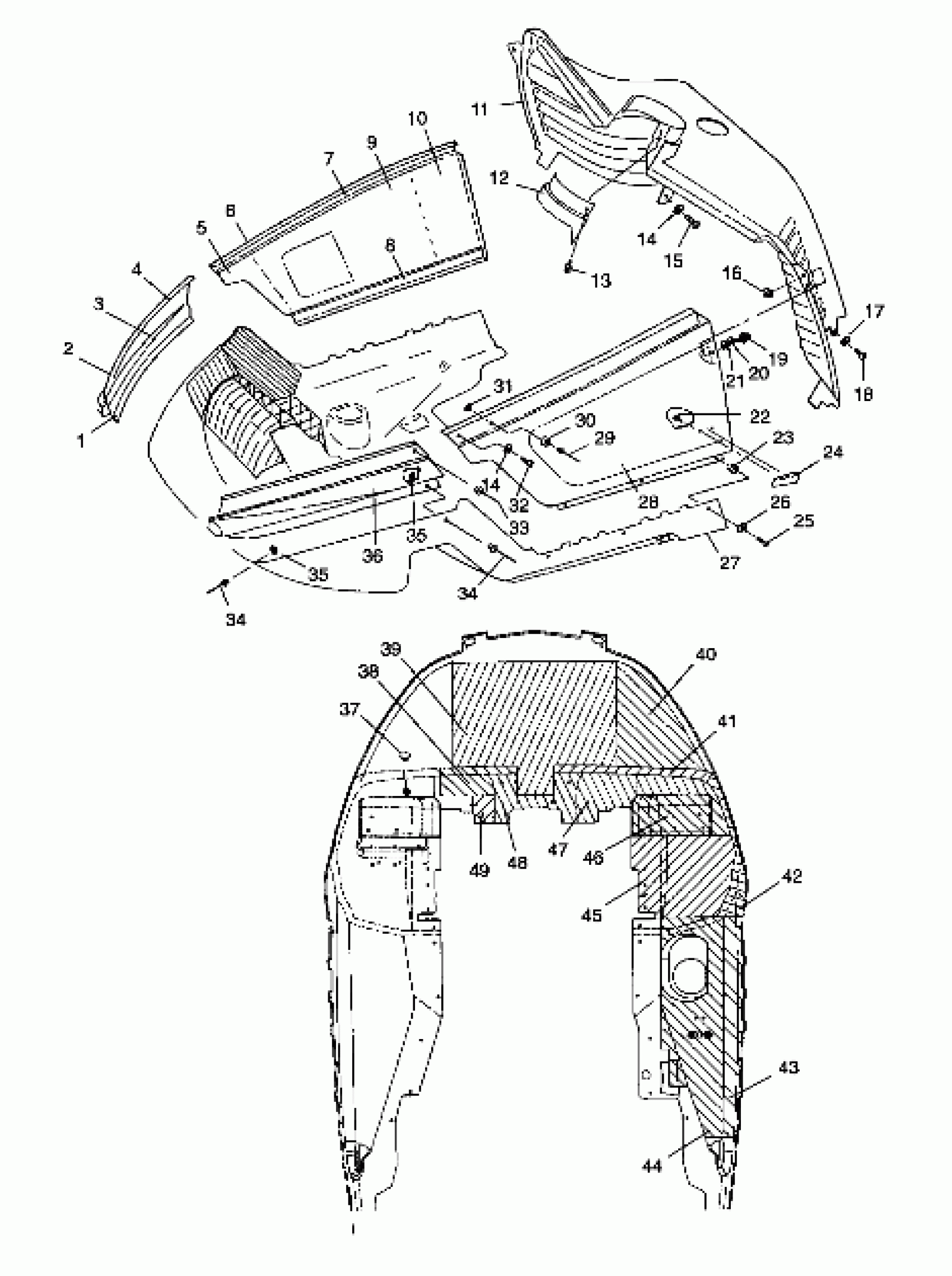

Polaris 500 RMK - 099ER4BS NOSEPAN - 099ER4BS (4948294829a009) Diagram

#

Description
Price

1

FOIL,SIDE BUMP,LOWER

5811085

Unavailable

2

BUMPER,RH,SIDE/FOIL,BLK.MT. (Incl. 1,3,4,)

2610010-177

Unavailable

3

FOIL,SIDE BUMP,MIDDLE

5811086

Unavailable

4

FOIL-SIDE BUMPER-UPPER

5811153

Unavailable

5

FOIL,FR.SIDEPANEL

5811072

Unavailable

6

FOIL,TOP,OUT.SIDEPANEL

5811075

Unavailable

6

FOIL,TOP,INNER,SIDEPANEL

5811074

Unavailable

7

FOIL,UP.SIDEPANEL

5811073

Unavailable

8

FOIL,LOW.SIDEPANEL

5811071

Unavailable

9

FOAM-FOIL,RH,SIDEPANEL

5811070

Unavailable

10

PANEL,RH,SIDE,FOIL,BLK. (Incl. 5-10)

2610008-177

Unavailable

11

CONSOLE,BASIC

5431467

Unavailable

12

COVER,CONSOLE

5431535

$54.35

13

RIVET,PLASTI-LOC.(50)

7621509

$1.49

14

WASHER(10) Substituted by 7558301

7555776

Unavailable

14

WASHER(10) Substituted by 7558301

7555776

Unavailable

15

SCREW(10)

7512252

Unavailable

16

NUT,RETAINER(10)

7542138

Unavailable

17

WASHER(10)

7555792

$4.79

18

SCREW(10)

7512069

Unavailable

19

RETAINER,HOODLATCH

5431502

$12.94

20

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

21

WASHER,RUBBER(10)

7555884

$5.70

22

SCREW(10)

7512068

$2.39

23

NUT-WELL(10)

7541923

$5.59

24

BUMPER,SIDE PANEL

5432456

Unavailable

25

SCREW,(10)

7517230

$1.49

26

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

27

NOSEPAN,EV,STD,BLK

5432652

Unavailable

28

PANEL,LH,SIDE,BLK.MET.

5431742-177

Unavailable

28

FOAM,LH,SIDEPANEL

5811076

Unavailable

29

RIVET(50)

7621315

$3.99

30

BUMPER,RUBBER STOP Substituted by 5411440

5410843

Unavailable

31

RIVET BURR(50)

7555756

$2.99

32

SCREW(10)

7515148

$4.79

33

RIVET(50)

7621472

$1.49

34

RIVET, BLIND(50)

7621467

$1.49

34

RIVET, BLIND(50)

7621467

$1.49

35

BURR,RIVET(50)

7555904

$1.49

35

BURR,RIVET(50)

7555904

$1.49

36

BUMPERSIDE,LH,BLK.

5431492-177

Unavailable

37

PLUG,NOSEPAN HOLE

5410820

$15.99

38

FOIL #8,LH SIDE

5810960

Unavailable

39

FOIL #10,CTR.

5810962

Unavailable

40

FOIL,FRT,RH,#1

5810952

Unavailable

41

FOIL,FR,RH,PAN

5811197

Unavailable

42

FOIL,RH,PANSIDE,#16

5811195

Unavailable

43

FOIL,UPPER,RH,#5

5810956

Unavailable

44

FOIL,LOWER,RH,PAN

5811196

Unavailable

45

FOIL,RH,SHOCK TOWER,LOW.

5811194

Unavailable

46

FOIL,RH,SHOCKTOWER,TOP,#14

5811193

Unavailable

47

FOIL,RH,SHOCKTOWER,#13

5811192

Unavailable

48

FOIL-CENTER, #11

5811187

Unavailable

49

FOIL,LH,SHOCKTOWER,#12

5811188

Unavailable
