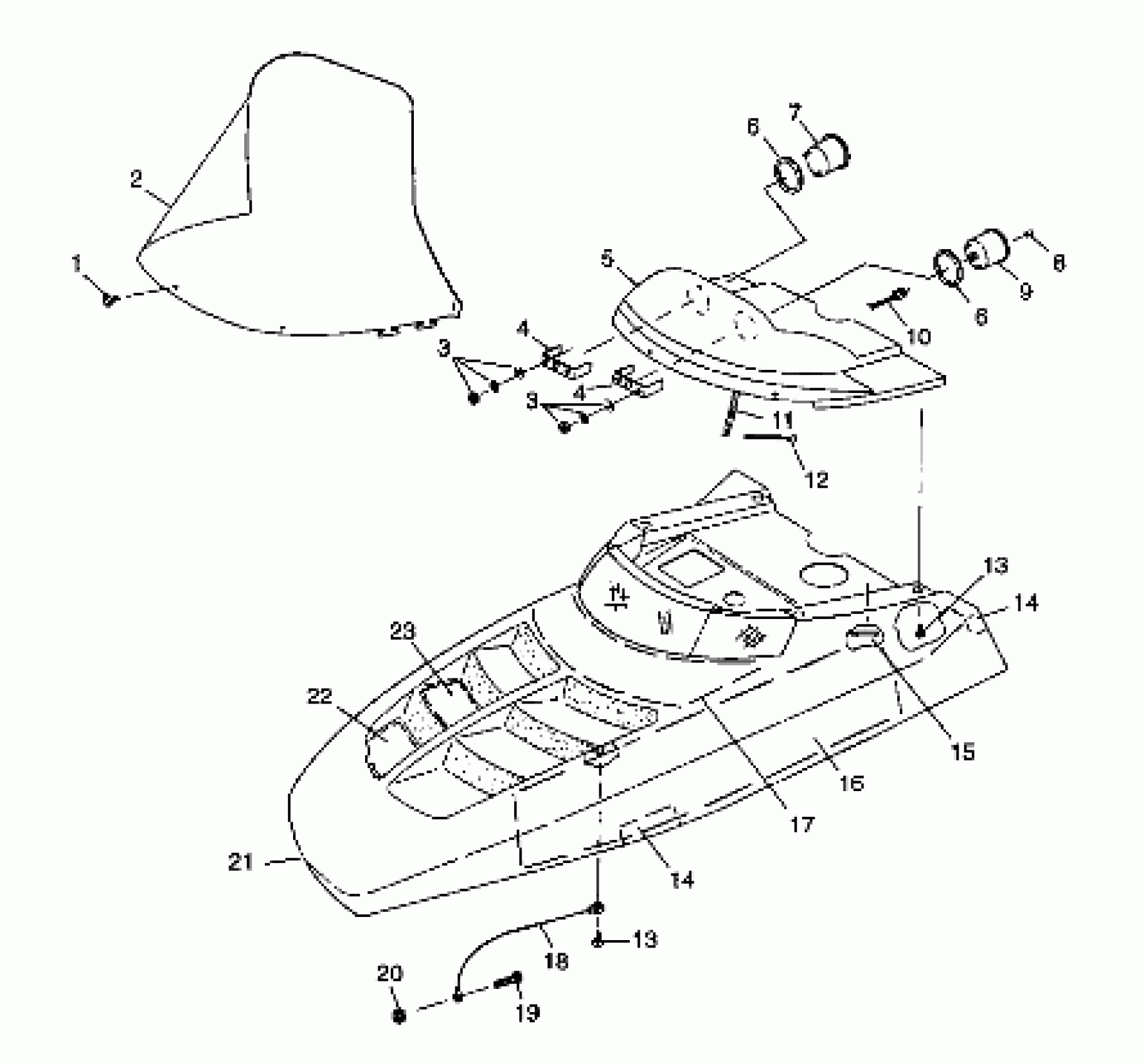

Polaris 500 RMK - 099ER4BS HOOD - 099ER4BS (4948294829a011) Diagram

#

Description
Price

1

RIVET,PLASTI-LOC.(50)

7621509

$1.49

2

W/S,SMOKE,FLRD.STD.

5432388

Unavailable

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

4

BRKT,TACH/SPEEDO,5"

3280210

$28.32

4

BRKT,TACH/SPEEDO,5"

3280210

$28.32

5

HOUSING ASM,INSTR. (Incl. Warning Decals)

2652146

Unavailable

6

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

6

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

7

BULB TAILLIGHT(10)

4030015

$4.03

7

TACH ASM,5",2 PULSE (Incl. 3,4,6)

3280293

Unavailable

8

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

9

BULB TAILLIGHT(10)

4030015

$4.03

9

SPEEDO,BACKLIT (Incl. 3,4,6,8)

3280204

Unavailable

10

CABLE,SPEEDO.

3280094

$60.70

11

HARNESS, H/L

2460529

Unavailable

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

SCREW(10)

7512070

Unavailable

13

SCREW(10)

7512070

Unavailable

14

FOIL,TAPE,1.5X6

5810949

$3.19

14

FOIL,TAPE,1.5X6

5810949

$3.19

15

RETAINER,WINDSHIELD,(10)

5410970

$1.49

16

FOAM,LH,HOOD

5810876

Unavailable

16

FOAM,RH,HOOD

5810877

Unavailable

16

FOIL,RH,HOOD

5810905

Unavailable

17

FOAM,HOOD,CTR.

5810875

Unavailable

18

CABLE,HOOD RETAINER

7080521

$24.27

19

SCREW(10)

7511930

$2.39

20

NUT FLEX LOC(10)

7541906

$3.19

21

HOOD ASM,500 (Incl. Foam & Foil)

2631591-177

Unavailable

22

FOIL,HOOD,FRONT

5810874

Unavailable

23

FOIL,HOOD,CTR.

5810873

Unavailable
