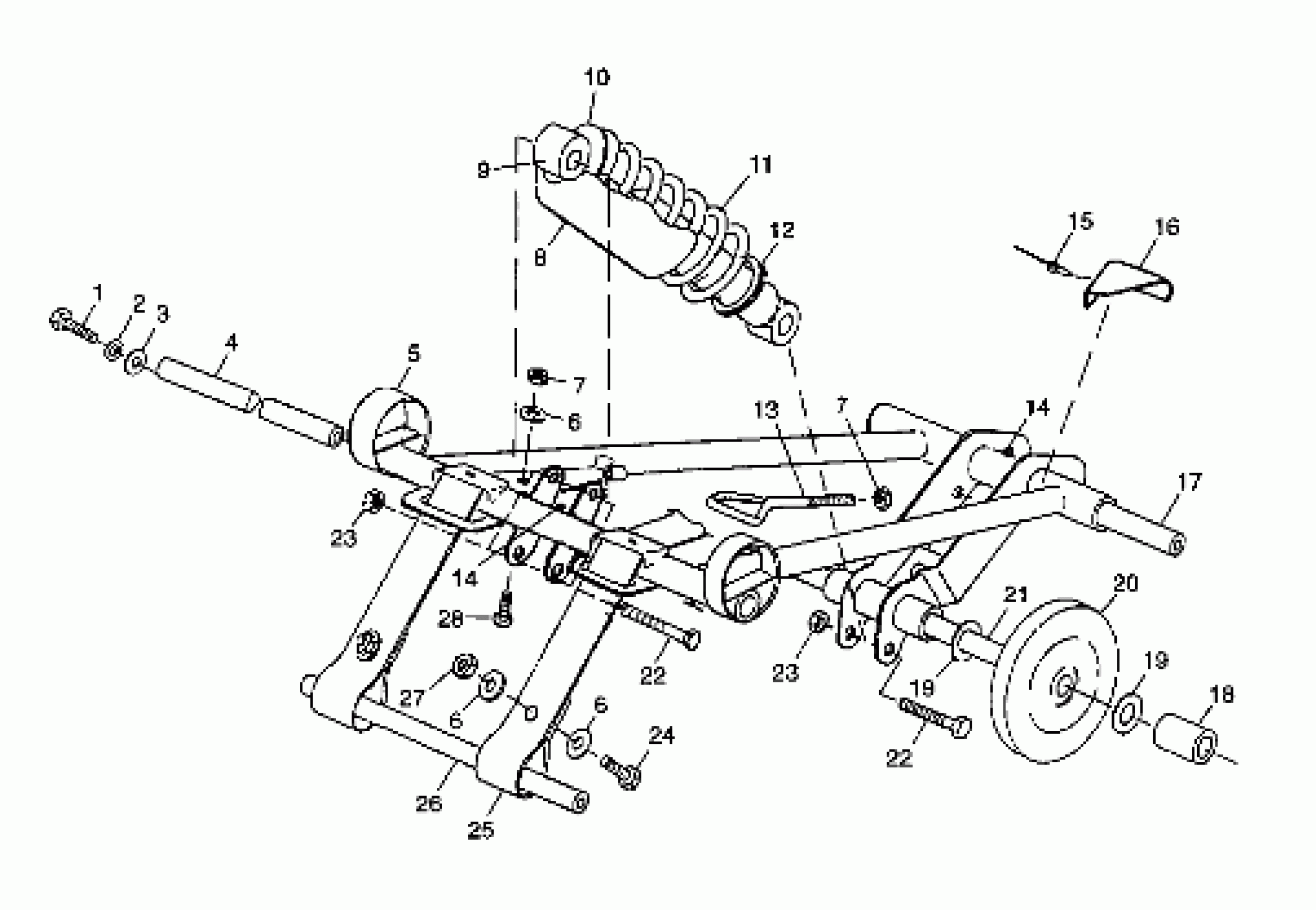

Polaris 500 RMK - 099ER4BS FRONT TORQUE ARM - 099ER4BS (4948294829b013) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

Shaft

5131450

Unavailable

5

ARM,FR.TORQUE,X-10,QA,BLK Substituted by 1541466-067

1541203-067

Unavailable

6

WASHER(10)

7555716

$1.59

6

WASHER(10)

7555716

$1.59

6

WASHER(10)

7555716

$1.59

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

SHIELD-SPRING

5430671

$24.27

9

SHOCK,FRT.TRACK

7041743

Unavailable

10

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

11

SPRING,BLACK,COMP.

7041253-067

$95.22

12

RETAINER,SPRING Substituted by 5245067

5241276-067

Unavailable

13

BOLT,EYE

7010050

Unavailable

14

ZERK,FITTING,THREADED(10)

7080433

$1.49

14

ZERK,FITTING,THREADED(10)

7080433

$1.49

15

RIVET(50)

7621431

$1.49

16

PROTECTOR,LH,TRACK,LWT

5242928

Unavailable

16

PROTECTOR,RH,TRACK,LWT

5242929

Unavailable

17

Shaft (See Footnote) (See Suspension Pg. B11, Ref. 23)

-------

Unavailable

18

SPACER, OUTER

5332784

Unavailable

19

MACHINERY BUSHING(10)

7556301

$3.19

19

MACHINERY BUSHING(10)

7556301

$3.19

20

WHEEL, IDLER

1543018

$56.65

21

Shaft (See Footnote) (See Suspension Pg. B11, Ref. 21)

-------

Unavailable

22

BOLT Substituted by 7515491

7515433

$1.59

22

BOLT Substituted by 7515491

7515433

$1.59

23

NUT LOCK(10)

7542411

$3.19

23

NUT LOCK(10)

7542411

$3.19

24

SCREW ,(10)

7517313

$4.79

25

STRAP,LIMITER,FRONT

5411045

Unavailable

26

Shaft, Pivot Arm (See Footnote) (See Suspension Pg. B11, Ref. 20)

-------

Unavailable

27

NUT,NYLOC,(10)

7542344

$3.99

28

BOLT(10)

7512377

$4.79
