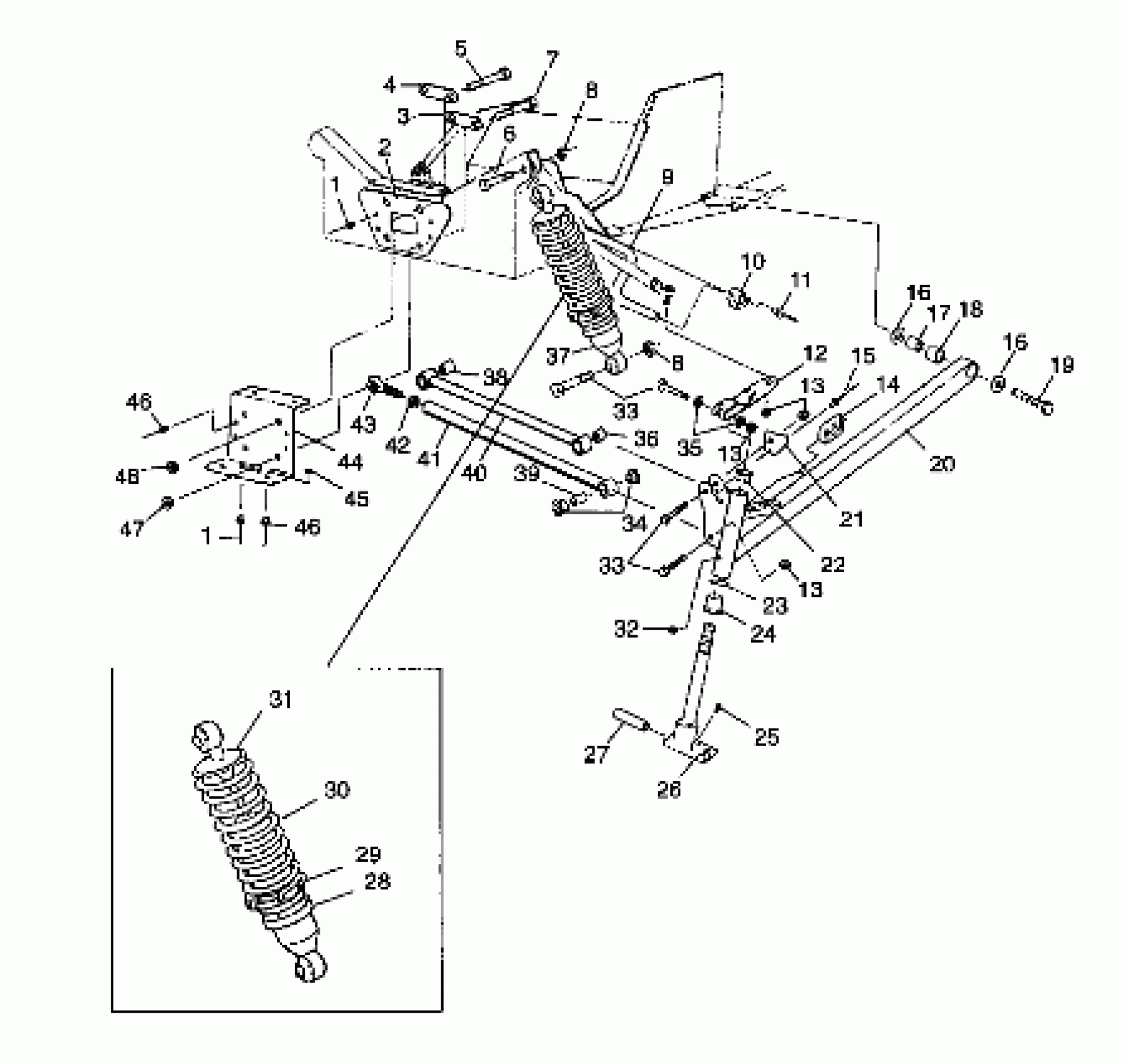

Polaris 500 RMK - 099ER4BS FRONT SUSPENSION - 099ER4BS (4948294829b001) Diagram

#

Description
Price

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

2

BRACE,BLKHD/STRG,BLK.

5211589-067

Unavailable

3

STRAP,SPACER BOTTOM

5211345

$12.99

4

STRAP,SPACER TOP

5211344

$7.27

5

BOLT(10)

7512582

$8.79

6

BOLT(10)

7515415

$1.49

7

BOLT(10)

7512684

Unavailable

8

NUT-LOCK(10)

7542439

$1.49

8

NUT-LOCK(10)

7542439

$1.49

9

BAR,SWAY

5224757-067

Unavailable

10

BUSHING,SWAY BAR

5432412

$15.99

11

RIVET(50)

7621433

$1.49

12

ARM,STRG,BLK

5241560-067

Unavailable

13

NUT LOCK(10)

7542403

$3.99

13

NUT LOCK(10)

7542403

$3.99

13

NUT LOCK(10)

7542403

$3.99

14

SLIDE,SWAYBAR,9/16

5432674

Unavailable

15

RIVET(50) Substituted by 7661130

7661643

Unavailable

16

WASHER(10)

7555721

$1.49

16

WASHER(10)

7555721

$1.49

17

TUBE, BUSHING

5010310

$9.70

18

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

19

BOLT(10)

7512557

$7.60

20

ARM ASM,TRLG,LH Substituted by 1822506-067 (Incl. 17,18)

1822506

$344.99

20

ARM ASM,TRLG,RH Substituted by 1822507-067 (Incl. 17,18)

1822507

Unavailable

21

STOP,LH,STRG,BLK.

5241569-067

$7.27

21

STOP,RH,STRG,BLK.

5241570-067

$7.27

22

BUSHING-FLANGE

3573909

$2.39

23

WASHER SPECIAL(10)

7556509

$1.59

24

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

25

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

26

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

27

BUSHING,PIVOT,(10)

5010158

$19.99

28

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

29

RING,SPRING PRELOAD ADJ.

5431734

$52.60

30

SPRING,COMP,IFS

7041552-067

$44.51

31

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

32

ZERK,FITTING,THREADED(10)

7080433

$1.49

33

BOLT Substituted by 7515491

7515433

$1.59

33

BOLT Substituted by 7515491

7515433

$1.59

34

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

35

WSHR-.813X.406X.105-Y

7555832

$2.39

36

BUSHING,RAD.ROD PIVOT,3/8

5411099

$11.99

37

SHOCK,GAS,IFS

7041544

Unavailable

38

BUSHING,PIVOT,7/16

5411095

$15.99

39

BUSHING-RADIUS ROD,(10)

5010127

$7.99

40

ROD,RAD,UP.,FIXED (Incl. 36,38)

1822420

$119.99

41

ROD,RAD,LOWER,BLK

1822444-067

$60.70

42

NUT-JAM(10)

7542711

$2.39

43

RODEND,1/2,W/LINER,1.05 WIDE Substituted by 7061052

7061027

$48.56

44

BRKT,PANSUPPORT,BLK.

5222866-067

Unavailable

45

BURR,RIVET(50)

7555904

$1.49

46

RIVET, BLIND(50)

7621467

$1.49

46

RIVET, BLIND(50)

7621467

$1.49

47

NUT FLEX,(10)

7542703

Unavailable

48

NUT, LOCK,(10)

7542503

$10.39
