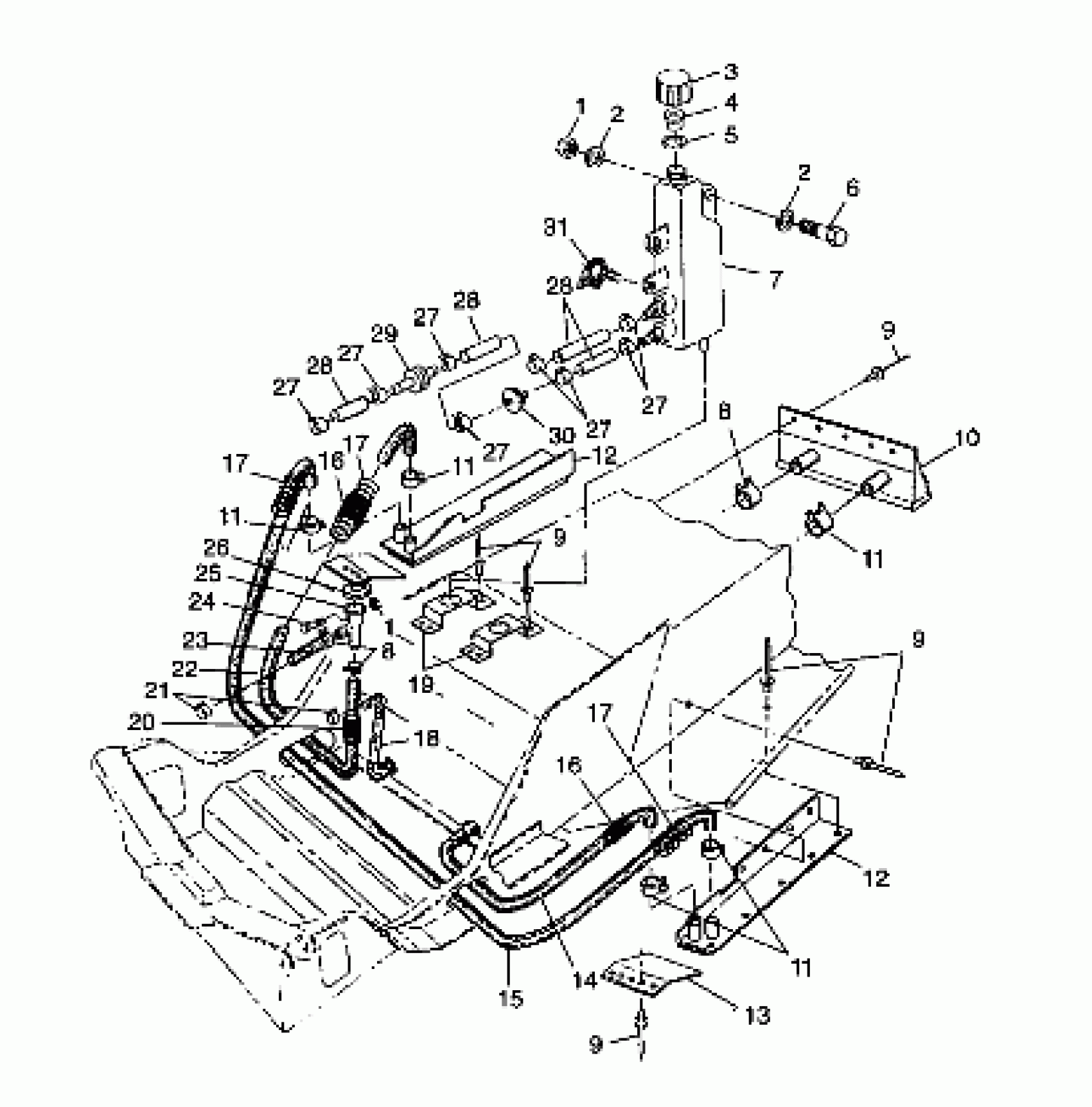

Polaris 500 RMK - 099ER4BS COOLING SYSTEM - 099ER4BS (4948294829b006) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.49

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER,WROUGHT(10)

7558302

$1.59

2

WASHER,WROUGHT(10)

7558302

$1.59

3

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

4

PLUG, OVERFLOW,(10)

5431096

$2.02

5

GASKET-OVERFLOW CAP

5810279

$2.41

6

BOLT(10)

7512240

$3.99

7

BOTTLE,O'FLOW,W/FITTING

5431733

$36.41

8

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

8

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

9

RIVET,INTERLOCK,B(50)

7661638

$1.49

9

RIVET,INTERLOCK,B(50)

7661638

$1.49

9

RIVET,INTERLOCK,B(50)

7661638

$1.49

9

RIVET,INTERLOCK,B(50)

7661638

$1.49

10

EXCHANGER WELD,CTR.

2511225

$204.76

11

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

11

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

11

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

11

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

12

COOLER,LH,SIDE(XTRA 10) Substituted by 1240059

2511257

$144.99

12

COOLER,RH,SIDE(XTRA 10)

2511258

$227.99

12

COOLER,LH,SIDE(XTRA 10) Substituted by 1240059

2511257

$144.99

12

COOLER,RH,SIDE(XTRA 10)

2511258

$227.99

13

GUARD, COOL.EXT.

5222863

$32.99

14

HOSE,LH,SIDE/CTR.

5411114

$17.43

15

HOSE,CROSSOVER

5410557

Unavailable

16

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

16

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

17

SPRING,HOSE RETAINER

7041079

$4.95

17

SPRING,HOSE RETAINER

7041079

$4.95

17

SPRING,HOSE RETAINER

7041079

$4.95

18

HOSE,PUMP/CTR.EXT.

5410743

Unavailable

19

BRKT,OILTANK,COINED

5241334

$9.70

20

TUBING,CONVOL,8"X1"

5411396

$9.70

21

CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842

7080563

Unavailable

22

HOSE,RH,FILLER OUT,EXTRUSION

5411011

Unavailable

23

HOSE,ENG.OUT/FILLER

5411010

$24.27

24

Screw

7517298

$4.79

25

FILLER,REMOTE COOLANT Substituted by 5433364

5431931

Unavailable

26

CAP,PRESS.(19-21 LB.)

2511256

Unavailable

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

28

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

28

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

28

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

29

VALVE, CHECK

7052038

$10.51

30

FILTER,COOLANT,LGE.

2530024

Unavailable

31

CLIP, PLASTIC(10)

4020139

$4.79
