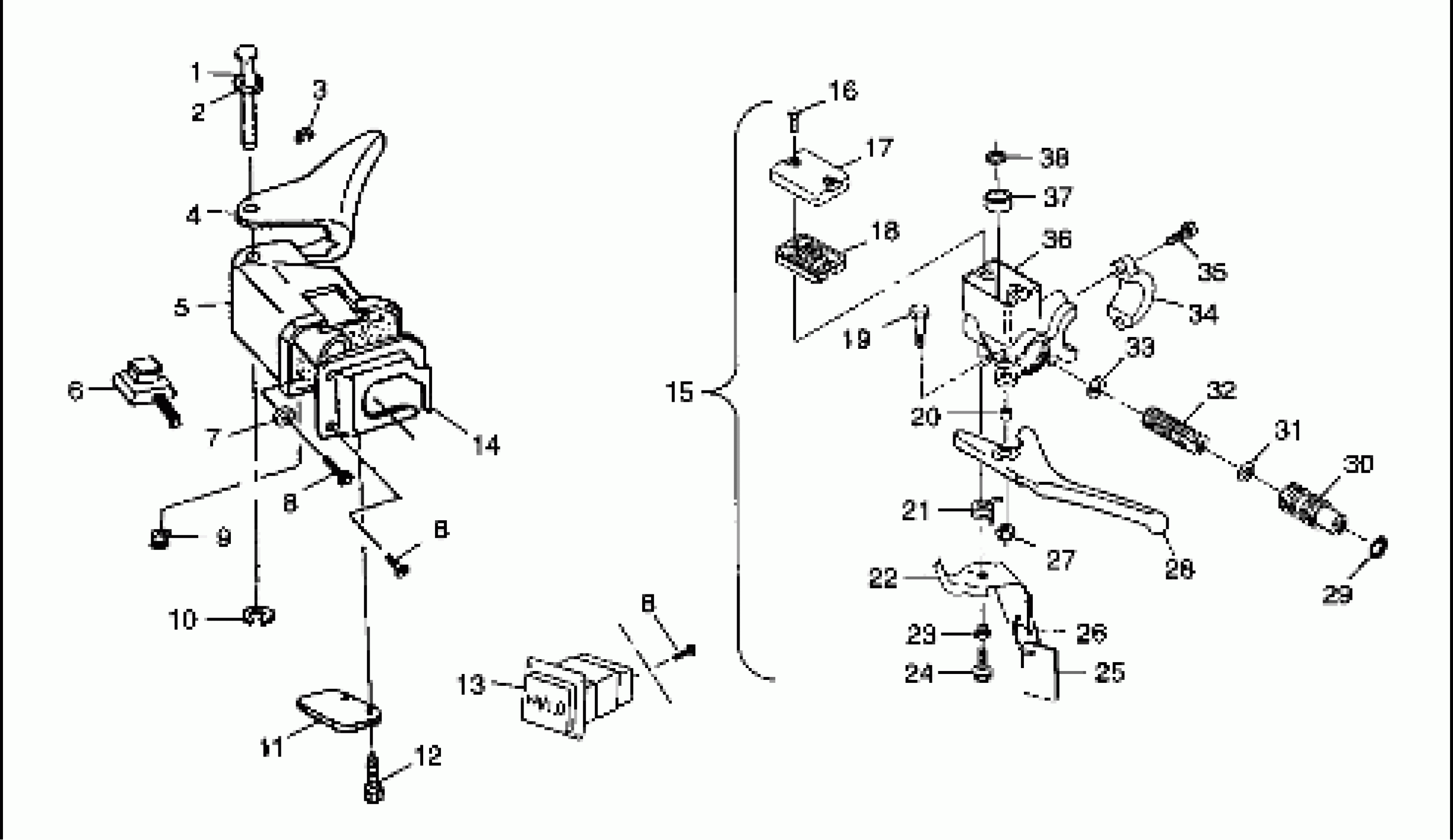

Polaris 500 RMK - 099ER4BS CONTROLS - 099ER4BS (4948294829b007) Diagram

#

Description
Price

1

PIN-RETAINING .186X1.780-AL

7661624

$12.79

2

WASHER(10)

7555730

$3.99

3

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

4

LEVER-THROTTLE

5430652

Unavailable

4

LEVER ASM,HTR.STD 34MM

2010142

Unavailable

5

BLOCK,THROTTLE/BRAKE

5431592

$49.99

6

SWITCH,AUX.SHUT-OFF

4110106

$94.99

7

RIVET BURR(50)

7555727

$1.49

8

SCREW-SEMS(10)

7511848

$3.99

8

SCREW-SEMS(10)

7511848

$3.99

8

SCREW-SEMS(10)

7511848

$3.99

9

SCREW(10)

7512465

$3.99

10

RING-RETAINING EXTERNAL

7710401

$3.99

11

HOLDER-WIRE

5432261

$24.27

12

SCREW(10)

7511858

$3.99

13

SWITCH, DIMMER

4110136

Unavailable

14

BLOCK-ADAPTER

5430604

$13.75

15

MASTER CYL.ASM,3/4",SNOW (Incl. 16-20,27-38)

2050083

Unavailable

16

SCREW,W/WASHER(10)

7512050

$3.99

17

COVER,MASTER CYL.

5630338

Unavailable

18

GASKET,MASTER CYL.

5410527

$8.99

19

BOLT,BRAKE LEVER(10)

7512287

Unavailable

20

BUSHING,BRAKE LEVER

5332931

Unavailable

21

SPRING,PK.BRAKE

7041229

$32.37

22

LEVER,PARK.BRAKE

5240809

Unavailable

23

BUSHING,PK.BRAKE LEVER

5020670

Unavailable

24

SCREW(10)

7511866

$4.79

25

TAG,PARK.BRAKE

5431389

Unavailable

26

STRAP,PARK.BRAKE TAG

7080447

Unavailable

27

NUT-LOCK(10)

7542122

$1.49

28

LEVER,BRAKE

5630847

Unavailable

29

O RING

5410163

$1.60

30

PISTON,MASTER CYL.

5020679

Unavailable

31

U PACKING SEAL

5410164

Unavailable

32

SPRING, MASTERCYL.

7041311

Unavailable

33

WASHER(10)

7555708

$3.99

34

CLAMP, MASTER CYL.

5630342

Unavailable

35

BOLT,SOCKET HEAD(10)

7512290

$4.79

36

HOUSING,MASTERCYL.

5130955

$293.65

37

BAFFLE,MASTER CYL.

1930673

Unavailable

38

WASHER, BAFFLE(10)

1930662

Unavailable
