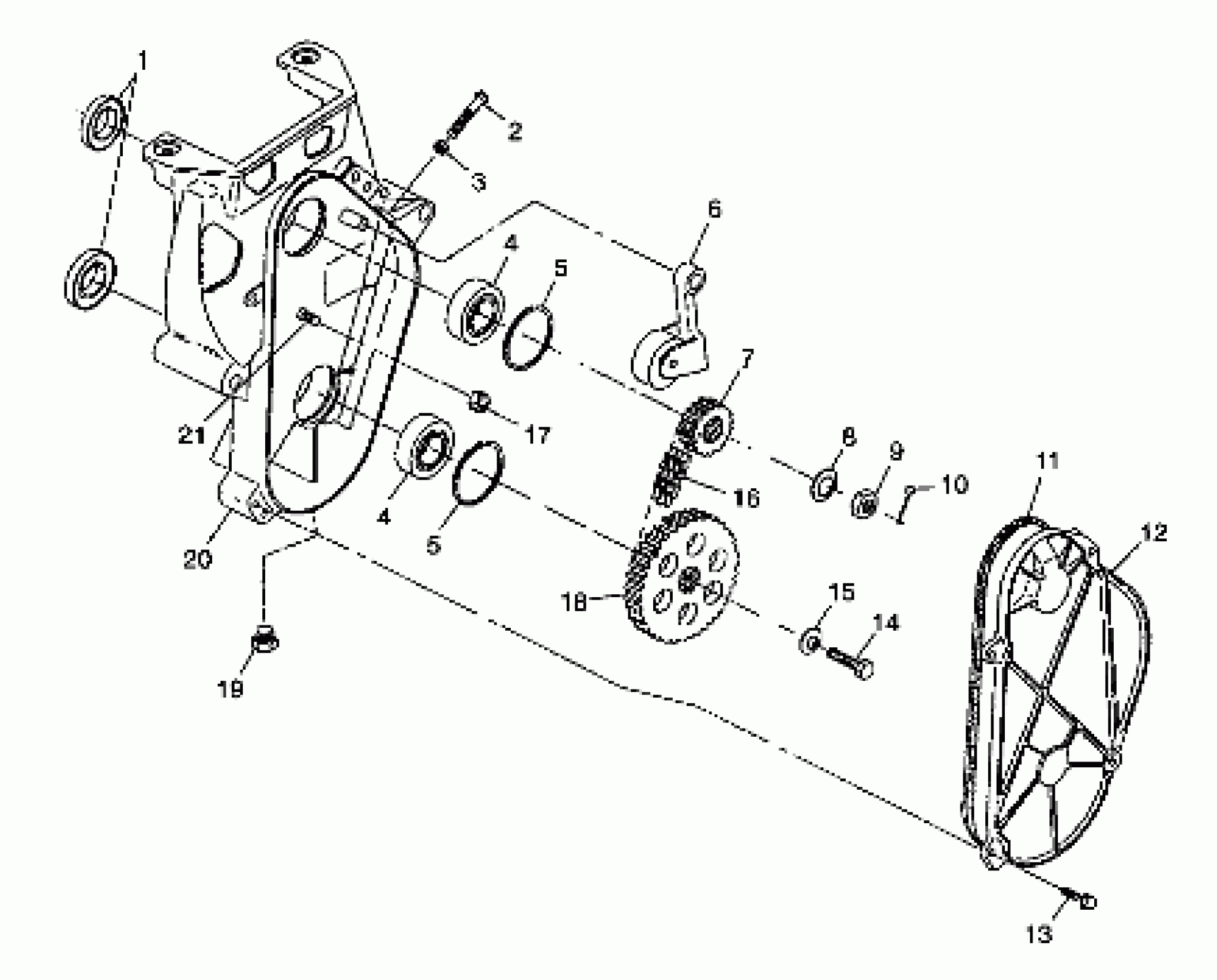

Polaris 500 RMK - 099ER4BS CHAINCASE - 099ER4BS (4948294829b008) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

2

SCREW(10)

7515551

$6.39

3

NUT(10)

7542404

$1.59

4

BEARING,BALL

3514309

$15.87

4

BEARING,BALL

3514309

$15.87

5

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

5

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

PIN,CHAIN TIGHTENER

7662210

Unavailable

6

TIGHTENER ASM,GEARCASE Substituted by 1332213

1332096

$159.99

6

BEARING

3553002

$11.99

6

BLOCK,TIGHTENER [No Longer Available]

5630122

Unavailable

6

WHEEL,C/C IDLER

5630123

Unavailable

6

WASHER THRUST(10)

7558702

$1.59

7

SPKT,17T,3/4W,15 SPL,HV,PM

3221093

$44.99

8

WASHER, SLOTTED(10)

7571620

$7.19

9

NUT

7542811

Unavailable

10

COTTER PIN(10)

7661401

$1.49

11

GASKET-CHAINCASE

5410277

$24.99

12

COVER, CHAINCASE Substituted by 5630968

5630413

Unavailable

13

SCREW(10)

7512242

$2.39

14

SCREW(10)

7515350

$3.97

15

WASHER(10)

7571618

$6.39

16

CHAIN,66P,3/4W,HYVO Substituted by 3221113

3224071

$124.99

17

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

18

SPKT,41T,15T SPL,HYVO,PM

3222101

$40.46

19

PLUG(10)

7052115

$5.65

20

CHAINCASE-W/RATCHET MNT

5131568

Unavailable

21

BOLT(10)

7515477

$34.99
