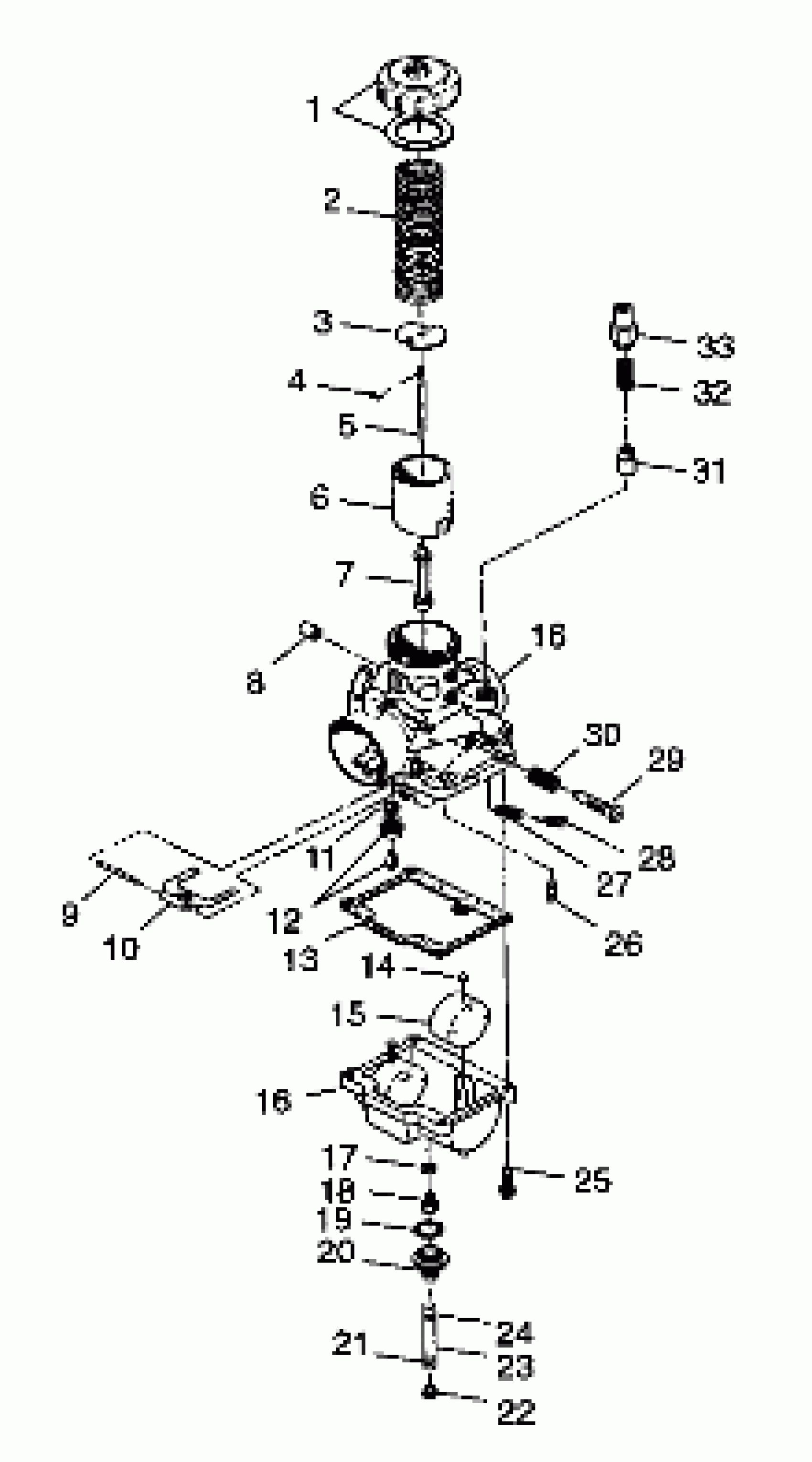

Polaris 500 RMK - 099ER4BS CARBURETOR - 099ER4BS (4948294829c013) Diagram

#

Description
Price

1

TOP ASM (Incl. Gasket)

3130184

$32.37

2

SPRING, THROTTLE

3130318

$20.22

3

PLATE

3130027

$9.70

4

E-RING,(10)

3130508

$6.46

5

JET NEEDLE (6FJ43-2) (6FJ43-2)

3130742

Unavailable

6

VALVE, THROTTLE (2.5)

3130466

Unavailable

7

NEEDLE JET (P-0) (480)

3130743

Unavailable

8

CAP

3130479

$14.56

9

PIN, FLOAT

3130361

$8.89

10

ARM,FLOAT

3130018

$24.27

11

PACKING(10)

3130017

$4.03

12

VALVE,NEEDLE Substituted by 3131146 (1.5)

3130016

$48.56

13

PACKING,FLOAT CHAMBER

3130020

$16.17

14

CAP,(10)

3130237

$4.03

15

FLOAT ASM.

3130430

$43.56

16

CARBURETOR 1 Substituted by 3130741 (MAG) (Incl. 1-20,25-33)

3130943

Unavailable

16

CARBURETOR 2 Substituted by 3130745 (PTO) (Incl. 1-20,25-33)

3130944

Unavailable

16

CARBURETOR 1 Substituted by 3130741 (MAG) (Incl. 1-20,25-33)

3130943

Unavailable

16

CARBURETOR 2 Substituted by 3130745 (PTO) (Incl. 1-20,25-33)

3130944

Unavailable

17

WASHER (10)

3130014

$1.59

18

JET,MAIN,HX.HD#260(10) (#260)

3130129

$7.27

19

O RING

3130239

Unavailable

20

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

21

CLAMP,HOSE(10)

7080544

Unavailable

22

PLUG,TRAP

5431893

$12.94

23

FUEL LINE, 5 FT.

8450045-153

Unavailable

24

CLAMP,SPRING,(10)

7080534

$1.59

25

SCREW & WASHER(10)

3130025

$3.19

26

JET,PILOT,#55(10) (#55)

3130070

$8.89

27

SPRING,AIR ADJUST

3130012

$8.89

28

SCREW,AIR

3130011

$19.99

29

SCREW,THROTTLE STOP

3130009

$19.99

30

SPRING,THROTTLE ADJ.

3130010

$8.89

31

PLUNGER ASM, STARTER

3130328

$32.37

32

SPRING,PLUNGER

3130006

$8.89

33

HOLDER,GUIDE

3130199

$28.32
