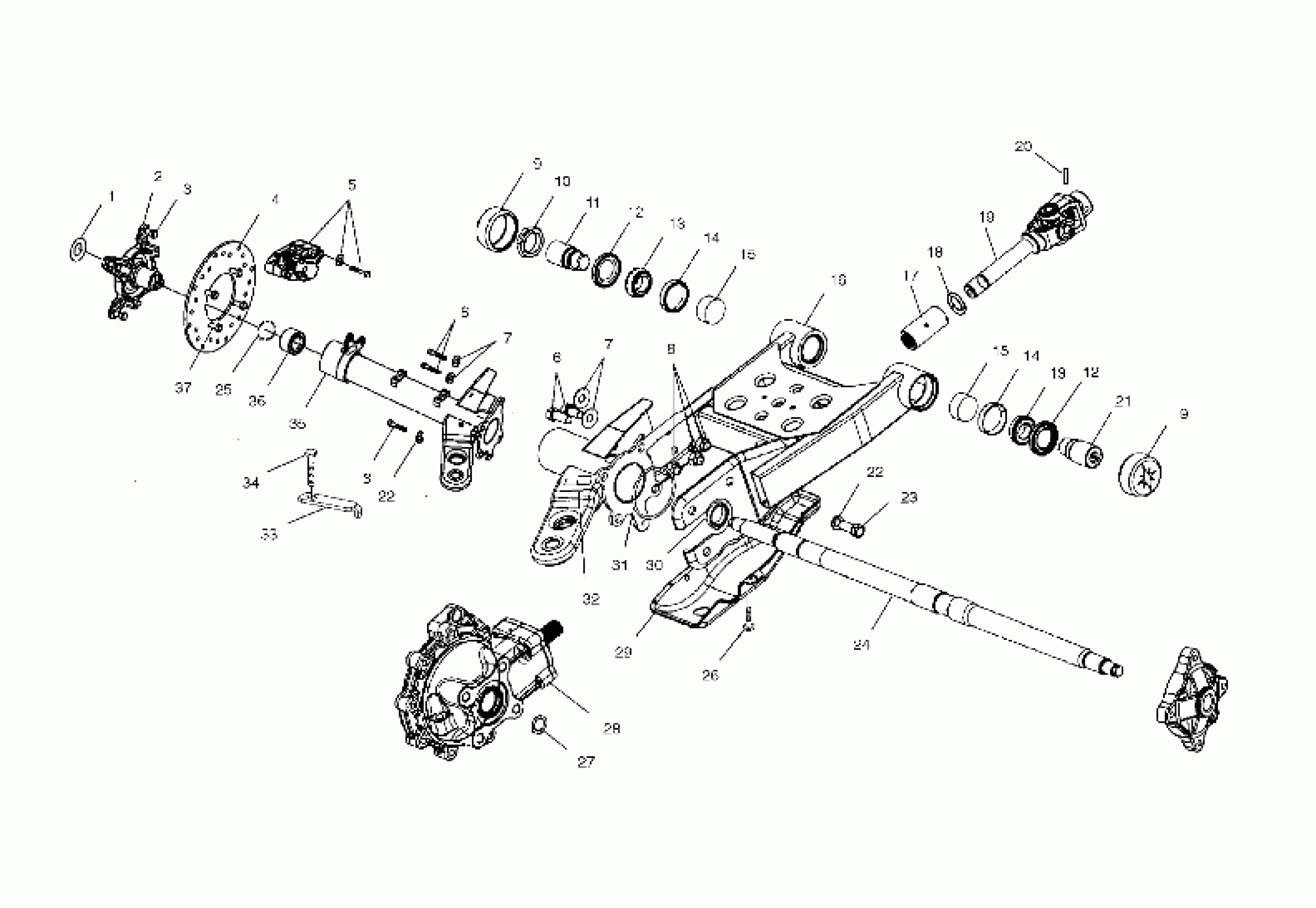

Polaris 500 MAGNUM VL HDS - A02CD50FB SWING ARM/REAR GEARCASE MOUNTING - A02CD50AA/AB/FB (4970197019D03) Diagram

#

Description
Price

1

O-RING-0.739X0.879X0.070

5412022

Unavailable

2

HUB,WHEEL,4WD,MACH

5131935

Unavailable

3

STUD(10)

7515523

$3.19

4

DISC-BRAKE,REAR,8.125X.188

5244882

$94.99

5

WASHER(10)

7552603

$1.49

5

CALIPER ASM,BRAKE,DH4P

1910425

Unavailable

5

BOLT(10)

7515481

$2.63

6

Bolt

7517604

Unavailable

6

Bolt

7517604

Unavailable

6

Bolt

7517604

Unavailable

7

WASHER(10)

7555721

$1.49

7

WASHER(10)

7555721

$1.49

8

Nut, Nylon

7547065

$3.99

9

CAP,SWINGARM PIVOT

5411532

Unavailable

9

CAP,SWINGARM PIVOT

5411532

Unavailable

10

NUT,JAM,SWINGARMPIVOT

5131863

Unavailable

11

PIVOT,SWINGARM,THREADED

5131864

Unavailable

12

SEAL,SWINGARM PIVOT

3610072

Unavailable

12

SEAL,SWINGARM PIVOT

3610072

Unavailable

13

BRG,TAPER.ROLL.CONE

3554506

$31.99

13

BRG,TAPER.ROLL.CONE

3554506

$31.99

14

BRG,TAPER,ROLL CUP

3554507

$31.99

14

BRG,TAPER,ROLL CUP

3554507

$31.99

15

SEAL-SWINGARM PIVOT

5411602

Unavailable

15

SEAL-SWINGARM PIVOT

5411602

Unavailable

16

SWINGARM,ASM. (Incl. 14,15)

1541577

$243.16

17

ZERK,FITTING,THREADED(10)

7080433

$1.49

17

COUPLING-PROP SHAFT,GREASED

5132201

$59.99

18

O-RING

5411092

$1.60

19

PROPSHAFT ASM,REAR

1380137

$204.99

20

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

21

PIVOT-SWINGARM,RH

5132683

Unavailable

22

LOCK WASHER(10)

7553201

$3.99

22

LOCK WASHER(10)

7553201

$3.99

23

BOLT-1/2-13X1 1/4 HXHD GR5-Z

7517585

$4.79

24

AXLE-REAR

5132699

Unavailable

25

RING,RET.,2.500 INTERNAL

7710507

$2.39

26

Screw

7517612

Unavailable

27

O-Ring

5411531

Unavailable

28

Asm. Gearcase Rear (See Rear Housing Pg. C12 for Details) (See Rear Housing Pg. C12 for Details)

-------

Unavailable

29

SKID PLATE,REAR

1012881

$58.39

29

PLATE-SKID,REAR HOUSING,BLK

5242851-067

$19.83

29

PAD-RUBBER

5811716

Unavailable

30

COLLAR-AXLE LOCK

5132698

Unavailable

31

O-Ring

5411707

Unavailable

32

DECAL-HITCH (1225)

7078261

Unavailable

33

CLAMP-BRAKE LINE,REAR

5245050

$1.75

34

SCREW(10)

7512017

$4.79

35

AXLE,TUBE,LH,BLK,VL

1013264-067

Unavailable

36

BEARING,HUBSTRUT,VISCO

3514342

Unavailable

37

BOLT(10)

7512325

$2.39
