REAR HOUSING - A02CD50AA/AB/FB (4970197019C12)

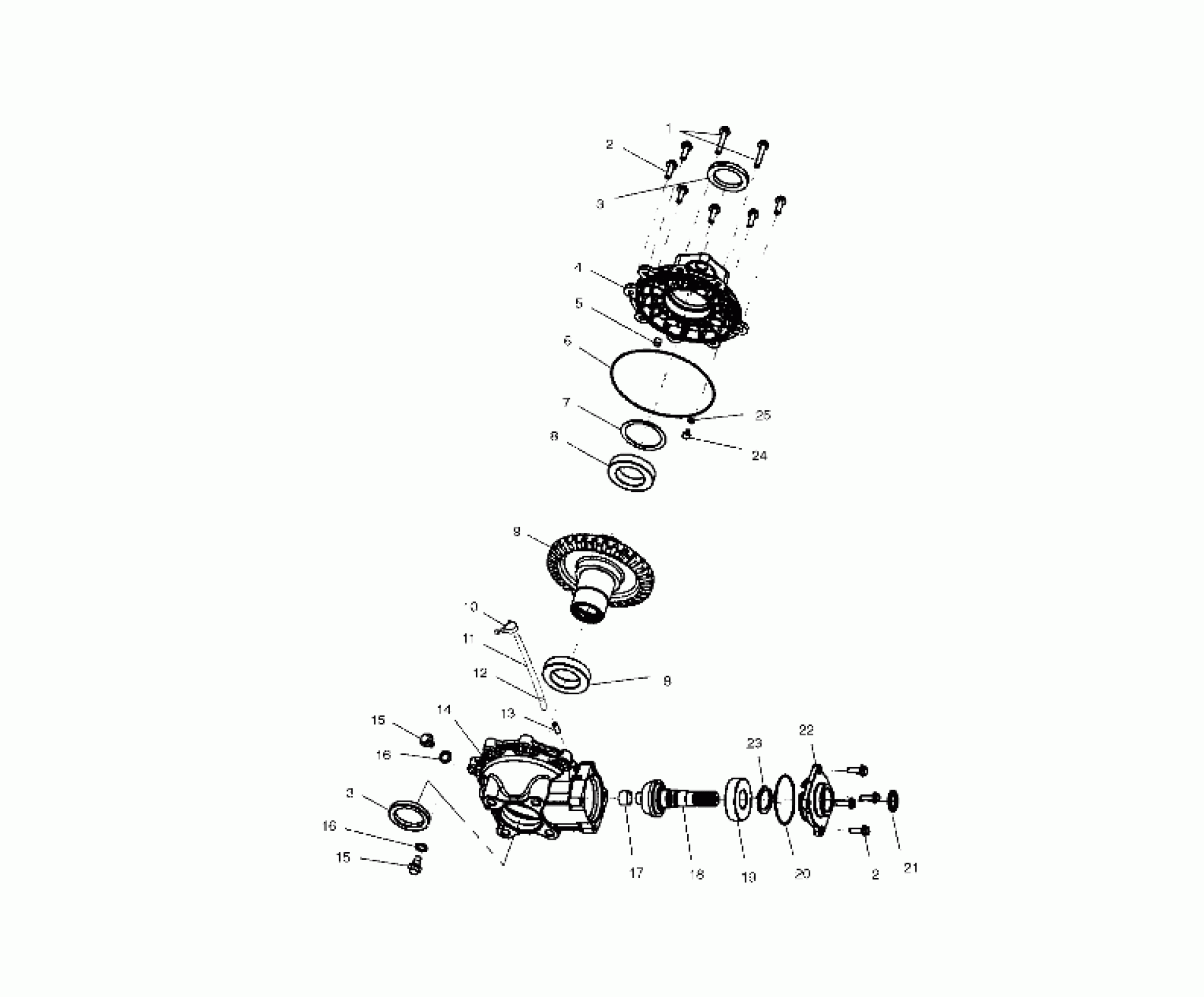

Polaris 500 MAGNUM VL HDS - A02CD50FB REAR HOUSING - A02CD50AA/AB/FB (4970197019C12) Diagram
#
Description
Price
-
GEARCASE,ASM,REAR (Incl. 1-9,13-25)
1341342
Unavailable
1
Screw
3233585
Unavailable
2
Screw
3233252
$5.27
2
Screw
3233252
$5.27
3
Seal
3233256
Unavailable
3
Seal
3233256
Unavailable
4
COVER-OUTPUT,REAR HOUSING
3233753
$229.37
5
PIPE,KNOCK
3233529
$7.99
6
O-RING 166
3233587
$32.37
7
SHIM 3.1 X 2.5
3233581
Unavailable
8
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
$51.99
8
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
$51.99
9
GEAR,31T
3233740
Unavailable
10
CLIP,SILENCER,(10)
7670102
$2.39
11
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
12
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
13
TUBE,VENT
3233524
$7.19
14
GEARCASE,REAR HOUSING
3233739
Unavailable
15
PLUG,OIL FILL
3233711
Unavailable
15
PLUG,OIL FILL
3233711
Unavailable
16
Washer
3233324
$8.99
16
Washer
3233324
$8.99
17
Bushing
3233577
$19.99
18
SHAFT-PINION,10T
3233768
Unavailable
19
BEARING-BALL
3233714
$31.99
20
O-RING 151
3233588
$10.55
21
Seal
3233319
$27.99
22
GEARCASE,COVER
3233573
Unavailable
23
RING-RETAINING
3233699
$7.19
24
THRUST BUTTON
3233582
$7.91
25
SHIM .450 X .265
3233583
Unavailable
