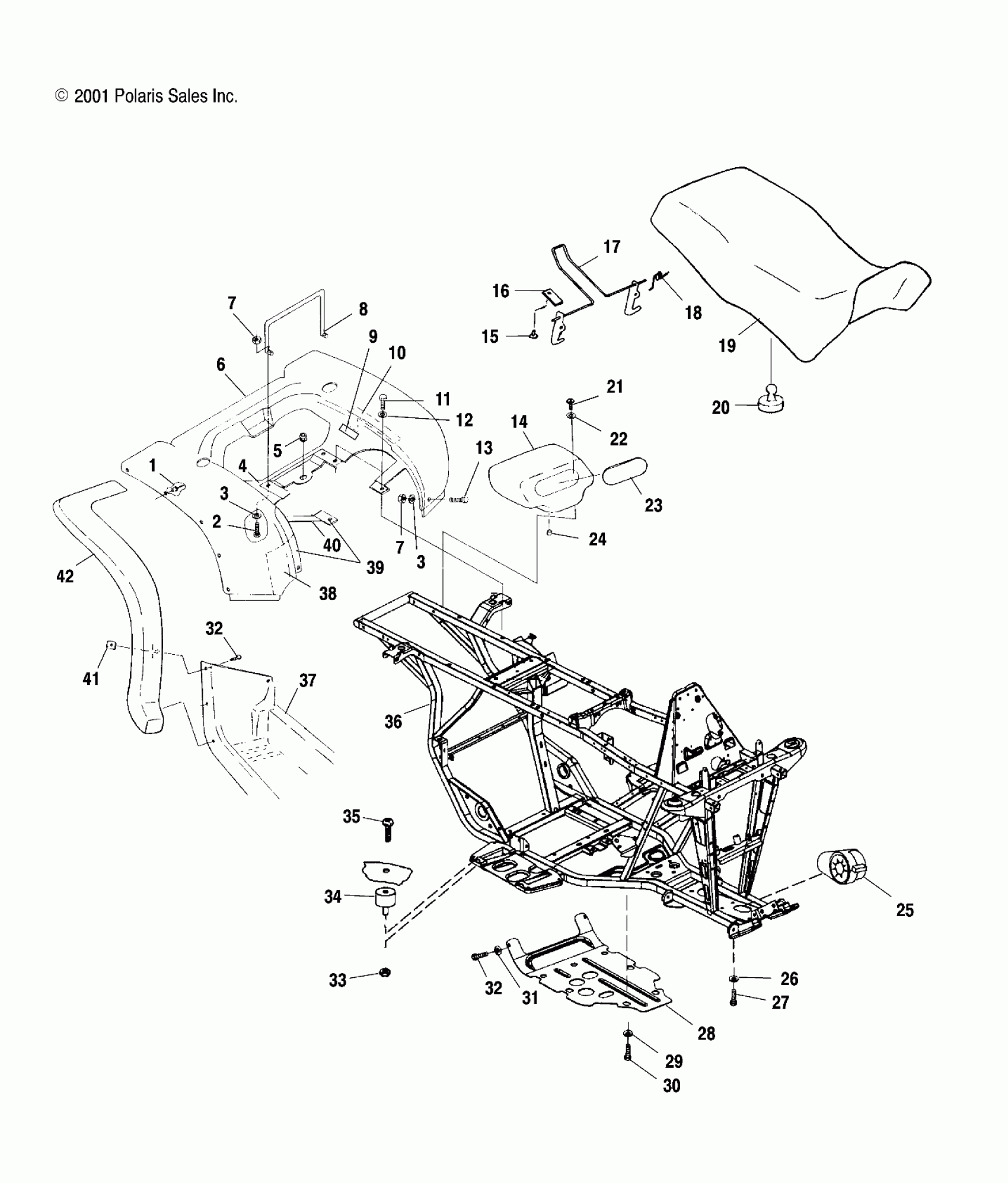

Polaris 500 MAGNUM VL HDS - A02CD50FB REAR CAB and SEAT - A02CD50AA/AB/FB(4970197019A03) Diagram

#

Description
Price

1

RIVET(50)

7661645

Unavailable

2

SCREW(10)

7511930

$2.38

3

WASHER(10)

7555792

$4.76

3

WASHER(10)

7555792

$4.76

4

FOIL,REAR CAB,REAR

5811107

Unavailable

5

Grommet

5411042

$6.35

6

CAB-REAR,GEN 4,GUNMETAL

5432117-317

Unavailable

7

NUT(10)

7541925

$0.79

7

NUT(10)

7541925

$0.79

8

RETAINER,SEAT LATCH

5224592

Unavailable

9

DECAL-4 STRK,CARB/FILTER INFO

7079902

Unavailable

10

FOIL,TAPE,3 X 12

5811308

$12.94

11

SCREW(10)

7512242

$2.38

12

WASHER, FLAT(10)

7555859

$1.19

13

SCREW(10) Substituted by 7511989

7512085

Unavailable

14

TOOLBOX

5431786

$53.17

15

BLIND RIVET(50)

7621403

$1.19

16

BRACKET,LEVER RETAINER

5211033

$34.99

17

LATCH,SEAT

1040387

$48.56

18

SPRING, LATCH

7041370

$9.52

19

COVER,SEAT,BLK.

2682958-070

$149.75

19

SEAT,BLK

2682441-070

$445.22

19

FOIL,SEATBASE,LG.

5811104

Unavailable

19

FOIL,SEATBASE,SM.

5811105

$9.84

20

BUMPER-RUBBER

5412067

$3.97

21

Screw

7517375

$1.19

22

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

23

COVER, TOOLBOX

5431787

Unavailable

24

CAP,DRAIN

5410896

$5.65

25

ASM., GEARCASE (See Front Housing Page for Details) (See Front Housing Page for Details)

----

Unavailable

26

WASHER(10)

7552603

$0.79

27

SCREW(10)

7512492

$1.19

28

GUARD-ROCK

5433435

Unavailable

29

WASHER-SKID PLATE

7556065

$4.76

30

SCREW,(10)

7517386

$1.19

31

WASHER(10)

7558301

$1.19

32

BOLT(10)

7512232

$1.19

32

BOLT(10)

7512232

$1.19

33

NUT-LOCK(10)

7542122

$1.19

34

MOUNT,RUBBER

5411548

$28.32

35

Screw

7517264

$3.97

36

WELD-MAIN FRAME 4X4 MAG,BLK (AA)(FB)

1013597-067

Unavailable

36

FRAME,MAIN 4X4 MAG,BLK (AB)

1013263-067

Unavailable

37

Footwell, RH, Black

5433219-070

$230.70

37

Footwell, LH, Black

5432623-070

$230.70

38

FOIL FOAM

5811111

Unavailable

39

FOIL,FR,REAR CAB

5811106

Unavailable

40

FOIL-FOAM,(6X1)

5811087

Unavailable

41

NUT, SPEED(10)

7670057

$1.19

42

WASHER,NYLON(10)

7555916

$1.59

42

GUARD-MUD,REAR,LH,BLK

5431796-070

Unavailable

42

GUARD-MUD,REAR,RH,BLK

5431797-070

Unavailable

42

KIT-MUDSKIRT,FULLSET,GEN IV [Item NotAvailable] (FB)

2873213

Unavailable
