Description

Price

1

COIL ASM,IGNITION (Incl. 12)

3084690

Unavailable

1

COIL,IGNITION

3084979

Unavailable

2

CAP, SPARKPLUG *

3084980

$59.99

3

SPARKPLUG, BKR5E(4)

3070175

$3.99

4

O-RING

3084978

$35.99

5

BEARING, METAL

3084972

Unavailable

6

ASM-PLATE (Incl. 5,6,8-12,14)(S# 02-02358 and higher)

3087167

Unavailable

6

ASM-PLATE (Incl. 5,6,8-12,14)(through S# 02-02357)

3086980

Unavailable

6

Plate

3086981

Unavailable

7

BOLT&WASHER ASM.

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

STATOR (Incl. 13)(S# 02-02358 and higher)

3087168

Unavailable

9

STATOR (Incl. 13)(through S# 02-02357)

3086984

Unavailable

10

SCREW & WASHER

3086985

Unavailable

11

Band, Pulse

3085554

Unavailable

12

SCREW&WASHER ASM.

3084976

Unavailable

13

COIL,PULSER

3085360

Unavailable

14

SCREW&WASHER ASM(10)

3081256

$3.19

15

CDI-SYSTEM (S# 02-02358 and higher)

3087169

Unavailable

15

CDI-SYSTEM (through S# 02-02357)

3086982

Unavailable

16

Nut

3083073

$2.39

17

WASHER SPRING(10)

3080077

$2.39

18

SWITCH,MAGNETIC *

3087196

Unavailable

19

FLYWHEEL (S# 02-02358 and higher)

3087166

Unavailable

19

FLYWHEEL (through S# 02-02357)

3086983

Unavailable

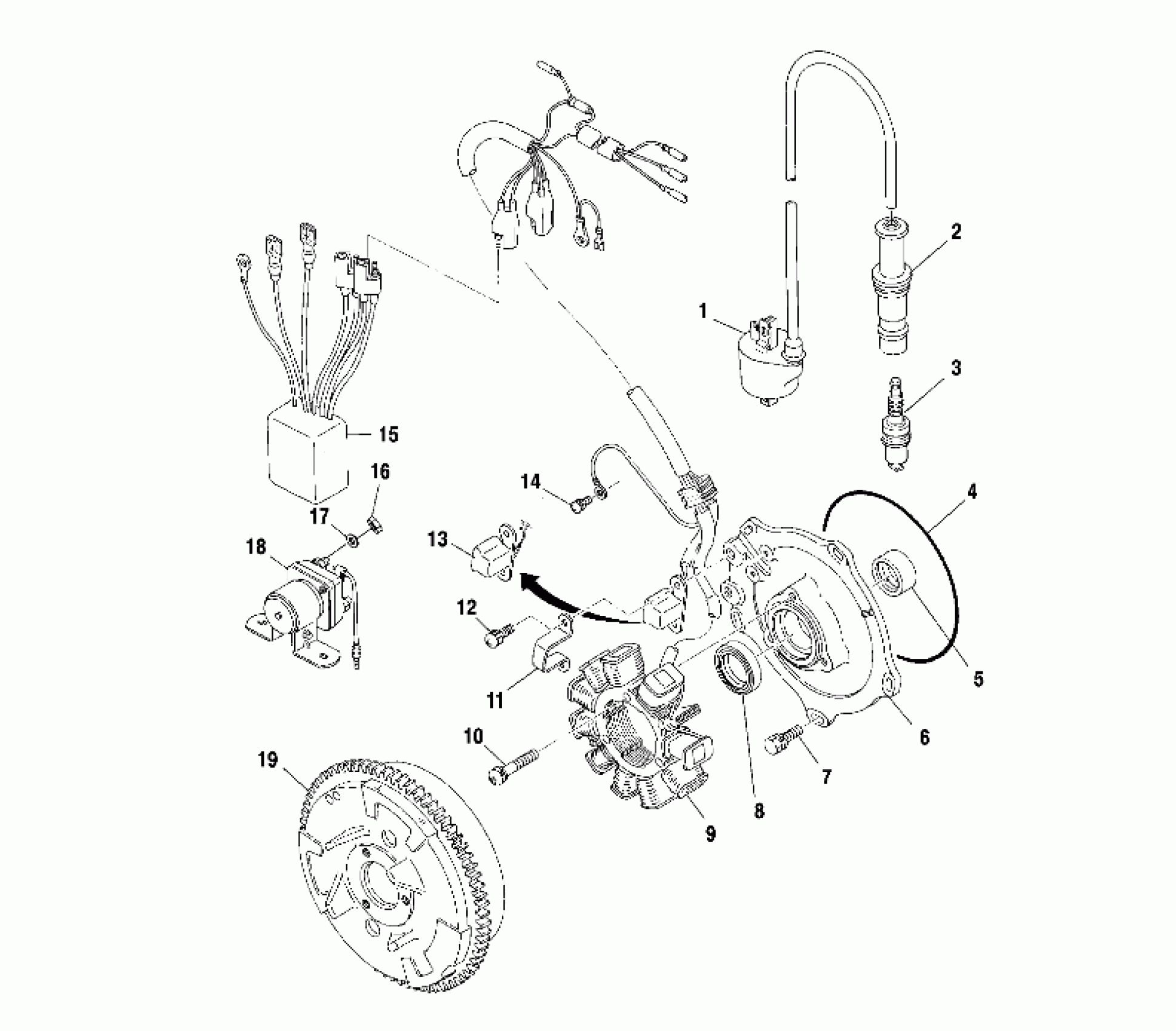

Polaris 500 MAGNUM VL HDS - A02CD50FB MAGNETO - A02CD50AA/AB/FB (4970197019E03) Diagram

COIL ASM,IGNITION (Incl. 12)

COIL,IGNITION

CAP, SPARKPLUG *

SPARKPLUG, BKR5E(4)

O-RING

BEARING, METAL

ASM-PLATE (Incl. 5,6,8-12,14)(S# 02-02358 and higher)

ASM-PLATE (Incl. 5,6,8-12,14)(through S# 02-02357)

Plate

BOLT&WASHER ASM.

SEAL, OIL

STATOR (Incl. 13)(S# 02-02358 and higher)

STATOR (Incl. 13)(through S# 02-02357)

SCREW & WASHER

Band, Pulse

SCREW&WASHER ASM.

COIL,PULSER

SCREW&WASHER ASM(10)

CDI-SYSTEM (S# 02-02358 and higher)

CDI-SYSTEM (through S# 02-02357)

Nut

WASHER SPRING(10)

SWITCH,MAGNETIC *

FLYWHEEL (S# 02-02358 and higher)

FLYWHEEL (through S# 02-02357)
