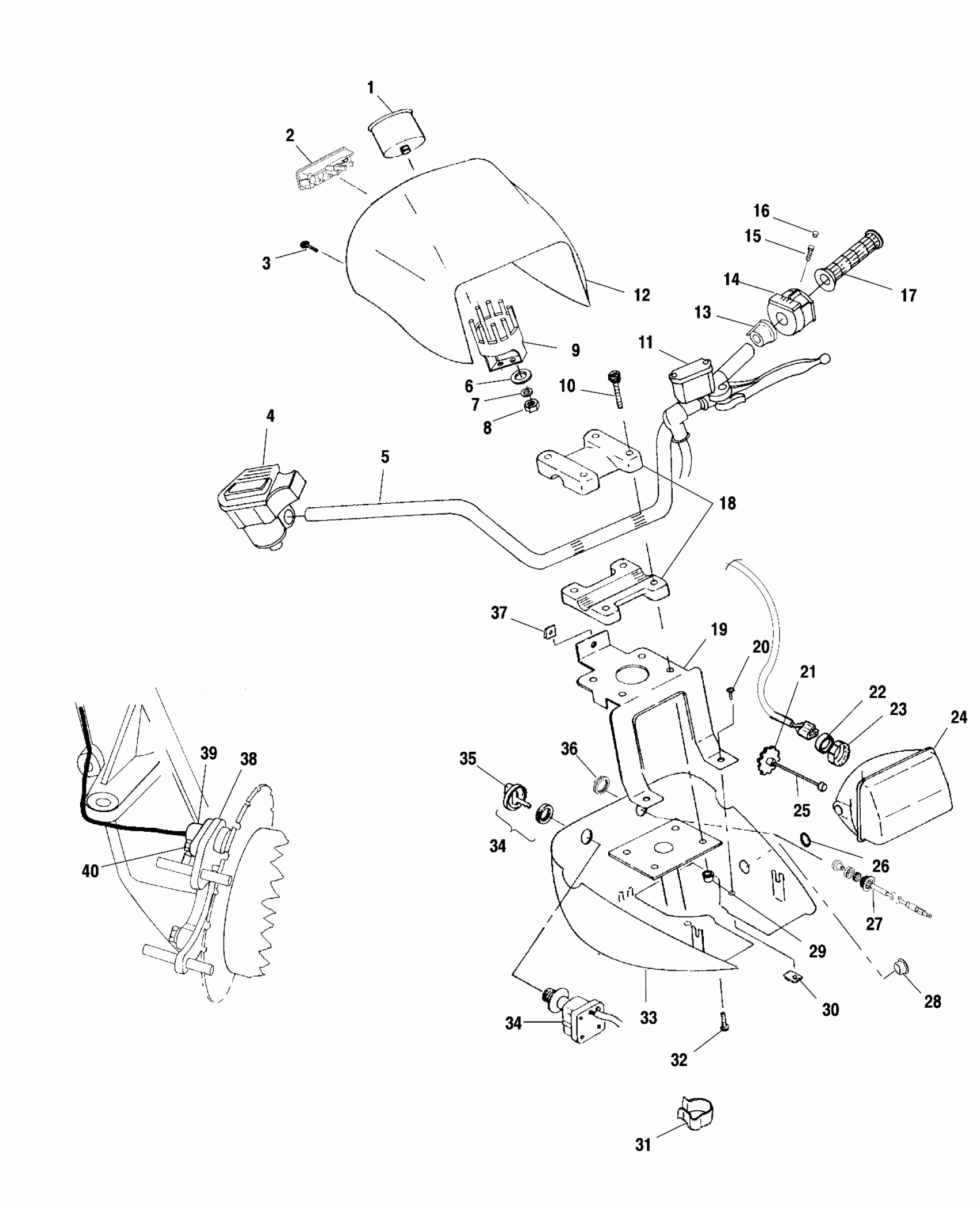

Polaris 500 MAGNUM VL HDS - A02CD50FB HANDLEBAR and HEADLIGHT POD - A02CD50AA/AB/FB (4970197019B13) Diagram

#

Description
Price

1

SPEEDOMETER ASM,3.38",6-P,KILO (FB)

3280377

Unavailable

1

SPEEDOMETER ASM,3.38",6-PULSE [Item NotAvailable] (AA)(AB)

3280378

Unavailable

2

PANEL-INDICATOR LIGHT 3 POS. Substituted by 4010459 (AA)

4010315

Unavailable

2

BULB-INDICATOR,HOBBS

4010416

$9.59

2

PANEL-INDICATOR,W/PARK BRAKE Substituted by 4010459 (AB)(FB)

4010318

Unavailable

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

ASM. THROTTLE CONTROL (See Controls - Throttle Asm./Cable Pg. B10 Ref. 3)

-------

Unavailable

5

TUBE-HANDLEBAR,GEN 4,POD,BLK (AA)

5242987-067

$114.99

5

HANDLEBAR,GEN 4,WIDE,BLK (AB)(FB)

5245181-067

$38.59

6

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

7

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

8

NUT, BRASS(10)

7541933

$4.99

9

CLAMP,BACK,ELEC.SPEEDO,3.38"

3280291

Unavailable

10

SCREW(10)

7515189

Unavailable

11

ASM. MASTER CYLINDER (See Controls - Master Cylinder/Brake Line Page for details)

-------

Unavailable

12

POD-HEADLIGHT,UPPER,GUN METAL

5433763-317

Unavailable

13

SPACER-SWITCH,LH,99

5433903

Unavailable

14

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010422

$123.54

15

SCREW,SET

7517625

$4.79

16

PLUG,HOLE(10)

5432952

$5.59

17

GRIP-HNDLBAR,7/8 ID,ATV,BLACK

5433834-070

$24.27

18

KIT,H'BAR BLOCK (Incl. Blocks and 10,18,29)

2200774

Unavailable

18

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

19

BRKT-POD MOUNTING,BLK

5244969-067

$44.99

20

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

21

KNOB,ADJUSTING

4032079

$23.99

22

BOOT, HEADLIGHT

5411120

$27.99

23

COLLAR,LOCK

4032077

$27.99

24

KIT-HARNESS,HEADLIGHT

2204143

$71.99

24

BULB-HEADLIGHT,50 WATT

4010253

$34.99

24

HEADLAMP,ASM.4X4,50 WATT

2410268

$109.27

24

LENS&REFLECTOR ASM.

4032075

Unavailable

25

ROD,ADJUSTING

4032078

Unavailable

26

O RING

5410163

$1.60

27

CABLE CHOKE (See Engine Mounting Pg. A14 Ref 36)

-------

Unavailable

28

CAPLUG,#BPF-7/8"-6 BLACK

7080936

$2.39

29

NUT-LOCK(10)

7542122

$1.49

30

NUT,U-TYPE(10)

7670089

$5.59

31

CLIP,CABLE RETAIN,(10)

7080631

$6.29

32

SCREW(10)

7522021

$3.99

33

POD-HEADLIGHT,LOWER,SNAP,BLK

5433762-070

$114.99

34

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

Unavailable

34

Blank, Key, Series 2200, 2300, 2700, 2800.

4010321

Unavailable

34

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

34

SWITCH-IGNITION,KEYSTART,ATV (Incl. Key)

4010390

Unavailable

34

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

Unavailable

34

Blank, Key, Series 2200, 2300, 2700, 2800.

4010321

Unavailable

34

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

34

SWITCH-IGNITION,KEYSTART,ATV (Incl. Key)

4010390

Unavailable

35

KEY SWITCH KEY COVER

5433534

$12.35

36

NUT (Use with 7080726)

7080229

$19.99

36

NUT,CHOKE,M24X1.5 THD,M29 HEX (Use with 7080902)

7080922

$3.19

37

Nut

7670127

$9.59

38

SENSOR,HALLEFFECT (Incl. 39)

4010298

$111.99

39

CAP-HALL SENSOR

5132382

$23.99

40

Screw

7517658

$5.59
