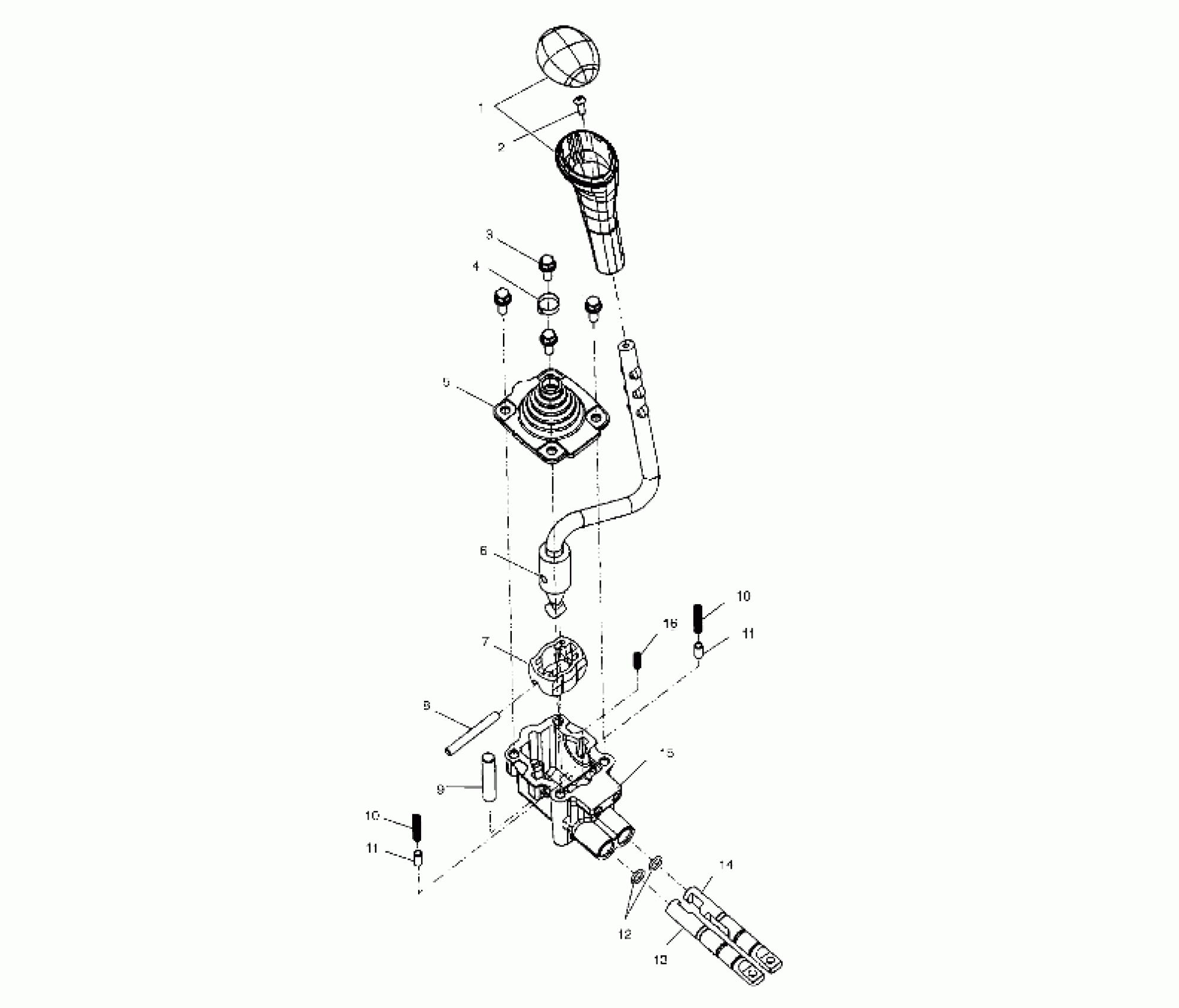

Polaris 500 MAGNUM VL HDS - A02CD50FB GEAR SELECTOR - A02CD50AA/AB/FB (4970197019D01) Diagram

#

Description
Price

-

SELECTOR ASM,GEAR (Incl. 1-16)(AA)

1341271

Unavailable

-

GEAR SELECTOR,ASM,INT'L (Incl. 1-16)(AB)(FB)

1341337

Unavailable

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070 (AA)

3233195

$49.99

1

SUB ASM-GEAR SELECTOR KNOB,H/L (AB)(FB)

3233767

Unavailable

2

SCREW,(10)

7512024

$4.79

3

Screw

3233649

Unavailable

4

Strap, Wire

3233131

$9.70

5

COVER-GEAR SELECTOR BOOT

3233648

$31.99

6

SUBASM-HANDLE GEAR SELECTOR (AA)

3233658

Unavailable

6

SUB ASM-HANDLE,GEAR,SELECTOR (AB)(FB)

3233766

$690.48

7

PLASTIC-SPHERE

3233646

$14.07

8

PIN-DOWEL

3233754

$9.99

9

PIN-DOWEL

3233644

$7.99

10

SPRING-DETENT

3233642

$16.99

10

SPRING-DETENT

3233642

$16.99

11

BULLET,DETENT

3233060

$64.99

11

BULLET,DETENT

3233060

$64.99

12

O-RING

3233076

$6.39

13

SLIDE-LOW (AA)

3233639

Unavailable

14

SLIDE-HIGH/REV (AB FB use Qty. 2)

3233640

Unavailable

15

GEAR,SELECTOR,BODY

3233641

$99.99

16

SPRING-CENTERING

3233643

$52.79
