- 500 MAGNUM VL HDS - A02CD50FB
FUEL TANK AND CARBURETOR MOUNTING - A02CD50AA/AB/FB (4970197019B01)

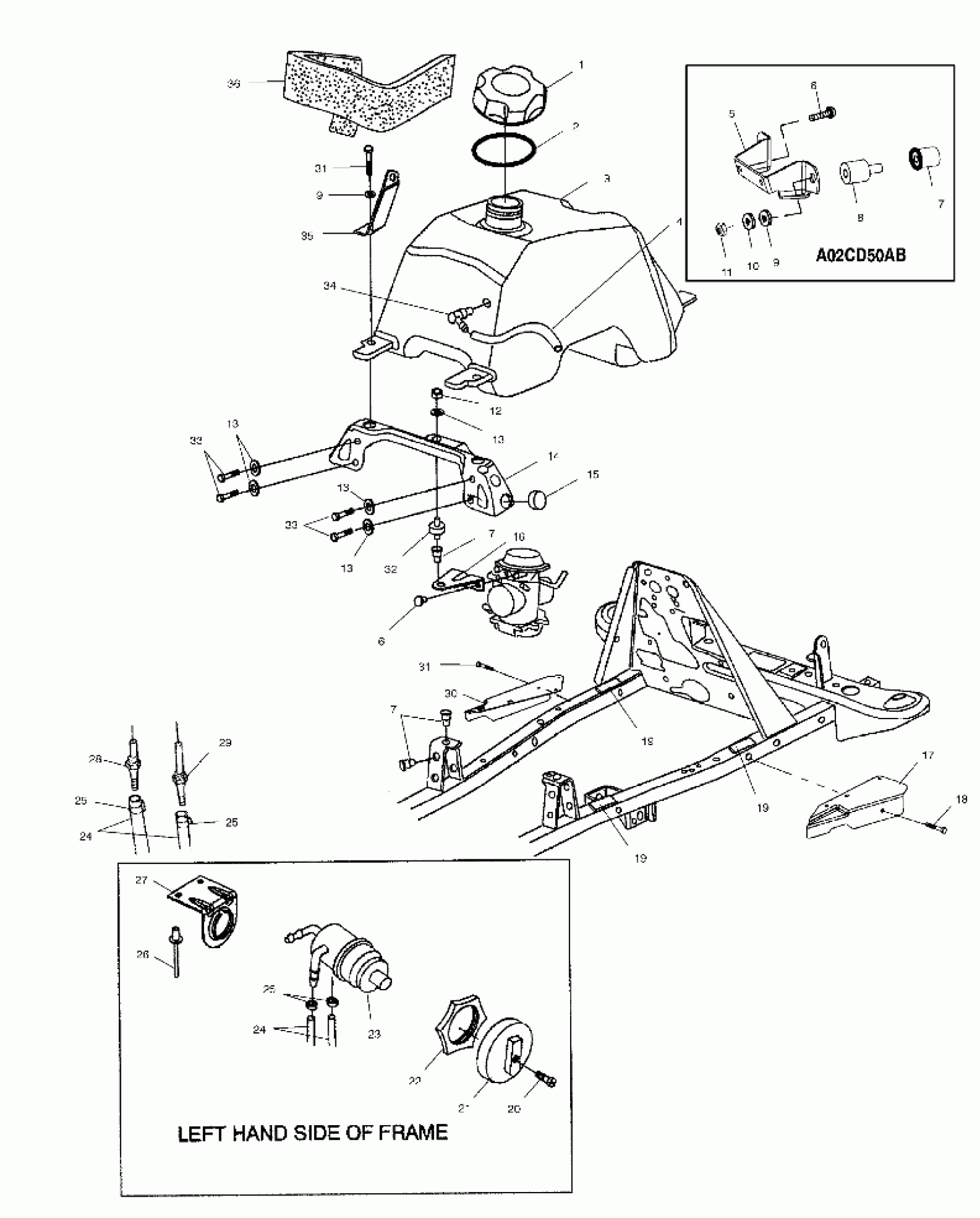

Polaris 500 MAGNUM VL HDS - A02CD50FB FUEL TANK AND CARBURETOR MOUNTING - A02CD50AA/AB/FB (4970197019B01) Diagram
#
1
CAP,GAS TANK (Includes Gasket)
5433687
$20.22
2
GASKET,GAS CAP
5812123
$5.65
3
TANK ASM,FUEL Substituted by 2520174 (Incl. 28,29,34)
2520143
Unavailable
4
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
5
BRKT, CARB.MT. (AB)
5240609-067
Unavailable
6
SCREW & WASHER(10)
3084205
$3.99
6
SCREW & WASHER(10)
3084205
$3.99
7
NUTSERT,HEX(10) (AB)
7547069
$3.99
7
NUTSERT,HEX(10) (AB)
7547069
$3.99
7
NUTSERT,HEX(10) (AB)
7547069
$3.99
8
MOUNT,RUBBER,CARB (AB)
3021086
$13.99
9
WASHER(10) (AB)
7558301
$1.49
9
WASHER(10) (AB)
7558301
$1.49
10
WASHER(10) (AB)
7552605
$5.27
11
NUT HEX(10) (AB)
7542105
$3.99
12
NUT-LOCK(10) (AA)
7542122
$1.49
13
WASHER, FLAT(10) (AA)
7555859
$1.49
13
WASHER, FLAT(10) (AA)
7555859
$1.49
13
WASHER, FLAT(10) (AA)
7555859
$1.49
13
WASHER, FLAT(10) (AA)
7555859
$1.49
14
BRKT-CARB SUPPORT,BLK (AA)
5245672-067
$13.19
15
BUMPER, RUBBER (AA)
5410414
$3.19
16
MOUNT-425/500 CARB,BLK
5245673-067
$2.63
17
SHIELD-SPLASH,RH,BLK
5245533-067
$15.67
18
SCREW,(10)
7517386
$1.49
19
PAD,FUELTANK BRKT. Substituted by 8360026
5810317
Unavailable
19
PAD,FUELTANK BRKT. Substituted by 8360026
5810317
Unavailable
19
PAD,FUELTANK BRKT. Substituted by 8360026
5810317
Unavailable
20
SCREW(10)
7517505
$1.59
21
KNOB,FUEL VALVE
5432559
$10.39
22
NUT,FUELVALVE,ATV
5432733
Unavailable
23
VALVE,3-WAY
7052161
$39.99
24
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
24
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
25
HOSE CLAMP, RED
7080003
$1.49
25
HOSE CLAMP, RED
7080003
$1.49
25
HOSE CLAMP, RED
7080003
$1.49
26
RIVET-3/16-.090-.290
7661637
$1.49
27
BRKT,FUELVALVE,BLK
5240577-067
Unavailable
28
FITTING,FUEL OUT,MAIN,4",Y
7052150
$27.99
29
FITTING,FUEL OUT,RES.,Z
7052149
$23.99
30
SHIELD-SPLASH,LH,BLK
5245394-067
$15.67
31
BOLT(10)
7512277
$4.79
31
BOLT(10)
7512277
$4.79
32
MOUNT,CARB. (AA)
3110050
$12.99
33
BOLT(10) (AA)
7512276
$4.79
33
BOLT(10) (AA)
7512276
$4.79
34
Vent, Tank
5431053
$19.99
35
BRKT,LH.R.FUELCOVER,BLK.
5222154-067
Unavailable
35
BRKT,RH.R.FUELCOVER,BLK.
5222155-067
Unavailable
36
FOAM,SEAL,25"
5811942
Unavailable
