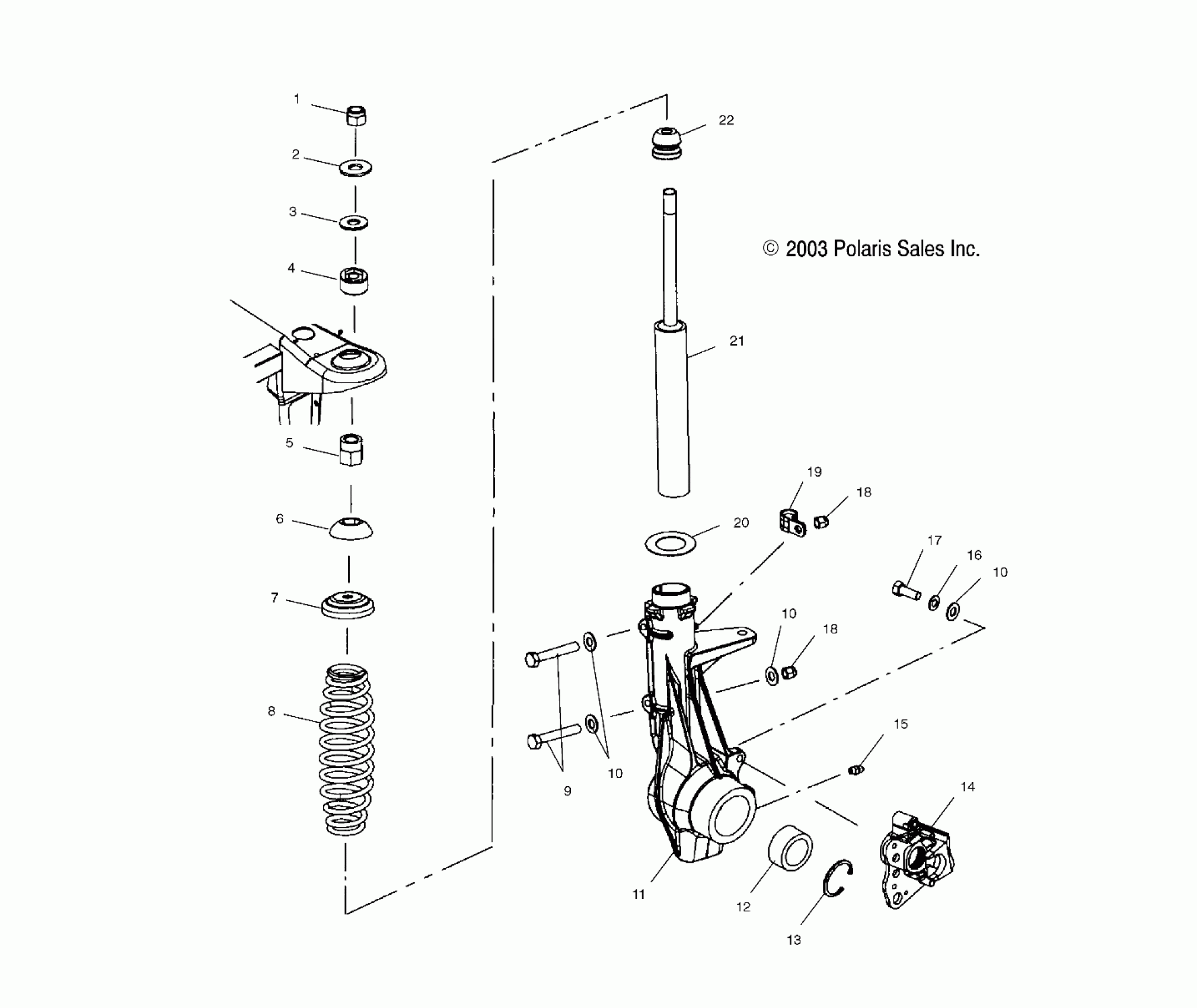

Polaris 500 MAGNUM VL HDS - A02CD50FB FRONT STRUT - A02CD50AA/AB/FB (4964026402B007) Diagram

#

Description
Price

1

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

2

WASHER

7555749

$1.49

3

SPACER-RUBBER

5810291

$3.99

4

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

5

SPACER

5132062

$19.99

6

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

7

RETAINER-SPRING,STRUT

5243364

$19.99

8

Spring, Coil, Shock, Front, Black

7041375-067

$79.99

9

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

Hubstrut, RH

1820901

Unavailable

11

Hubstrut, LH

1820899

$293.80

12

Bearing, Hubstrut

3514342

Unavailable

13

RING, RETAINING

7710507

$2.39

14

ASM., FRONT BRAKE CALIPER, LH [See Front Brake Pg. C2 for Details]

-------

Unavailable

15

Fitting, Lubrication

7080306

$3.19

16

WASHER, SPRING LOCK

7552901

$1.49

17

SCREW

7512365

$1.49

18

NUT-5/16-18 NYLOK-Y

7542324

$1.49

18

NUT-5/16-18 NYLOK-Y

7542324

$1.49

19

Clamp, Rubber Coated

7080573

$7.19

20

WASHER-2.06X2.62X.105-Y

5211115

$3.99

21

Strut, Front

7041761

$151.99

22

Bumper

5411608

Unavailable
