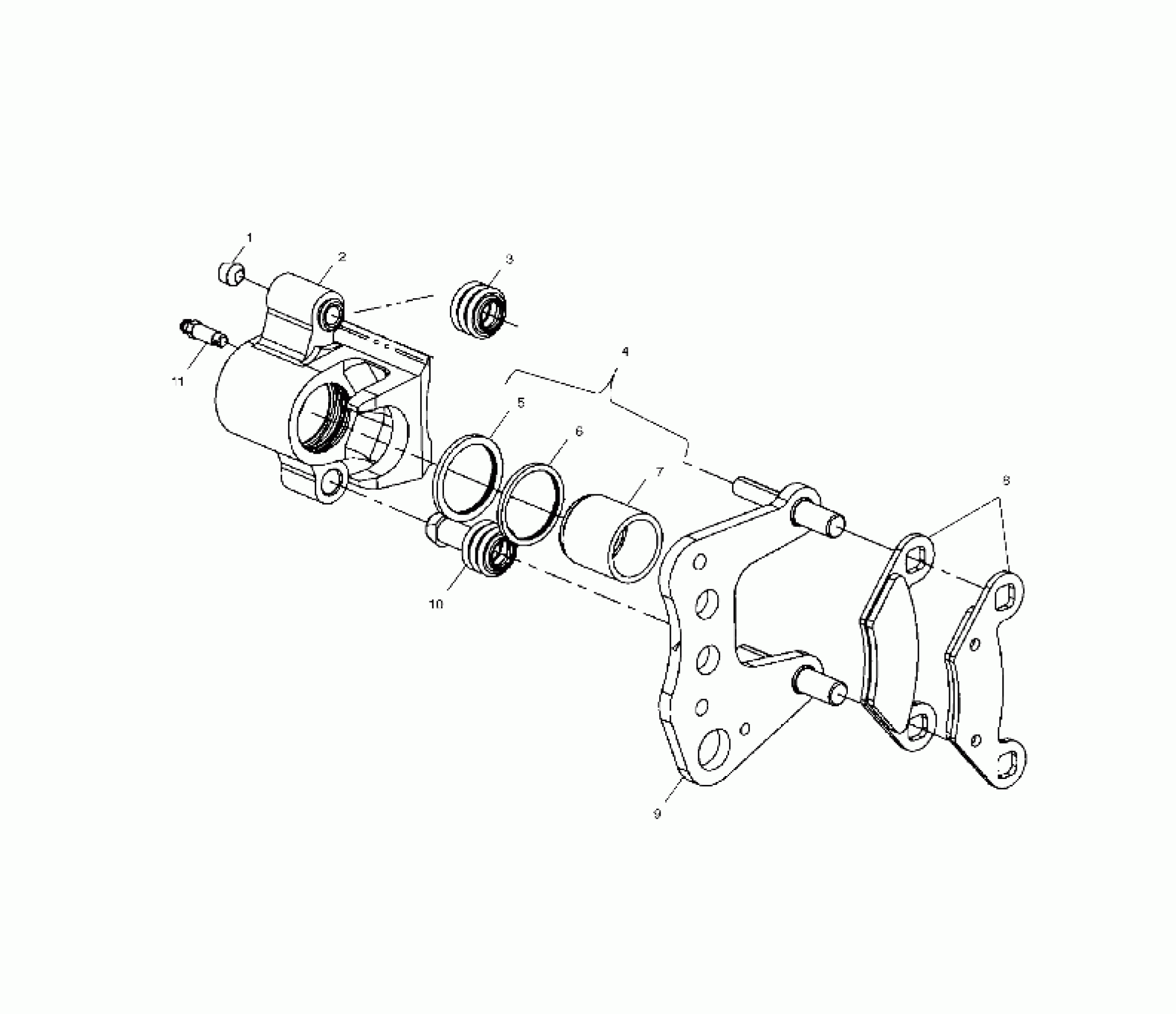

Polaris 500 MAGNUM VL HDS - A02CD50FB FRONT BRAKE - A02CD50AA/AB/FB (4970197019C02) Diagram

#

Description

Price

-

CALIPER ASM.BRAKE,RH,1.187,9" (Incl. 1-7,9,10)

1910550

Unavailable

-

CALIPER ASM.BRAKE,LH,1.187,9" (Incl. 1-7,9,10)

1910549

$288.87

1

SETSCREW,SKT.HD.(10)

7515489

$5.59

2

KIT-BOOT,FRONT BRAKE

1930642

$11.19

2

CALIPER-BRAKE,LH

5133407

Unavailable

2

CALIPER-BRAKE,RH

5133408

Unavailable

3

Boot, Pin Seal

5410494

Unavailable

4

PISTON & SEAL,KIT (Incl. 5-7)

1930665

$55.99

5

SQUARE RING-MOLDED (.094) (.094)

5410779

$10.51

6

RING,SQUARE,MOLDED (.103 x .134)

5410780

$10.51

7

PISTON-BRAKE,LONG Substituted by 1930665

5132294

$54.04

8

BRAKE PADS,AFT,FRONT

2201398

Unavailable

9

MOUNT,ASM,CALIPER

1910411

$50.18

10

Boot, Bushing

5410495

Unavailable

11

SCREW,BLEEDER

7080352

$3.19
