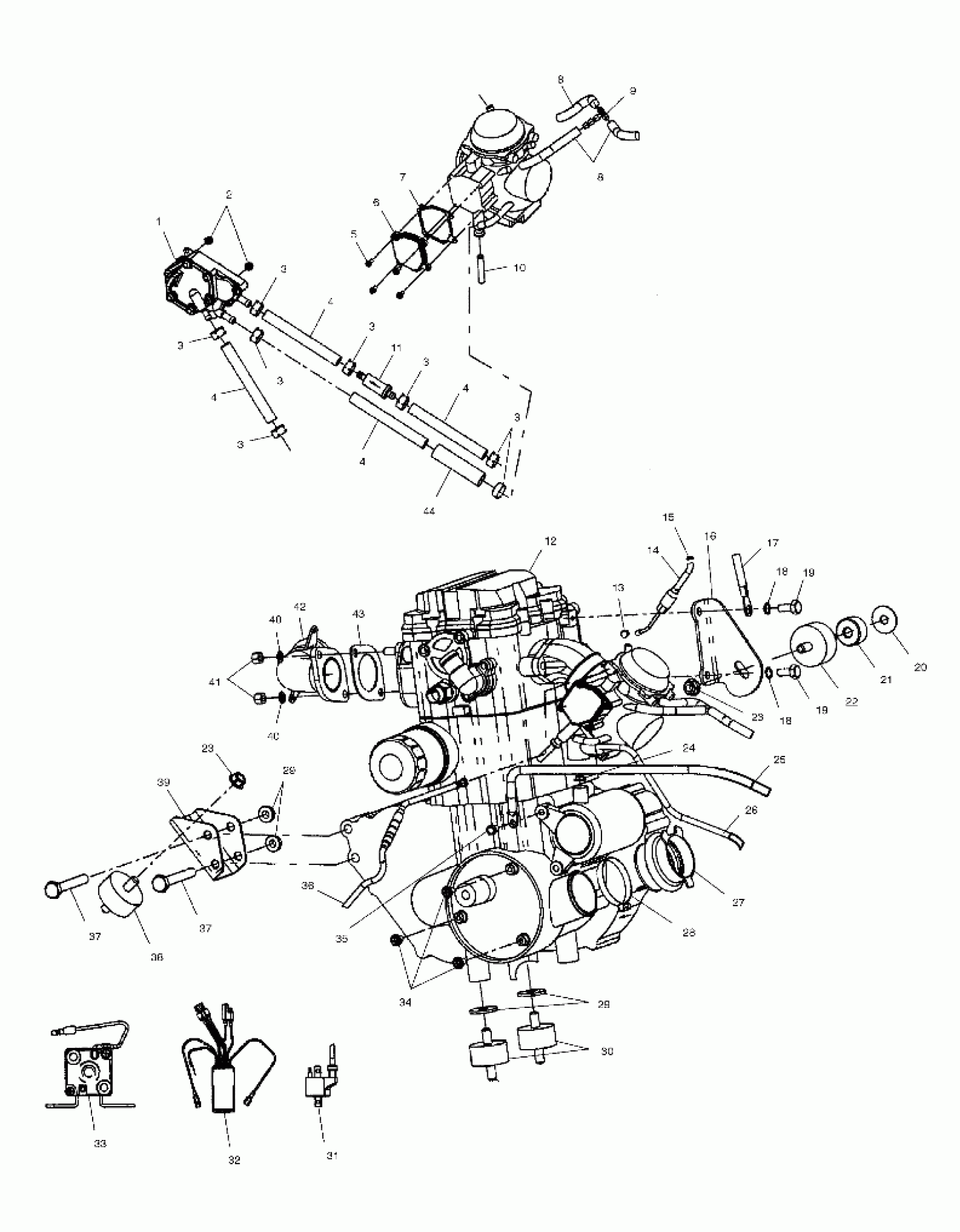

Polaris 500 MAGNUM VL HDS - A02CD50FB ENGINE MOUNTING - A02CD50AA/AB/FB (4970197019A13) Diagram

#

Description
Price

1

PUMP, FUEL *

3085275

$77.21

2

NUT-M5X.8,HX NYL-Y

7546601

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

4

FUEL LINE,1/4 ID(600 CM.)

8450040-600

$68.79

4

FUEL LINE,1/4 ID(600 CM.)

8450040-600

$68.79

4

FUEL LINE,1/4 ID(600 CM.)

8450040-600

$68.79

4

FUEL LINE,1/4 ID(600 CM.)

8450040-600

$68.79

5

SCREW

3130535

$7.19

6

COVER

3130511

$43.99

7

O-Ring

3130512

$39.99

8

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

9

FITTING, TEE

7052075

$9.59

10

FUEL LINE,1/8 ID,600 CM.

8360009-600

$40.46

11

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

12

ENG.(S.B.)EH50PLE-01 NOTE: The Short Block assembly contains a crankcase assembly cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty

3085556

Unavailable

13

GUIDE,CABLE

3130543

$27.99

14

CABLE-THROTTLE,1/4 TURN,4 STK

7080967

$55.99

15

O RING

5410193

$4.99

16

MOUNT,ENGINE,TOP,BLK

5242936-067

$5.75

17

CABLE,GND-ENGINE

4010132

Unavailable

18

LOCK WASHER(10)

7552901

$1.49

18

LOCK WASHER(10)

7552901

$1.49

19

BOLT(10)

7512315

$4.79

19

BOLT(10)

7512315

$4.79

20

WASHER(10)

7555823

$3.99

21

SPACER-MOTOR MNT TOP

5132007

Unavailable

22

MOUNT-RUBBER,TOP,60 DURO

3021045

Unavailable

23

NUT

7547108

$4.79

23

NUT

7547108

$4.79

24

NUT, FLANGE(10)

3083649

$3.99

25

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

26

CABLE,SOL/STARTER

4010093

$47.99

27

BOOT,CLUTCH INTAKE

5410421

$11.19

28

CLAMP, NARROW BAND(10)

7080511

$4.79

29

WASHER, FLAT(10)

7555815

$3.99

29

WASHER, FLAT(10)

7555815

$3.99

30

MOUNT,RUBBER,REAR,60 DURO

3021119

Unavailable

31

COIL ASM,IGNITION

3084690

Unavailable

32

CDI-SYSTEM (See Magneto Pg. E3. Ref. 15)

-------

Unavailable

33

SWITCH,MAGNETIC * (See Magneto Pg. E3. Ref. 18)

-------

Unavailable

34

SCREW & WASHER(10)

3084205

$3.99

35

BOLT&WASHER ASM.

3082038

$3.99

36

CABLE-CHOKE,FRICTION,40"

7081008

$79.99

37

BOLT(10)

7515417

$4.79

37

BOLT(10)

7515417

$4.79

38

MOUNT,RUBBER,TOP

3110044

Unavailable

39

MOUNT,LOW.FR.ENGINE,BLK.

5242818-067

$40.19

40

WASHER LOCK ,(10)

3080530

$3.19

40

WASHER LOCK ,(10)

3080530

$3.19

41

NUT(10)

3080285

Unavailable

42

MANIFOLD,BLK

1260978-029

Unavailable

43

GASKET,EXH.

3085075

$39.99

44

SHEATH-FOIL LAMINATED,5/8X18CM Substituted by 8450080-65

8450080-18

$15.49
