Description

Price

1

HARNESS-MAIN,MAGNUM 500,U.S. (AA)

2460951

Unavailable

1

HARNESS-MAIN,MAG 500 RMK,HDS (AB)(FB)

2460975

Unavailable

2

KIT,CKT.BRKR,20 AMP

2200593

$63.99

3

KIT-CIRCUT BREAKER,FAN

2201795

$68.79

4

TAIL LIGHT ASM. (Incl. 5-10)(If built before 2/02/02)

2432034

$55.99

4

ASM., TAILLIGHT, 12V (Incl. 5-10)(If built after 2/02/02)

2410320

$63.99

5

LENS,TAILLIGHT

4032046

$32.37

6

Screw, Taillight

4032029

$4.79

7

BULB,TAILLIGHT

4030043

$6.46

8

GASKET,TAILLIGHT

4032045

$4.03

9

BACKING,TAILLIGHT

4032064

$83.99

10

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

11

NUT(10)

7541925

$1.49

11

NUT(10)

7541925

$1.49

12

WASHER(10)

7571602

$4.79

12

WASHER(10)

7571602

$4.79

13

SCREW(10)

7512027

$1.49

14

PAD-BATTERY

5810290

$7.27

15

PAD,FUELTANK BRKT. Substituted by 8360026 (FB)

5810317

Unavailable

16

HORN (FB)

4010310

Unavailable

17

SWITCH,HORN (FB)

4010311

$59.99

18

SCREW,(10) (FB)

7517386

$1.49

19

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

19

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

20

BOLT,BATT,KIT(SHORT)

2200361

$3.99

21

HOOK-BATT.H/D(10)

7010032

$1.59

22

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

23

TUBE,BATTERY VENT

5432077

Unavailable

24

Battery

4140006

$99.99

25

Kit, Fusible Link

2202147

$79.99

26

CLIP, PLASTIC(10)

4020139

$4.79

27

COVER,BATTERY

5431769

$14.39

28

SCREW(10)

7512007

$3.99

29

PAD,RACK MOUNT

5810455

$3.19

30

SCREW,(10) (FB)

7512024

$4.79

31

LIMITER-SPEED 680 HZ,CONN (AB)(FB)

4010608

Unavailable

32

BRACKET-CDI

5241416

$5.75

33

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

33

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

34

Trim, Edge

8360012-10

Unavailable

35

HEATSINK RECT.

5131036

Unavailable

36

RECTIFIER,FULL WAVE

4060173

Unavailable

37

CLIP,ROSEBUD

4020149

$6.39

38

CLIP-ROUTING

7670109

$2.39

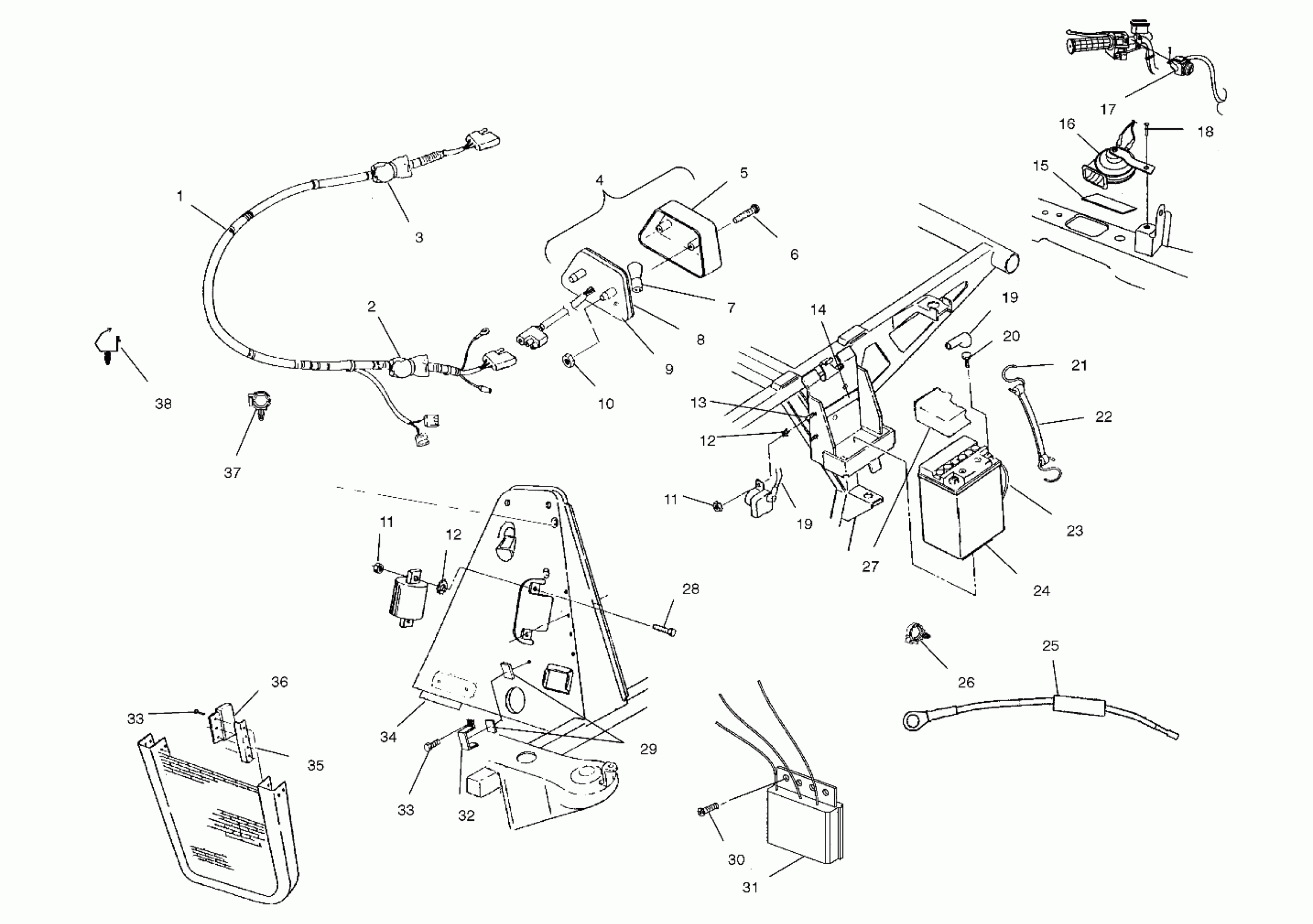

Polaris 500 MAGNUM VL HDS - A02CD50FB ELECTRICAL/TAILLIGHT - A02CD50AA/AB/FB (4970197019C08) Diagram

HARNESS-MAIN,MAGNUM 500,U.S. (AA)

HARNESS-MAIN,MAG 500 RMK,HDS (AB)(FB)

KIT,CKT.BRKR,20 AMP

KIT-CIRCUT BREAKER,FAN

TAIL LIGHT ASM. (Incl. 5-10)(If built before 2/02/02)

ASM., TAILLIGHT, 12V (Incl. 5-10)(If built after 2/02/02)

LENS,TAILLIGHT

Screw, Taillight

BULB,TAILLIGHT

GASKET,TAILLIGHT

BACKING,TAILLIGHT

SPEED NUT-WASHER, HEAD-1/4

NUT(10)

NUT(10)

WASHER(10)

WASHER(10)

SCREW(10)

PAD-BATTERY

PAD,FUELTANK BRKT. Substituted by 8360026 (FB)

HORN (FB)

SWITCH,HORN (FB)

SCREW,(10) (FB)

CABLE,BATT/SOLENOID,RED

CABLE,BATT/SOLENOID,RED

BOLT,BATT,KIT(SHORT)

HOOK-BATT.H/D(10)

STRAP,BATTERY HOLDDOWN

TUBE,BATTERY VENT

Battery

Kit, Fusible Link

CLIP, PLASTIC(10)

COVER,BATTERY

SCREW(10)

PAD,RACK MOUNT

SCREW,(10) (FB)

LIMITER-SPEED 680 HZ,CONN (AB)(FB)

BRACKET-CDI

SCR-#10-24X3/4,PN/TR RD-TORX-Y

SCR-#10-24X3/4,PN/TR RD-TORX-Y

Trim, Edge

HEATSINK RECT.

RECTIFIER,FULL WAVE

CLIP,ROSEBUD

CLIP-ROUTING
