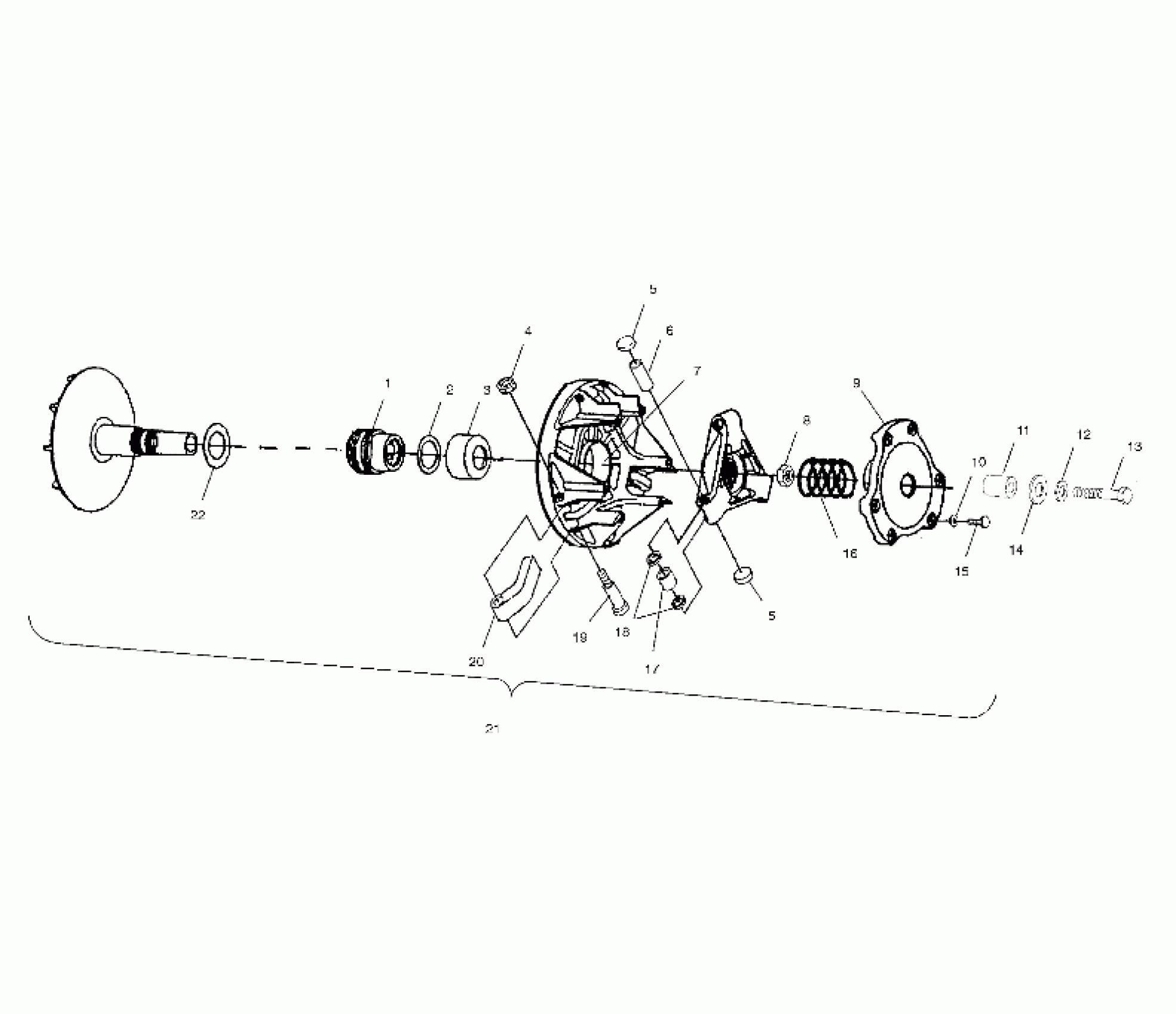

Polaris 500 MAGNUM VL HDS - A02CD50FB DRIVE CLUTCH - A02CD50AA/AB/FB (4970197019C05) Diagram

#

Description
Price

1

CLUTCH,DRIVE,1-WAY,HLRD

1520231

$294.99

2

WASHER-1.39X1.99X.030,BRASS

7556202

$6.39

3

SPACER-1.25X2.25,PM

5631119

Unavailable

4

NUT FLEX LOC(10)

7541906

$3.19

5

BUTTON,CLUTCH

5431936

Unavailable

5

BUTTON,CLUTCH

5431936

Unavailable

6

PIN-ROLLER

5020422

$2.39

7

Bearing

3585712

$31.99

8

NUT,JAM Substituted by 2201615

7547130

Unavailable

9

BEARING, COVER,(10)

3576510

$9.59

10

LOCK WASHER(10)

7552801

$1.59

11

BUSHING-.437 X.770 X.50

5430261

$7.19

12

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

13

BOLT(10)

7512566

$30.79

14

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

15

BOLT(10) Substituted by 7512163

7512176

Unavailable

16

SPRING,CLUTCH

7041157

$47.99

17

ASM-ROLLER AND BUSHING

1321457

$40.46

18

WASHER,MULTILUBE

5430945

$1.59

19

BOLT,SPECIAL(10)

7512266

$3.19

20

WT,SHIFT, 10MH(6)

5630513

$30.88

21

CLUTCH,DRIVE,BRAKING (Incl. All Less 16,20)

1321706

$562.31

22

WASHER-1.39X2.24X.030,PTFE

7556204

$11.19
