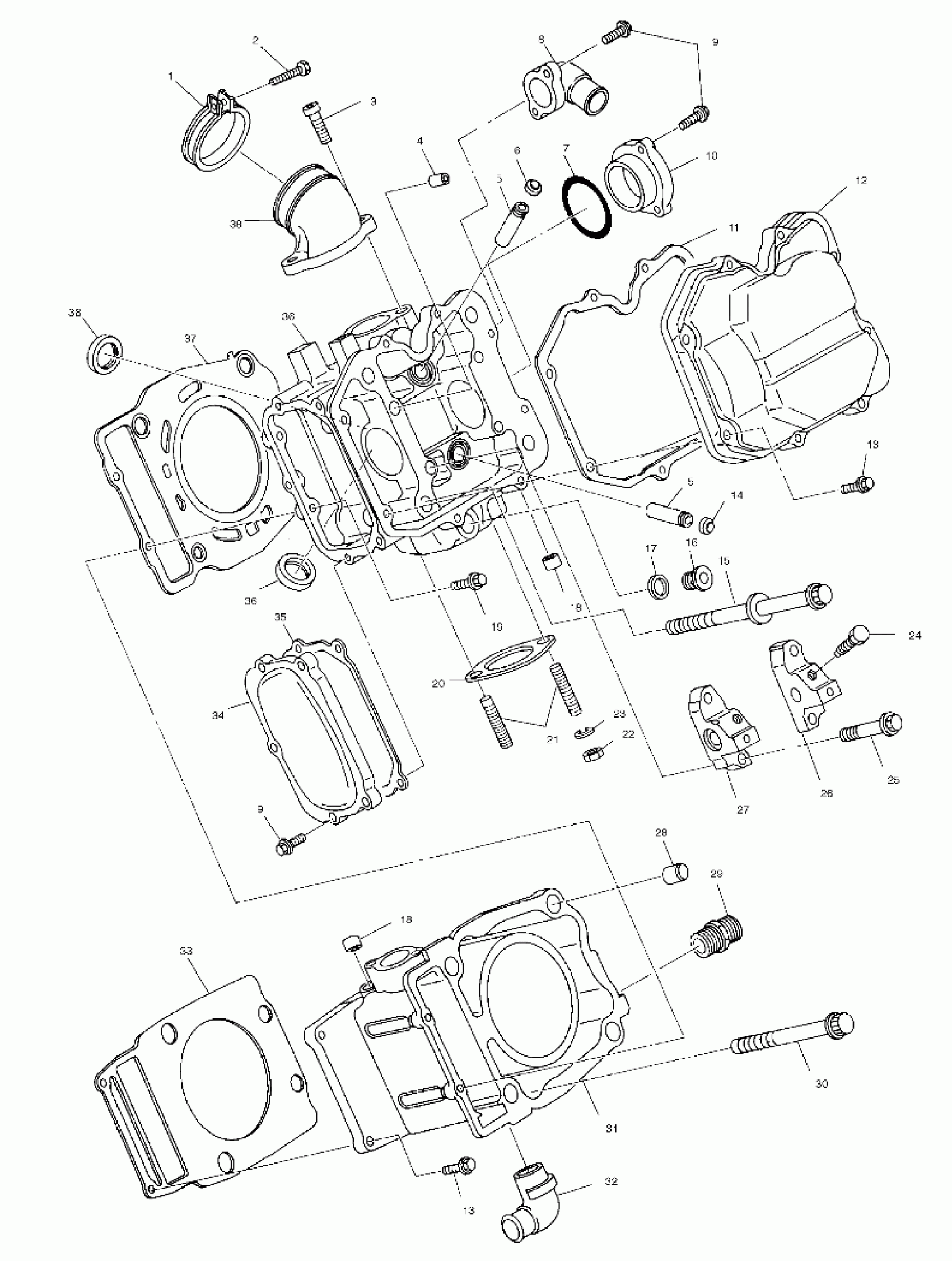

Polaris 500 MAGNUM VL HDS - A02CD50FB CYLINDER - A02CD50AA/AB/FB(4970197019D07) Diagram

#

Description
Price

1

BAND ASM. (Incl. 2)

3083166

$19.84

2

SCREW,(10)

3081497

$2.38

3

Bolt, Allen

3081330

$3.97

4

PIN,STRAIGHT

3084857

Unavailable

5

GUIDE,VALVE

3084994

Unavailable

5

GUIDE,VALVE

3084994

Unavailable

6

SEAL,INTAKE VALVE

3084858

$13.75

7

O-RING

3084867

$24.27

8

ADAPTER,(WATER OUT) Substituted by 3084870

3085072

$64.75

9

BOLT,FLANGE(10)

3084877

Unavailable

9

BOLT,FLANGE(10)

3084877

Unavailable

10

ADAPTER,CAMSHAFT

3084866

Unavailable

11

GASKET,(R.COVER)

3085074

$32.37

12

COVER,ROCKER

3085073

$80.94

13

BOLT, FLANGE

3084874

Unavailable

13

BOLT, FLANGE

3084874

Unavailable

14

SEAL,EXHAUST VALVE

3084859

$24.27

15

BOLT

3084875

Unavailable

16

PLUG

3084860

$7.14

17

GASKET

3084861

$4.84

18

PLUG, BLIND

3084862

Unavailable

18

PLUG, BLIND

3084862

Unavailable

19

BOLT, FLANGE Substituted by 3086781

3084215

$4.76

20

GASKET,EXH.

3085075

$40.46

21

STUD,(10)

3085326

Unavailable

22

NUT(10)

3080285

Unavailable

23

WASHER LOCK ,(10)

3080530

$3.17

24

BOLT (ROCKER SHAFT)

3085854

Unavailable

25

BOLT

3084876

$4.76

26

SUPPORT,VALVE ROCKER (PTO)

3084864

Unavailable

27

SUPPORT,VALVE ROCKER (MAG)

3084863

$93.08

28

PIN,STRAIGHT

3084838

Unavailable

29

UNION,OIL PUMP

3084849

Unavailable

30

BOLT, FLANGE

3084873

Unavailable

31

CYLINDER * (Incl. 32)

3086811

Unavailable

32

PIPE, 2 ELBOW Substituted by 3086747

3084130

Unavailable

33

Gasket, Cylinder

3085370

$40.46

34

Cover, Camshaft

3084868

$60.70

35

GASKET-COVER CAM

3086200

Unavailable

36

HEAD,CYLINDER * (Incl. 4-6,14,16-18,21)

3085527

$849.99

36

HEAD,CYLINDER * (Incl. 4-6,14,16-18,21)

3085527

$849.99

36

HEAD,CYLINDER * (Incl. 4-6,14,16-18,21)

3085527

$849.99

37

GASKET, HEAD

3085371

$66.49

38

ADAPTER

3084879

Unavailable
