- 500 MAGNUM VL HDS - A02CD50FB
CRANKSHAFT and PISTON - A02CD50AA/AB/FB (4970197019D06)

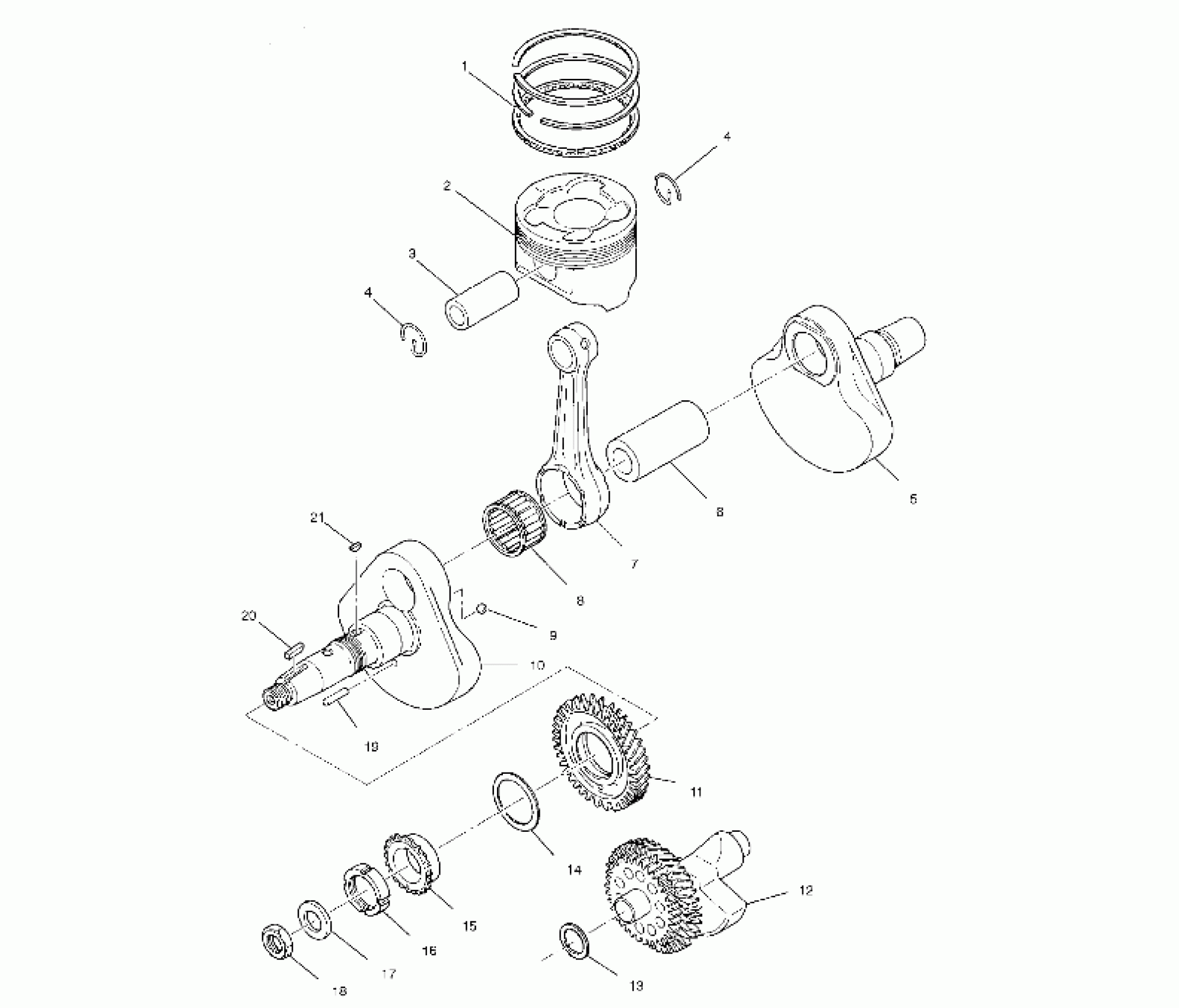

Polaris 500 MAGNUM VL HDS - A02CD50FB CRANKSHAFT and PISTON - A02CD50AA/AB/FB (4970197019D06) Diagram
#
Description
Price
1
RING SET,(STD) * (Std)
3085379
Unavailable
1
RING SET,(.25MM/.010 OS) (0.25 O/S)
3085380
Unavailable
1
RING SET,(.50MM/.020 OS) (0.50 O/S)
3085381
Unavailable
2
PISTON SET(STD) (Std) (Incl. 2-4)
3085866
Unavailable
2
PISTON,SET(.25 O/S) (0.25 O/S) (Incl. 2-4)
3085867
Unavailable
2
PISTON,SET(.50 0/S) (0.50 O/S) (Incl. 2-4)
3085868
Unavailable
3
Pin Piston
-------
Unavailable
4
CLIP(10)
3085534
Unavailable
4
CLIP(10)
3085534
Unavailable
5
CRANKSHAFT#2,PTO SIDE
3085374
$338.29
6
Pin, Crank
3085341
Unavailable
7
ROD,CONNECTING
3085376
$175.99
8
BEARING,LARGE END Substituted by 3085343
3085400
$78.56
9
BALL, STEEL
3085024
$5.59
10
CRANKSHAFT#1,MAG SIDE
3085373
$342.99
10
CRANKSHAFT ASM. (Incl. 5-11,19)
3085399
Unavailable
11
BALANCER,GEAR,1 *
3085852
Unavailable
12
SHAFT,BALANCER *
3085404
Unavailable
13
SPACER (1.2)
3084897
$6.39
13
SPACER (0.8)
3084895
$6.39
13
SPACER (1.0)
3084896
$6.39
14
SPACER (1.2)
3084894
$19.99
14
SPACER (0.6)
3240088
$10.39
14
SPACER (1.0)
3084893
$19.99
14
SPACER (0.8)
3084892
$12.79
15
SPROCKET 1
3084882
Unavailable
16
NUT,SLIT
3085528
$35.99
17
WASHER Substituted by 3086767
3083904
Unavailable
18
LOCKNUT
3083905
Unavailable
19
Pin, Dowel
3085346
Unavailable
20
KEY
3081447
Unavailable
21
KEY Substituted by 3081543
3080130
Unavailable
