CARBURETOR - A02CD50AA/AB/FB (4970197019D09)

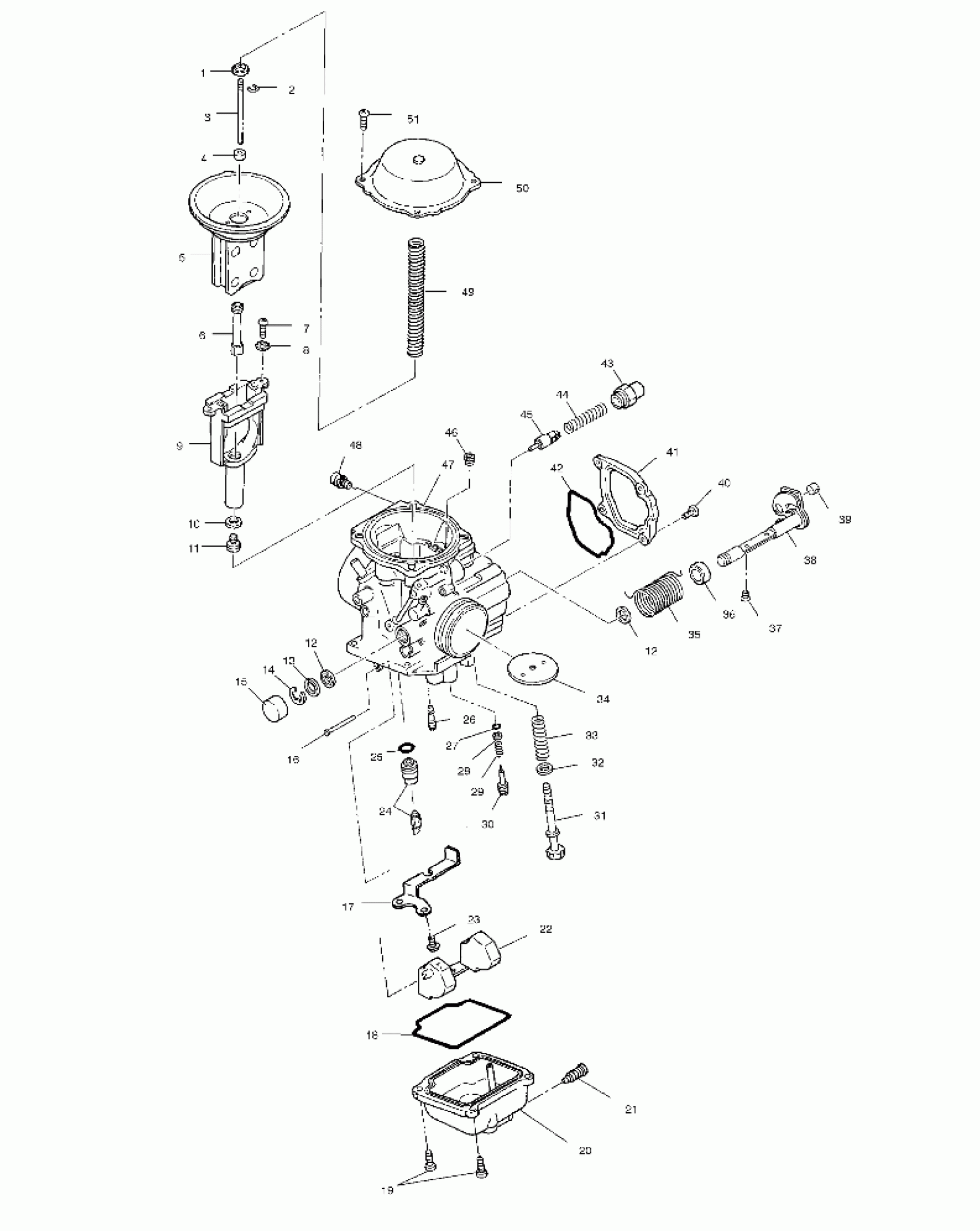

Polaris 500 MAGNUM VL HDS - A02CD50FB CARBURETOR - A02CD50AA/AB/FB (4970197019D09) Diagram
#
1
RING
3130507
$5.59
2
E-RING,(10)
3130508
$6.46
3
JET,NEEDLE
3130962
$27.99
4
RING
3130752
$5.59
5
DIAPHRAGM ASM.
3130732
$123.99
6
NEEDLE,JET (Q-0)
3130960
$40.46
7
SCREW
3130541
$11.19
8
WASHER,SPRING
3130540
$4.79
9
JETBLOCK ASM.
3130504
$59.99
10
WASHER (10)
3130014
$1.59
11
MAIN JET,#157.5 (#157.5)
3130572
$24.27
12
SEAL
3130515
$11.99
12
SEAL
3130515
$11.99
13
PACKING
-------
Unavailable
14
E-RING
3130518
$1.59
15
CAP
3130519
$10.39
16
PIN, FLOAT
3130361
$8.89
17
PLATE
3130594
$27.99
18
O-RING
3130532
$31.99
19
SCREW
3130520
$1.59
20
FLOATBODY ASM.
3130590
$103.99
21
SCREW
3130521
$10.39
22
FLOAT ASM.
3130529
$79.99
23
SCREW
3130591
$3.99
24
VALVE-NEEDLE
3131360
$47.99
25
O-RING
3130533
$5.59
26
JET,PILOT,#40 (#40)
3130624
$23.99
27
O-Ring
3130522
$5.65
28
Washer
3130523
$2.39
29
Spring
3130525
$4.79
30
Adjuster
3130524
$23.99
31
SCREW, ADJ.
3130546
$13.59
32
Ring
3130545
$12.13
33
Spring
3130544
$9.59
34
VALVE,THROTTLE (100)
3130502
$47.99
35
SPRING
3130589
$23.99
36
Ring
3130514
$7.19
37
SCREW
3130501
$3.99
38
SHAFT ASM,THROTTLE
3130513
$79.99
39
GUIDE,CABLE
3130543
$27.99
40
SCREW
3130535
$7.19
41
COVER
3130511
$43.99
42
O-Ring
3130512
$39.99
43
HOLDER,GUIDE
3130199
$28.32
44
SPRING
3130538
$4.79
45
PLUNGER ASM. Substituted by 3130539
3130593
$34.74
46
JET,AIR,#160 (#160)
3130625
$13.59
47
CARBURATOR,ASM. (Incl. 1-38,43-51)
3131199
Unavailable
48
SCREW & WASHER(10)
3084205
$3.99
49
SPRING
3130505
$23.99
50
Cover
3130503
$63.99
51
SCREW-MIKUNI C2=0408
3130592
Unavailable
