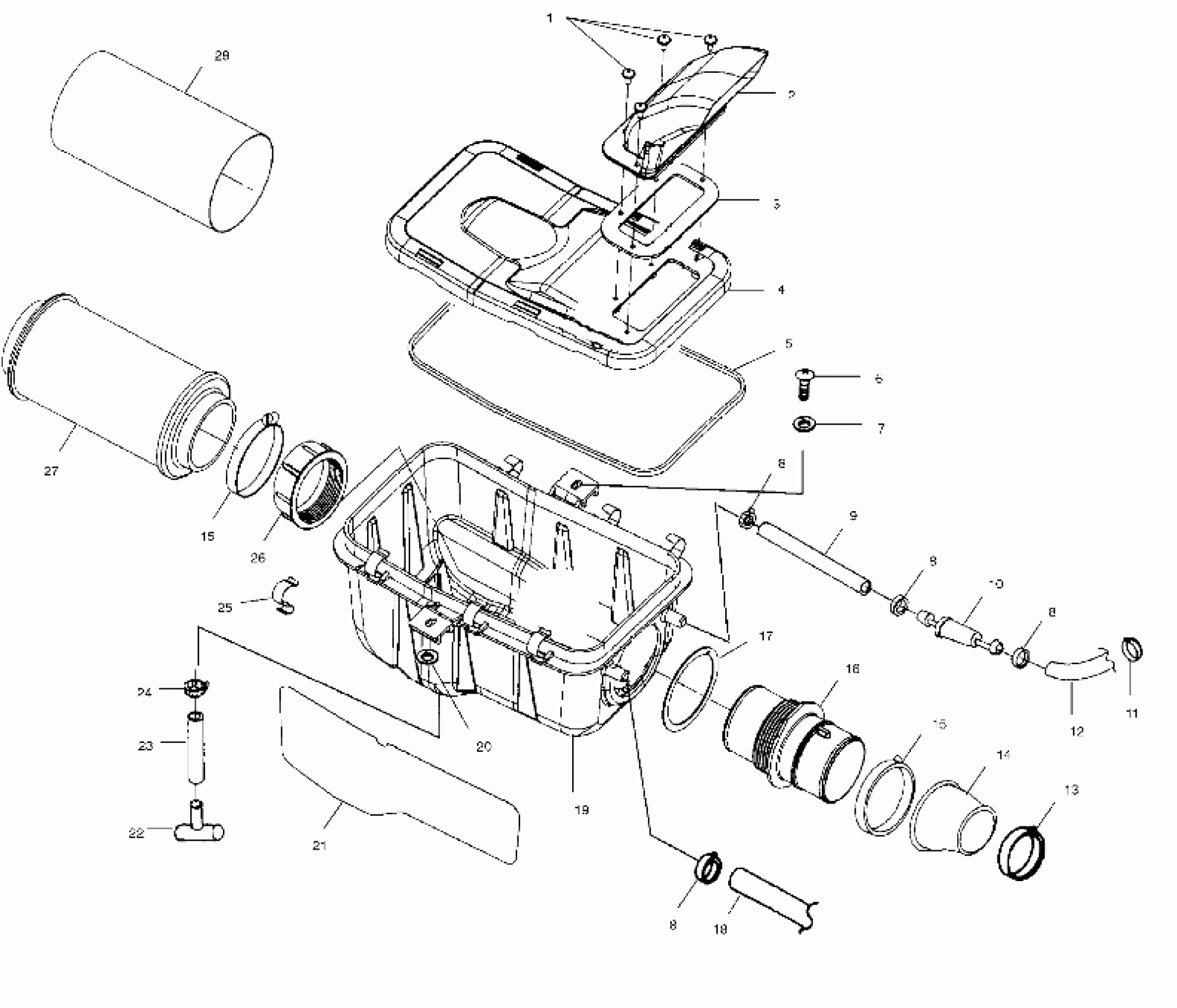

Polaris 500 MAGNUM VL HDS - A02CD50FB AIR BOX - A02CD50AA/AB/FB (4970197019A12) Diagram

#

Description
Price

1

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

2

DUCT,INLET,AIRBOX COVER

5432859

Unavailable

3

GASKET,INTAKE

5411422

$6.59

4

COVER,AIRBOX

5432868

$56.65

5

SEAL,AIRBOX COVER

5811482

$28.32

6

SCREW(10)

7515180

Unavailable

7

WASHER(10)

7558301

$1.19

8

CLAMP,HOSE

7080699

$1.59

8

CLAMP,HOSE

7080699

$1.59

8

CLAMP,HOSE

7080699

$1.59

8

CLAMP,HOSE

7080699

$1.59

9

LINE,BREATHER,3/8 ID.

8450073-600

Unavailable

10

FILTER,BREATHER,IN LINE

2530029

$6.35

11

CLAMP,HOSE,SPRING

7080694

$6.64

12

HOSE-BREATHER,NITRILE,500 ATV

5411921

$174.99

13

CLAMP, NARROW BAND(10)

7080511

$4.76

14

BOOT,CARB,425 PVT

5411540

Unavailable

15

CLAMP,BAND,NARROW

7080413

$3.17

15

CLAMP,BAND,NARROW

7080413

$3.17

16

DUCT,CARB.INLET

5432473

Unavailable

17

GASKET,CARB.IN.DUCT

5830128

Unavailable

18

Line Breather (See Oil Tank Pg. B12 Ref. 5) (See Oil Tank Pg. B12 Ref. 5)

----

Unavailable

19

BOX,AIR INTAKE,4-STRK

5433678

$137.60

20

Spacer

7556091

$3.97

21

FOIL,AIRBOX

5811650

Unavailable

22

Plug, Trap

5432377

Unavailable

23

FUEL LINE

8450059-150

Unavailable

24

CLAMP,HOSE,(10)

7080650

$3.97

25

CLIP-AIR BOX

5242044

$9.52

26

COLLAR,CARB INLET

5432601

$12.94

27

FILTER,AIR INTAKE

7080595

$27.78

28

FILTER,PRECLEAN.SLEEVE

5811633

$11.90
