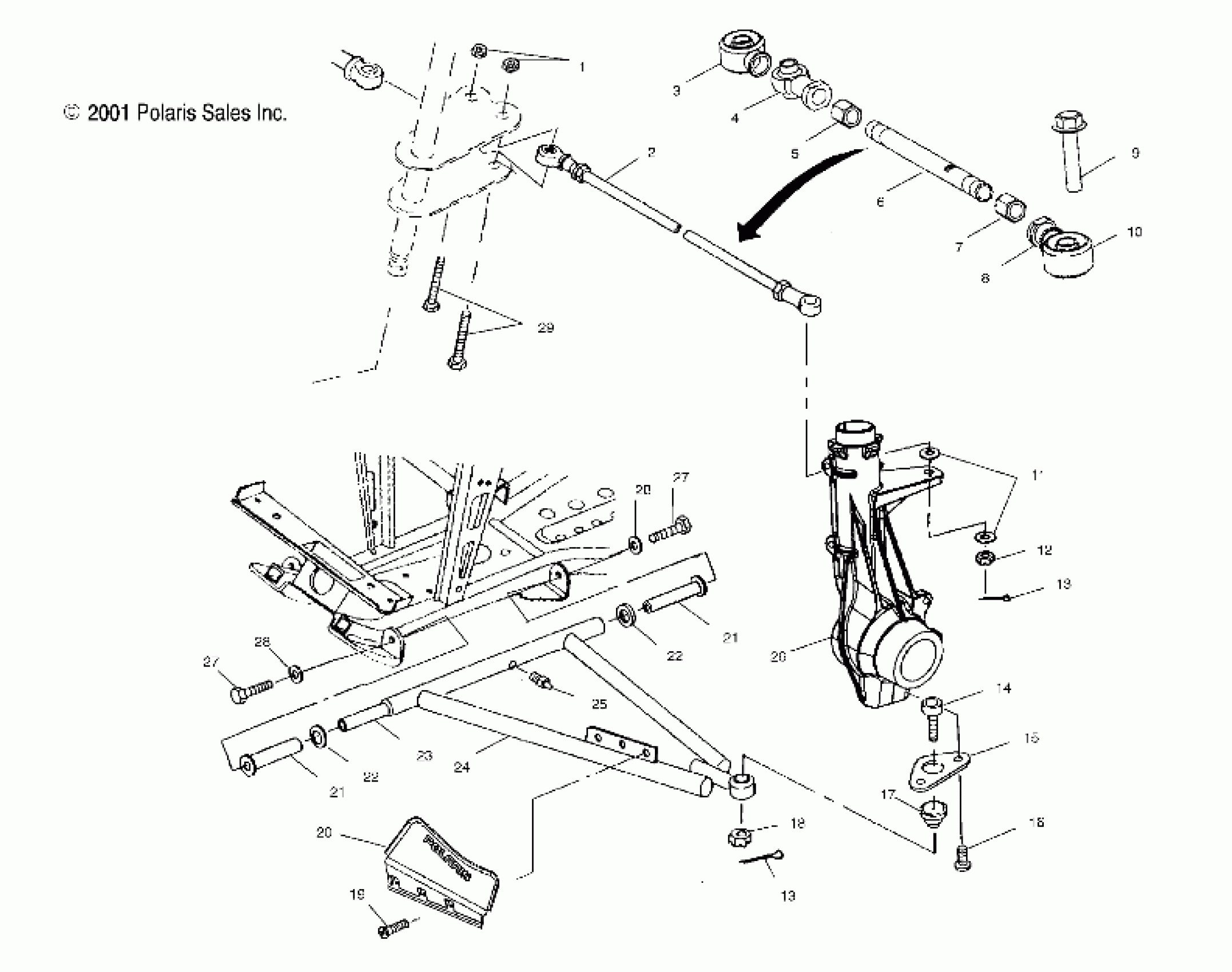

Polaris 500 MAGNUM VL HDS - A02CD50FB A-ARM/STRUT MOUNTING - A02CD50AA/AB/FB (4970197019B08) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

2

TIE,ROD,1/2-20X13.4,ASM. (Incl. 3-8)

1820805

Unavailable

3

SEAL,BOOT,ROD END,1/2 IN

5411291

Unavailable

4

ROD END,RH

7061034

$54.04

5

NUT-JAM(10)

7542711

$2.39

6

ROD,TIE

5020926

$39.99

7

NUT,LH,JAM(10)

7547028

$2.39

8

ROD,END,10MM,1/2-20LH,42 DEG

7061054

Unavailable

9

BOLT-M10X1.25X57 HX WASH HD Substituted by 7517909

7517674

Unavailable

10

BOOT,SEAL,ROD END,10MM

5411920

Unavailable

11

Washer

7556099

$1.59

12

NUT, CASTLE(10)

7546904

$4.79

13

PIN COTTER(10)

7661203

$1.49

13

PIN COTTER(10)

7661203

$1.49

14

BALL-JOINT,52 DEG,ATV

7080927

$76.89

15

BRACKET-BALL JOINT

5211121

$31.99

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

17

Boot, Rubber

5410548

Unavailable

18

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

19

SCREW(10)

7512084

$1.49

20

SHIELD-CV,FRONT,BLACK,RH

5433928-070

Unavailable

20

SHIELD-CV,FRONT,BLACK,LH

5433927-070

Unavailable

21

BUSHING,A ARM,LONG

5434551

$5.01

21

BUSHING,A ARM,LONG

5434551

$5.01

22

BUSHING,A-ARM SPACER(10)

5020677

$10.39

22

BUSHING,A-ARM SPACER(10)

5020677

$10.39

23

Shaft, A-Arm

5020681

Unavailable

24

A-FRAME,KIT,LH (1541444)

2201609

$131.43

24

A-FRAME,KIT,RH (1541445)

2201610

Unavailable

25

ZERK,FITTING,THREADED(10)

7080433

$1.49

26

ASM., HUBSTRUT (See Front Strut Pg. B9, Ref. 11) (See Front Strut Pg. B9, Ref. 11)

-------

Unavailable

27

SCREW(10)

7512492

$1.49

27

SCREW(10)

7512492

$1.49

28

WASHER(10)

7552603

$1.49

28

WASHER(10)

7552603

$1.49

29

BOLT(10)

7515415

$1.49
