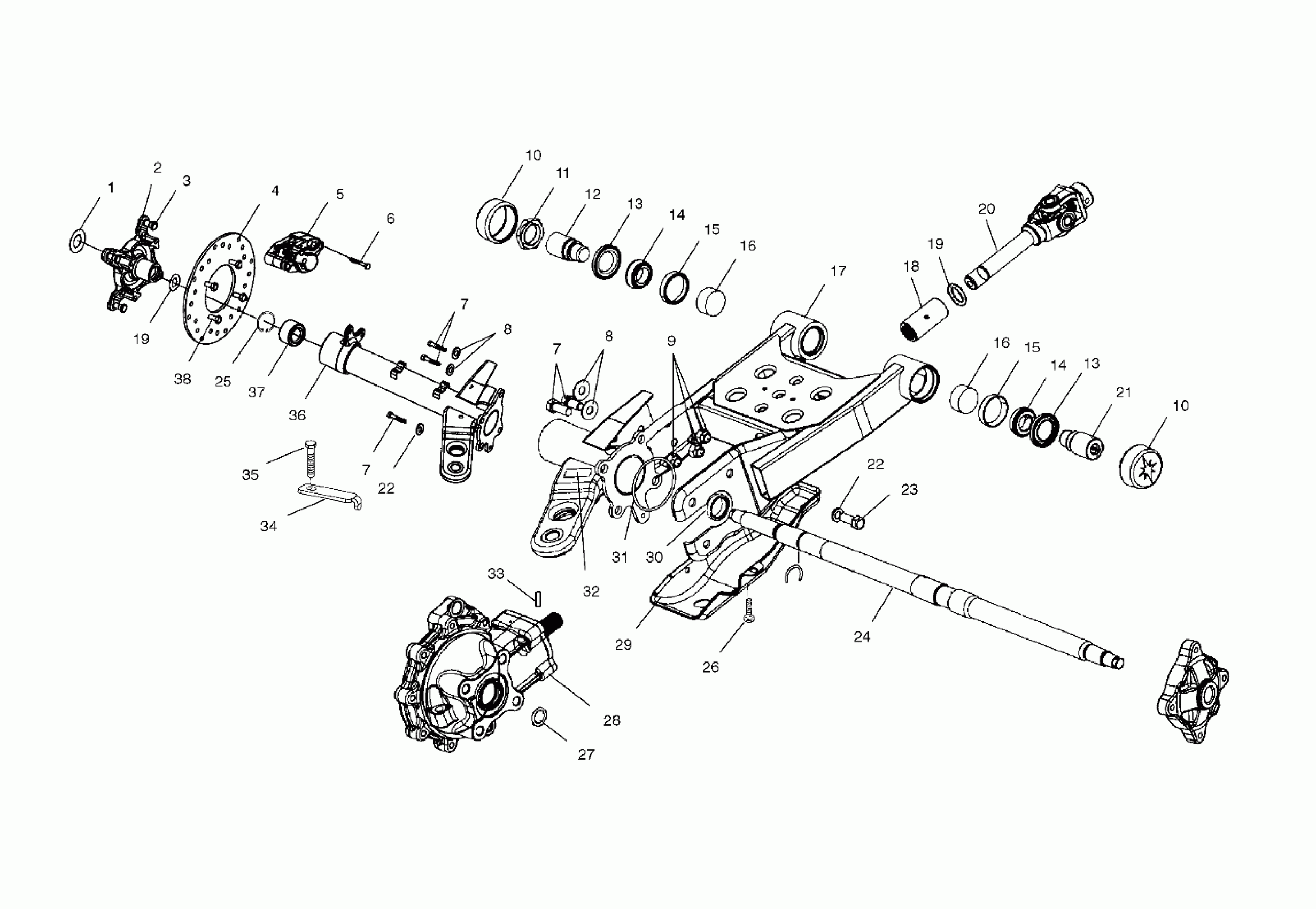

Polaris 500 MAGNUM 500 HDS - A01CD50FB SWING ARM/REAR GEARCASE MOUNTING - A01CD50FB (4964196419D003) Diagram

#

Description
Price

1

O-RING-0.739X0.879X0.070

5412022

Unavailable

2

HUB,WHEEL,4WD,MACH

5131935

Unavailable

3

STUD(10)

7515523

$3.19

4

DISC-BRAKE,REAR,8.125X.188

5244882

$94.99

5

Asm., Brake Caliper (See Rear Brake Pg. C8, Ref. 2)

-------

Unavailable

6

SCREW,SS.

7517481

Unavailable

7

Bolt

7517604

Unavailable

7

Bolt

7517604

Unavailable

7

Bolt

7517604

Unavailable

8

WASHER(10)

7555721

$1.49

8

WASHER(10)

7555721

$1.49

9

NUT FLEX,(10)

7542703

Unavailable

10

CAP,SWINGARM PIVOT

5411532

Unavailable

10

CAP,SWINGARM PIVOT

5411532

Unavailable

11

NUT,JAM,SWINGARMPIVOT

5131863

Unavailable

12

PIVOT,SWINGARM,THREADED

5131864

Unavailable

13

SEAL,SWINGARM PIVOT

3610072

Unavailable

13

SEAL,SWINGARM PIVOT

3610072

Unavailable

14

BRG,TAPER.ROLL.CONE

3554506

$31.99

14

BRG,TAPER.ROLL.CONE

3554506

$31.99

15

BRG,TAPER,ROLL CUP

3554507

$31.99

15

BRG,TAPER,ROLL CUP

3554507

$31.99

16

SEAL-SWINGARM PIVOT

5411602

Unavailable

16

SEAL-SWINGARM PIVOT

5411602

Unavailable

17

SWINGARM,ASM. (Incl. 15,16)

1541577

$243.16

18

ZERK,FITTING,THREADED(10)

7080433

$1.49

18

COUPLING-PROP SHAFT,GREASED

5132201

$59.99

19

O-RING

5411092

$1.60

19

O-RING

5411092

$1.60

20

PROPSHAFT ASM,REAR

1380137

$204.99

21

PIVOT-SWINGARM,RH

5132683

Unavailable

22

LOCK WASHER(10)

7553201

$3.99

22

LOCK WASHER(10)

7553201

$3.99

23

BOLT-1/2-13X1 1/4 HXHD GR5-Z

7517585

$4.79

24

AXLE-REAR

5132699

Unavailable

25

RING,RET.,2.500 INTERNAL

7710507

$2.39

26

Screw

7517612

Unavailable

27

O-Ring

5411531

Unavailable

28

Asm., Gearcase, Rear (See Rear Housing Pg. C13 for Details)

-------

Unavailable

29

SKID PLATE,REAR

1012881

$58.39

29

PLATE-SKID,REAR HOUSING,BLK

5242851-067

$19.83

29

PAD-RUBBER

5811716

Unavailable

30

COLLAR-AXLE LOCK

5132698

Unavailable

31

O-Ring

5411707

Unavailable

32

DECAL-HITCH (1225)

7078261

Unavailable

33

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

34

CLAMP-BRAKE LINE,REAR

5245050

$1.75

35

SCREW(10)

7512017

$4.79

36

AXLE, TUBE, LH, BLACK

1013264-067

Unavailable

37

BEARING,HUBSTRUT,VISCO

3514342

Unavailable

38

BOLT(10)

7512325

$2.39
