Description

Price

1

HUB,BRAKE DISC,MACH

5132152

Unavailable

2

Asm., Rear Brake Caliper (See Rear Brake Pg C8, Ref. 2)

-------

Unavailable

3

BEARING,BALL,DBL.SEAL

3513523

$31.99

4

SHIELD-BRAKE LINE,REAR

5411653

$7.43

5

Bolt

7517604

Unavailable

5

Bolt

7517604

Unavailable

6

SCREW(10)

7512084

$1.49

7

WASHER(10)

7555721

$1.49

8

NUT FLEX,(10)

7542703

Unavailable

9

CAP,SWINGARM PIVOT

5411532

Unavailable

9

CAP,SWINGARM PIVOT

5411532

Unavailable

10

NUT,JAM,SWINGARMPIVOT

5131863

Unavailable

11

PIVOT,SWINGARM,THREADED

5131864

Unavailable

12

SEAL,SWINGARM PIVOT

3610072

Unavailable

12

SEAL,SWINGARM PIVOT

3610072

Unavailable

13

BRG,TAPER.ROLL.CONE

3554506

$31.99

13

BRG,TAPER.ROLL.CONE

3554506

$31.99

14

BRG,TAPER,ROLL CUP

3554507

$31.99

14

BRG,TAPER,ROLL CUP

3554507

$31.99

15

SEAL-SWINGARM PIVOT

5411602

Unavailable

15

SEAL-SWINGARM PIVOT

5411602

Unavailable

16

SWINGARM,ASM. (Incl. 14,15)

1541577

$243.16

17

ZERK,FITTING,THREADED(10)

7080433

$1.49

17

COUPLING-PROP SHAFT,GREASED

5132201

$59.99

18

O-RING

5411092

$1.60

18

O-RING

5411092

$1.60

19

PROPSHAFT ASM,REAR

1380137

$204.99

20

PIVOT-SWINGARM,RH

5132683

Unavailable

21

BOLT-1/2-13X1 1/4 HXHD GR5-Z

7517585

$4.79

22

O-Ring

5411531

Unavailable

23

RING,RETAINING

7710482

Unavailable

24

COLLAR,R.AXLE LOCK

5131930

Unavailable

25

AXLE,REAR

5131862

$259.59

26

Screw

7517612

Unavailable

27

SKID PLATE,REAR

1012881

$58.39

27

PLATE-SKID,REAR HOUSING,BLK

5242851-067

$19.83

27

PAD-RUBBER

5811716

Unavailable

28

Asm., Gearcase, Rear (See Rear Housing Pg. C13 for Details)

-------

Unavailable

29

O-Ring

5411707

Unavailable

30

DECAL-HITCH (1225)

7078261

Unavailable

31

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

32

LOCK WASHER(10)

7553201

$3.99

32

LOCK WASHER(10)

7553201

$3.99

33

AXLE TUBE,WELD,LH,BLK

1013193-067

Unavailable

34

BOLT(10)

7515481

$2.63

35

SPACER-BEARING

5132075

Unavailable

36

RING,RETAINER,INT.

7710471

$13.59

37

SEAL,REAR AXLE

3610071

$15.99

38

DISC,BRK,7.00 OD,.188 THK

5243678

Unavailable

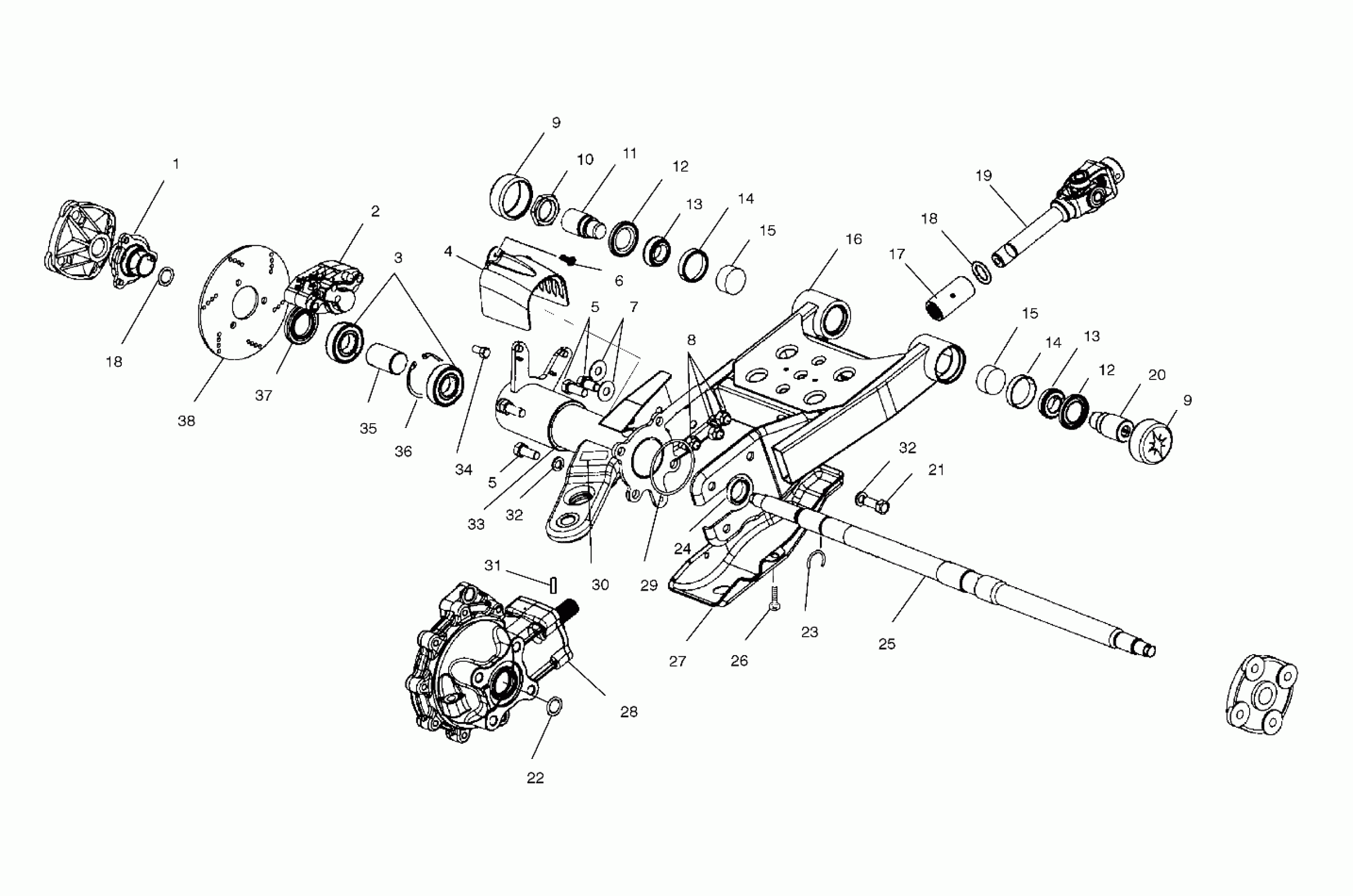

Polaris 500 MAGNUM 500 HDS - A01CD50FB SWING ARM/REAR GEARCASE MOUNTING - A01CD50AA (4964196419D002) Diagram

HUB,BRAKE DISC,MACH

Asm., Rear Brake Caliper (See Rear Brake Pg C8, Ref. 2)

BEARING,BALL,DBL.SEAL

SHIELD-BRAKE LINE,REAR

Bolt

Bolt

SCREW(10)

WASHER(10)

NUT FLEX,(10)

CAP,SWINGARM PIVOT

CAP,SWINGARM PIVOT

NUT,JAM,SWINGARMPIVOT

PIVOT,SWINGARM,THREADED

SEAL,SWINGARM PIVOT

SEAL,SWINGARM PIVOT

BRG,TAPER.ROLL.CONE

BRG,TAPER.ROLL.CONE

BRG,TAPER,ROLL CUP

BRG,TAPER,ROLL CUP

SEAL-SWINGARM PIVOT

SEAL-SWINGARM PIVOT

SWINGARM,ASM. (Incl. 14,15)

ZERK,FITTING,THREADED(10)

COUPLING-PROP SHAFT,GREASED

O-RING

O-RING

PROPSHAFT ASM,REAR

PIVOT-SWINGARM,RH

BOLT-1/2-13X1 1/4 HXHD GR5-Z

O-Ring

RING,RETAINING

COLLAR,R.AXLE LOCK

AXLE,REAR

Screw

SKID PLATE,REAR

PLATE-SKID,REAR HOUSING,BLK

PAD-RUBBER

Asm., Gearcase, Rear (See Rear Housing Pg. C13 for Details)

O-Ring

DECAL-HITCH (1225)

PIN-SPRING,5/16 X 1 5/8-Y

LOCK WASHER(10)

LOCK WASHER(10)

AXLE TUBE,WELD,LH,BLK

BOLT(10)

SPACER-BEARING

RING,RETAINER,INT.

SEAL,REAR AXLE

DISC,BRK,7.00 OD,.188 THK
