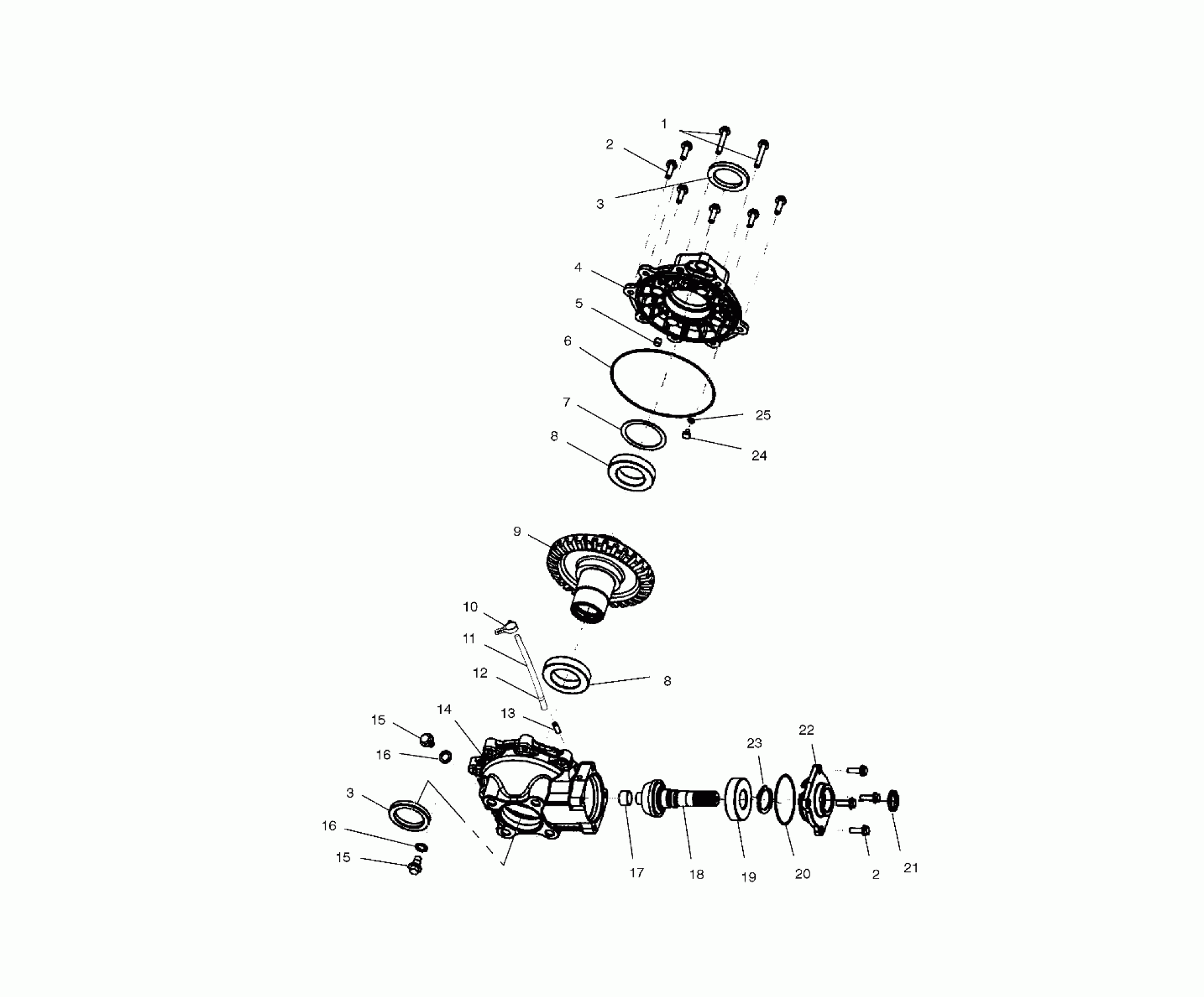

Polaris 500 MAGNUM 500 HDS - A01CD50FB REAR HOUSING - A01CD50AA (4964196419C013) Diagram

#

Description
Price

-

GEARCASE,ASM,REAR (Incl. 1-9, 13-25)

1341342

Unavailable

1

Screw

3233585

Unavailable

2

Screw

3233252

$5.27

2

Screw

3233252

$5.27

3

Seal

3233256

Unavailable

3

Seal

3233256

Unavailable

4

COVER-OUTPUT,REAR HOUSING

3233753

$229.37

5

PIPE,KNOCK

3233529

$7.99

6

O-RING 166

3233587

$32.37

7

SHIM 3.1 X 2.5

3233581

Unavailable

8

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

8

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

9

GEAR,31T

3233740

Unavailable

10

CLIP,SILENCER,(10)

7670102

$2.39

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

12

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

13

TUBE,VENT

3233524

$7.19

14

GEARCASE,REAR HOUSING

3233739

Unavailable

15

PLUG,OIL FILL

3233711

Unavailable

15

PLUG,OIL FILL

3233711

Unavailable

16

Washer

3233324

$8.99

16

Washer

3233324

$8.99

17

Bushing

3233577

$19.99

18

SHAFT-PINION,10T

3233768

Unavailable

19

BEARING-BALL

3233714

$31.99

20

O-RING 151

3233588

$10.55

21

Seal

3233319

$27.99

22

GEARCASE,COVER

3233573

Unavailable

23

RING-RETAINING

3233699

$7.19

24

THRUST BUTTON

3233582

$7.91

25

SHIM .450 X .265

3233583

Unavailable
