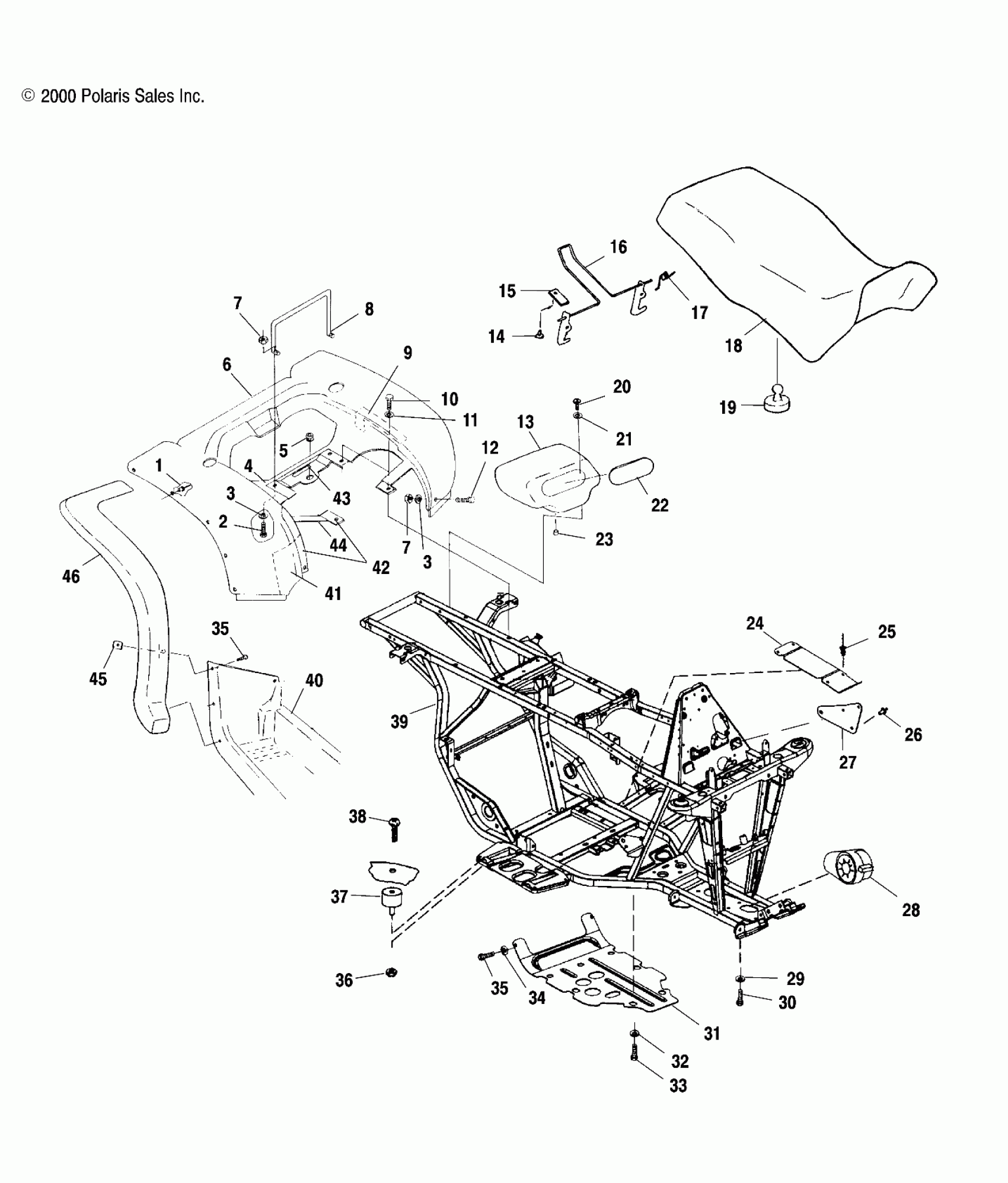

Polaris 500 MAGNUM 500 HDS - A01CD50FB REAR CAB and SEAT - A01CD50AA (4964196419A003) Diagram

#

Description
Price

1

RIVET(50) (AA)

7661645

$3.99

2

SCREW(10)

7511930

$2.39

3

WASHER(10)

7555792

$4.79

3

WASHER(10)

7555792

$4.79

4

FOIL,REAR CAB,REAR

5811107

$6.46

5

Grommet

5411042

Unavailable

6

CAB-REAR,GEN 4,GUNMETAL

5432117-317

Unavailable

7

NUT(10)

7541925

$1.49

7

NUT(10)

7541925

$1.49

8

RETAINER,SEAT LATCH

5224592

Unavailable

9

FOIL,TAPE,3 X 12

5811308

$12.79

10

SCREW(10)

7512242

$2.39

11

WASHER, FLAT(10)

7555859

$1.49

12

SCREW(10) Substituted by 7511989

7512085

Unavailable

13

TOOLBOX

5431786

$53.59

14

BLIND RIVET(50)

7621403

$1.49

15

BRACKET,LEVER RETAINER

5211033

$29.25

16

LATCH,SEAT

1040387

$47.99

17

SPRING, LATCH

7041370

$9.59

18

COVER,SEAT,BLK.

2681747-070

$141.65

18

SEAT,BLK

2682441-070

$424.98

18

FOIL,SEATBASE,LG.

5811104

Unavailable

18

FOIL,SEATBASE,SM.

5811105

$9.91

19

BUMPER-RUBBER

5412067

$3.99

20

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

21

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

22

COVER, TOOLBOX

5431787

Unavailable

23

CAP,DRAIN

5410896

$5.59

24

GUARD-CLUTCH,BLK

5243188-067

$5.75

25

RIVET-3/16-.090-.290

7661637

$1.49

26

RIVET,PLASTI-LOC.(50)

7621509

$1.49

27

STRAP-FUEL PUMP,MTG,BLK

5243829-067

Unavailable

28

Asm., Gearcase (See Front Housing Page for Details)

-------

Unavailable

29

WASHER(10)

7552603

$1.49

30

SCREW(10)

7512492

$1.49

31

GUARD-ROCK

5433435

Unavailable

32

WASHER-SKID PLATE

7556065

$4.79

33

SCREW,(10)

7517386

$1.49

34

WASHER(10)

7558301

$1.49

35

BOLT(10)

7512232

$1.49

35

BOLT(10)

7512232

$1.49

36

NUT-LOCK(10)

7542122

$1.49

37

MOUNT,RUBBER

5411548

$27.99

38

Screw

7517264

$3.99

39

FRAME,MAIN 4X4 MAG,BLK (FB)

1013263-067

Unavailable

39

FRAME MAIN,MAG,BLK (AA)

1013382-067

Unavailable

40

DESC NOT_AVAILABLE

5432221-070

$230.70

40

DESC NOT_AVAILABLE

5433219-070

$230.70

41

FOIL FOAM

5811111

$32.37

42

FOIL,FR,REAR CAB

5811106

$8.89

43

DECAL-4 STRK,CARB/FILTER INFO

7079902

Unavailable

44

FOIL-FOAM,(6X1)

5811087

Unavailable

45

NUT, SPEED(10)

7670057

$1.49

46

WASHER,NYLON(10) (AA)

7555916

$1.59

46

GUARD-MUD,REAR,LH,BLK (AA)

5431796-070

Unavailable

46

GUARD-MUD,REAR,RH,BLK (AA)

5431797-070

Unavailable

46

KIT-MUDSKIRT,FULLSET,GEN IV [Item NotAvailable] (FB)

2873213

Unavailable
