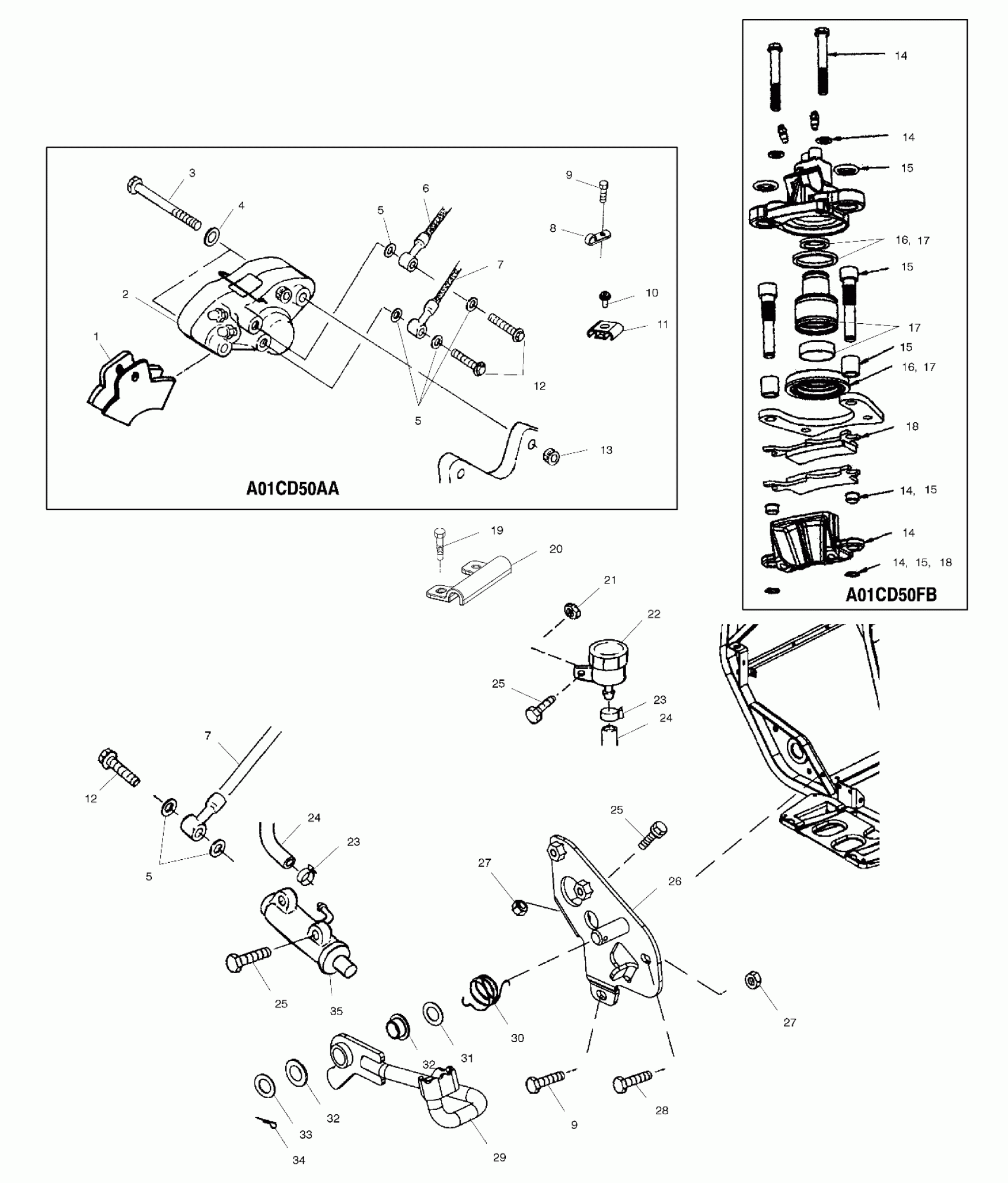

Polaris 500 MAGNUM 500 HDS - A01CD50FB REAR BRAKE - A01CD50AA (4964196419C007) Diagram

#

Description
Price

1

KIT, BRACKET PAD (Incl. Spacer and Pin)

2201093

Unavailable

2

CALIPER ASM,BRAKE,DH4P (FB)

1910425

Unavailable

2

KIT,SEAL,CALIPER,WW (AA)

2201180

$64.75

2

BLEEDER REPLACEMENT,KIT (AA)

2201428

$27.99

2

PISTON-STEPPED BORE (AA)

2201181

$83.33

2

CALIPER,WW,DH2P,AFT,ASM. (AA)

1910449

$250.96

3

SCREW CAP(10) (AA)

7515406

$7.19

3

BOLT(10) (FB)

7515481

$2.63

4

WASHER(10) (FB)

7552603

$1.49

4

WASHER(10) (AA)

7555806

$1.49

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

6

LINE, BRAKE (See Controls-Master Cylinder/Brake Line Pg. B11, Ref. 8)

-------

Unavailable

7

LINE-BRAKE,FT M/C TO RR,SRS,CH (FB)

1910516

Unavailable

7

LINE-BRAKE,FT M/C TO RR,SRS (AA)

1910477

Unavailable

7

LINE-BRAKE,FT M/C TO RR,SRS,CH (FB)

1910516

Unavailable

7

LINE-BRAKE,FT M/C TO RR,SRS (AA)

1910477

Unavailable

8

CLAMP-CABLE,NYLON,5/16"

7080960

$4.79

9

BOLT(10)

7512232

$1.49

9

BOLT(10)

7512232

$1.49

10

SCREW(10)

7512084

$1.49

11

CLIP-RETAINING,DUAL .250" LINE

7670126

$4.79

12

BOLT,BANJO,BRAKE

1930674

Unavailable

12

BOLT,BANJO,BRAKE

1930674

Unavailable

13

NUT LOCK(10)

7542403

$3.99

14

KIT-ANVIL BODY

2201873

$147.99

14

KIT-ANVIL BODY

2201873

$147.99

14

KIT-ANVIL BODY

2201873

$147.99

14

KIT-ANVIL BODY

2201873

$147.99

14

KIT-ANVIL BODY

2201873

$147.99

15

KIT-SLIDE BOLT,DH4P

2201870

$63.99

15

KIT-SLIDE BOLT,DH4P

2201870

$63.99

15

KIT-SLIDE BOLT,DH4P

2201870

$63.99

15

KIT-SLIDE BOLT,DH4P

2201870

$63.99

15

KIT-SLIDE BOLT,DH4P

2201870

$63.99

16

KIT-SEAL,DH4P

2201872

$63.99

16

KIT-SEAL,DH4P

2201872

$63.99

17

KIT-PISTON & SEAL,DH4P

2201869

$119.99

17

KIT-PISTON & SEAL,DH4P

2201869

$119.99

17

KIT-PISTON & SEAL,DH4P

2201869

$119.99

18

KIT-BRAKE PAD,DH4P

2201871

$27.99

18

KIT-BRAKE PAD,DH4P

2201871

$27.99

19

SCREW(10)

7512084

$1.49

20

CLAMP-BRAKE LINE

5434041

Unavailable

21

NUT(10)

7542153

$1.59

22

RESERVOIR ASM,R.BRAKE

1930854

$35.99

23

HOSE CLAMP, RED

7080003

$1.49

23

HOSE CLAMP, RED

7080003

$1.49

24

HOSE-RESERVOIR,HB

1910331

$4.95

24

HOSE-RESERVOIR,HB

1910331

$4.95

25

SCREW(10)

7515158

$4.79

25

SCREW(10)

7515158

$4.79

25

SCREW(10)

7515158

$4.79

26

MT,PIVOT,R.BRAKE,BLK.

1012753-067

Unavailable

27

NUT-LOCK(10)

7542122

$1.49

27

NUT-LOCK(10)

7542122

$1.49

28

BOLT(10)

7512240

$3.99

29

BRAKE ROD,HB,PVT,BLK

1012752-067

Unavailable

30

SPRING-TORSION,BRAKE

7041750

$8.79

31

WASHER(10)

7555919

$4.99

32

BUSHING-PEDAL PIVOT

5433189

$3.99

32

BUSHING-PEDAL PIVOT

5433189

$3.99

33

WASHER,SPRING

7556090

$2.63

34

COTTER PIN(10)

7661401

$1.49

35

BRAKE MSTR CYL,FOOT,BANJO

1910311

$166.01
