Description

Price

-

GEARCASE,SHAFT 4WD,500,ASM. (Incl. 1-67)(AA)

1341363

Unavailable

-

GEARCASE,SIL CHAIN,INT'L,ASM (Incl. all less 49)(FB)

1341374

Unavailable

1

Seal

3233788

$31.99

1

Seal

3233788

$31.99

1

Seal

3233788

$31.99

2

Screw

3233252

$5.27

2

Screw

3233252

$5.27

3

GEARCASE,LH (AA)

3233610

Unavailable

3

COVER-W/PARK LOCK,LH (FB)

3233763

Unavailable

4

PIPE,KNOCK

3233529

$7.99

4

PIPE,KNOCK

3233529

$7.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

6

SHAFT-INPUT

3233756

Unavailable

7

CHAIN,SILENT,34P

3233036

Unavailable

8

GEAR-16T W/19T SPLINE (AA)

3233770

$94.39

8

GEAR-14/19T (FB)

3233755

$135.71

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

10

Nut, Lock (AA)

3233961

$2.79

11

WASHER

-------

Unavailable

12

Bellcrank

3233153

$27.99

13

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

14

Washer

3233040

$9.59

15

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

16

Vent

3233037

Unavailable

17

SCREW

3233749

$5.59

17

SCREW

3233749

$5.59

18

SWITCH (Qty. 2 for FB)

3234019

Unavailable

19

GEARCASE,RH (AA)

3233902

Unavailable

19

GEARCASE-MAIN (FB)

3233765

$989.99

20

PLUG,OIL FILL

3233711

Unavailable

21

Washer

3233872

$9.59

22

Washer

3233628

Unavailable

23

ENGAGEMENT DOG,LOW (AA)

3233732

$169.98

23

ENGAGEMENT-LOW/PARK (FB)

3233758

$115.99

24

RING,RETAINING

3233306

$4.79

24

RING,RETAINING

3233306

$4.79

25

WASHER,THRUST

3233619

$21.99

25

WASHER,THRUST

3233619

$21.99

25

WASHER,THRUST

3233619

$21.99

26

GEAR,35T (AA)

3233631

$133.59

26

GEAR-36T (FB)

3233760

$146.39

27

BEARING, NEEDLE

3233103

$31.99

27

BEARING, NEEDLE

3233103

$31.99

28

SHIFT FORK

3233602

Unavailable

29

SHAFT REVERSE (AA)

3233598

Unavailable

29

SHAFT-REVERSE (FB)

3233761

Unavailable

30

WASHER

3233012

Unavailable

30

WASHER

3233012

Unavailable

31

BEARING, NEEDLE

3233014

$43.99

32

SPROCKET,24T

3233599

Unavailable

33

RING,RETAINING

3233029

$5.59

34

DOG,ENGAGE,12PT,HI/REV

3234020

Unavailable

35

GEAR,30T

3233600

$198.32

36

Spacer

3233613

$3.51

37

GEAR,HELICAL,40T

3233601

Unavailable

37

GEAR,HELICAL,36T (FB)

3233708

Unavailable

38

BRACKET,INTERLOCK

3233309

$20.63

39

Spring

3233032

$12.94

40

PIN,INTERLOCK

3233308

Unavailable

41

SCREW-TAPPING,W/LOCK WASHER

3233747

Unavailable

42

GEAR,HELICAL 44T (AA)

3233612

Unavailable

42

GEAR,HELICAL,48T (FB)

3233709

$178.57

43

Screw (Qty. 8 for FB)

3233608

$5.99

43

Screw (Qty. 8 for FB)

3233608

$5.99

44

COVER,BEARING

3233609

$19.99

45

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

46

BEARING,BALL

3233607

$36.41

47

Subasm., Ground Spiral Bevel [Incl. 52]

3234912

$595.54

48

SHIFT,FORK,LOW (AA)

3233605

Unavailable

48

FORK-SHIFT,LOW/PARK (FB)

3233759

$206.39

49

SWITCH,ITW 2 POSITION (AA)

3234001

Unavailable

50

PLATE-PARKLOCK (FB)

3233757

$51.59

51

SPROCKET, 22T/18T (FB)

3233873

$99.99

51

SPROCKET,12T (AA)

3233620

Unavailable

52

Subasm., Ground Spiral Bevel [Incl. 47]

3234912

$595.54

53

SHAFT,REAR OUTPUT

3233622

Unavailable

54

THRUST BUTTON

3233582

$7.91

55

SHIM .450 X .265

3233583

$26.39

56

COVER-OUTPUT,FRONT

3233781

$275.22

57

PLUG, DRAIN Substituted by 3233777

3233777

$34.99

58

Washer

3234035

Unavailable

59

SHIM

3233611

Unavailable

60

SHAFT,FRONT OUTPUT

3233625

$139.99

61

SPROCKET-22T (FB)

3233844

$127.59

61

SPROCKET (12T) (AA)

3233093

Unavailable

62

ROLLER CHAIN,24P (AA)

3233626

Unavailable

62

CHAIN-SILENT,REXNORD (FB)

3233784

$87.99

63

BUSHING-GARLOCK

3233552

$23.99

64

SHIFT SHAFT

3233624

$58.73

65

SHIFT SHAFT

3233627

Unavailable

66

O-Ring

3233548

$27.99

67

RING,RETAINING

3233618

$1.75

68

SPACER

3233357

$21.99

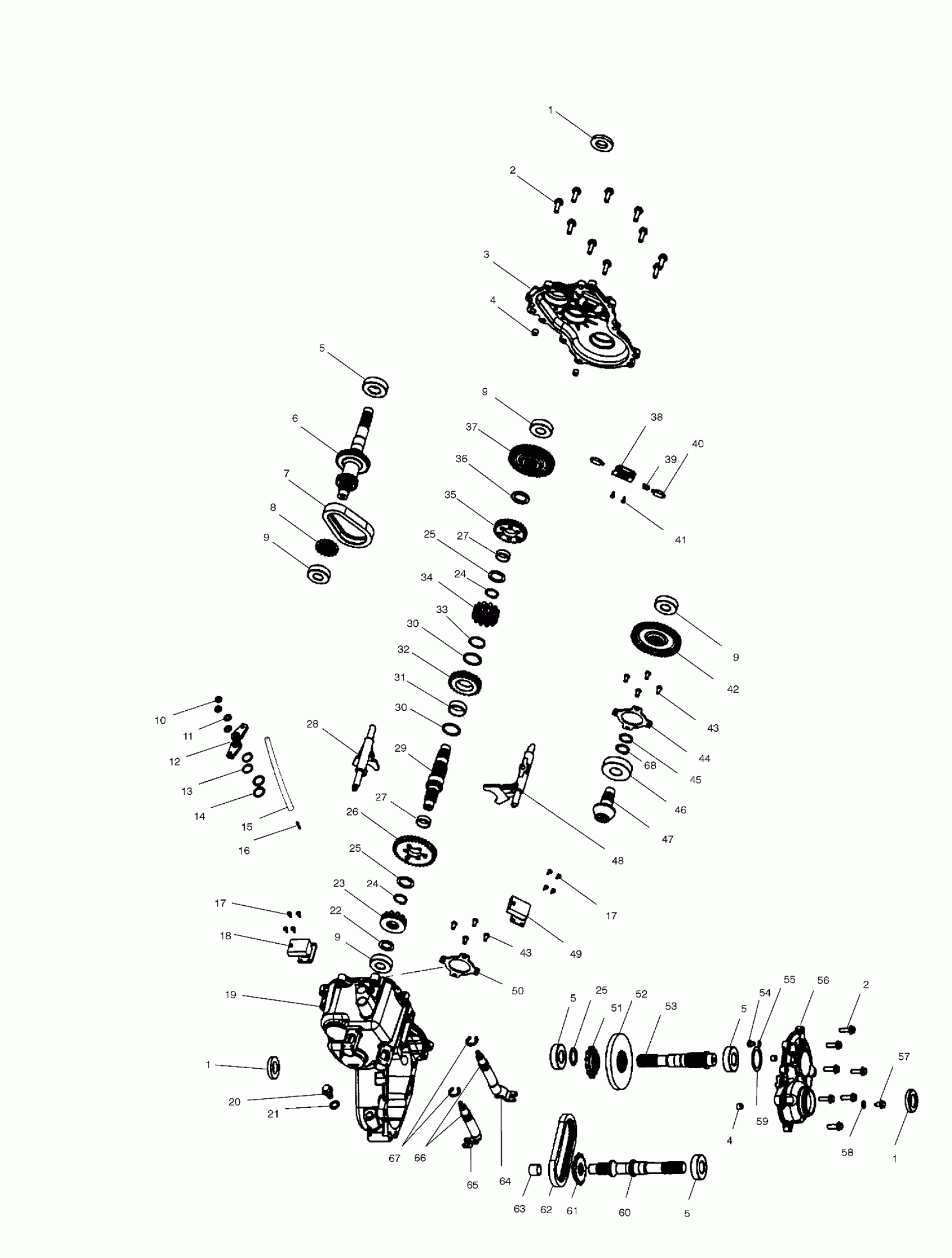

Polaris 500 MAGNUM 500 HDS - A01CD50FB MAIN GEARCASE - A01CD50AA (4964196419C011) Diagram

GEARCASE,SHAFT 4WD,500,ASM. (Incl. 1-67)(AA)

GEARCASE,SIL CHAIN,INT'L,ASM (Incl. all less 49)(FB)

Seal

Seal

Seal

Screw

Screw

GEARCASE,LH (AA)

COVER-W/PARK LOCK,LH (FB)

PIPE,KNOCK

PIPE,KNOCK

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

SHAFT-INPUT

CHAIN,SILENT,34P

GEAR-16T W/19T SPLINE (AA)

GEAR-14/19T (FB)

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

Nut, Lock (AA)

WASHER

Bellcrank

RING,RETAINING BASIC,EXTERNAL 0.75

Washer

FUEL LINE,1/8 ID,600 CM.

Vent

SCREW

SCREW

SWITCH (Qty. 2 for FB)

GEARCASE,RH (AA)

GEARCASE-MAIN (FB)

PLUG,OIL FILL

Washer

Washer

ENGAGEMENT DOG,LOW (AA)

ENGAGEMENT-LOW/PARK (FB)

RING,RETAINING

RING,RETAINING

WASHER,THRUST

WASHER,THRUST

WASHER,THRUST

GEAR,35T (AA)

GEAR-36T (FB)

BEARING, NEEDLE

BEARING, NEEDLE

SHIFT FORK

SHAFT REVERSE (AA)

SHAFT-REVERSE (FB)

WASHER

WASHER

BEARING, NEEDLE

SPROCKET,24T

RING,RETAINING

DOG,ENGAGE,12PT,HI/REV

GEAR,30T

Spacer

GEAR,HELICAL,40T

GEAR,HELICAL,36T (FB)

BRACKET,INTERLOCK

Spring

PIN,INTERLOCK

SCREW-TAPPING,W/LOCK WASHER

GEAR,HELICAL 44T (AA)

GEAR,HELICAL,48T (FB)

Screw (Qty. 8 for FB)

Screw (Qty. 8 for FB)

COVER,BEARING

RING,RETAINING BASIC,EXTERNAL 0.984

BEARING,BALL

Subasm., Ground Spiral Bevel [Incl. 52]

SHIFT,FORK,LOW (AA)

FORK-SHIFT,LOW/PARK (FB)

SWITCH,ITW 2 POSITION (AA)

PLATE-PARKLOCK (FB)

SPROCKET, 22T/18T (FB)
