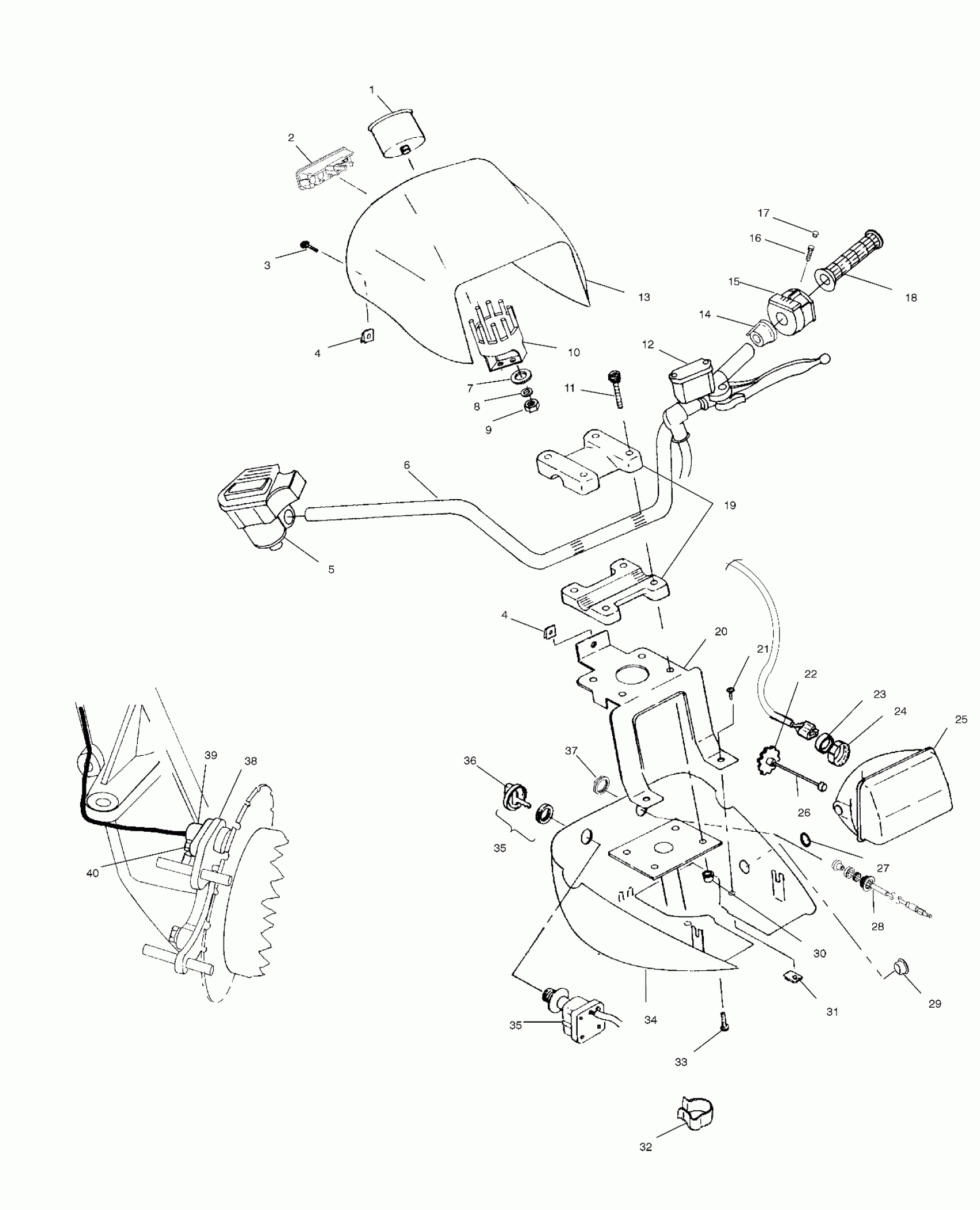

Polaris 500 MAGNUM 500 HDS - A01CD50FB HANDLEBAR and HEADLIGHT POD - A01CD50AA (4964196419B013) Diagram

#

Description
Price

1

SPEEDOMETER ASM,3.38",6-P,KILO (FB)

3280377

Unavailable

1

SPEEDOMETER,3.38",6-PULSE (AA)

3280363

Unavailable

2

PANEL-INDICATOR LIGHT 3 POS. Substituted by 4010459

4010315

Unavailable

2

BULB-INDICATOR,HOBBS

4010416

$9.59

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

NUT

7670086

$3.99

4

NUT

7670086

$3.99

5

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B10, Ref. 5)

-------

Unavailable

6

TUBE-HANDLEBAR,GEN 4,POD,BLK (AA)

5242987-067

$114.99

6

HANDLEBAR,GEN 4,WIDE,BLK (FB)

5245181-067

$38.59

7

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

8

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

9

NUT, BRASS(10)

7541933

$4.99

10

CLAMP,BACK,ELEC.SPEEDO,3.38"

3280291

Unavailable

11

SCREW(10)

7515189

Unavailable

12

Asm., Master Cylinder (See Controls - Master Cylinder/Brake Line Page for details)

-------

Unavailable

13

POD-HEADLIGHT,UPPER,GUN METAL

5433763-317

Unavailable

14

SPACER-SWITCH,LH,99

5433903

Unavailable

15

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$203.99

16

SCREW,SET

7517625

$4.79

17

PLUG,HOLE(10)

5432952

$5.59

18

GRIP-HNDLBAR,7/8 ID,ATV,BLACK

5433834-070

$24.27

19

KIT,H'BAR BLOCK (Incl. Blocks and 11,19,30)

2200774

Unavailable

19

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

20

BRKT-POD MOUNTING,BLK (FB)

5244969-067

$44.99

20

BRKT,POD MTG,BLK. (AA)

5240586-067

Unavailable

21

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

22

KNOB,ADJUSTING

4032079

$23.99

23

BOOT, HEADLIGHT

5411120

$27.99

24

COLLAR,LOCK

4032077

$27.99

25

BULB,QUARTZ.H/L,INDY

2870448

$24.99

25

LENS&REFLECTOR ASM.

4032075

Unavailable

26

ROD,ADJUSTING

4032078

Unavailable

27

O RING

5410163

$1.60

28

KIT-CHOKE CONTROL (If built before 6/19/00)

2200188

$24.27

28

CABLE-CHOKE,FRICTION,40" (If built after 6/19/00)

7081008

$79.99

28

CABLE,CHOKE,W/ADJUSTER (If built before 6/19/00)

7080726

$99.99

29

CAPLUG,#BPF-7/8"-6 BLACK

7080936

$2.39

30

NUT-LOCK(10)

7542122

$1.49

31

NUT,U-TYPE(10)

7670089

$5.59

32

CLIP,CABLE RETAIN,(10)

7080631

$6.29

33

SCREW(10)

7522021

$3.99

34

POD-HEADLIGHT,LOWER,SNAP,BLK

5433762-070

$114.99

35

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by amting it with your existing key.

4010278

Unavailable

35

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by amting it with your existing key.

4010321

Unavailable

35

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

35

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

35

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by amting it with your existing key.

4010278

Unavailable

35

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by amting it with your existing key.

4010321

Unavailable

35

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

35

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

36

KEY SWITCH KEY COVER

5433534

$12.35

37

NUT (Use with 7080726)

7080229

$19.99

37

NUT,CHOKE,M24X1.5 THD,M29 HEX (Use with 7080902)

7080922

$3.19

38

SENSOR,HALLEFFECT (Incl. 39)

4010298

$111.99

39

CAP-HALL SENSOR

5132382

$23.99

40

Screw

7517658

$5.59
