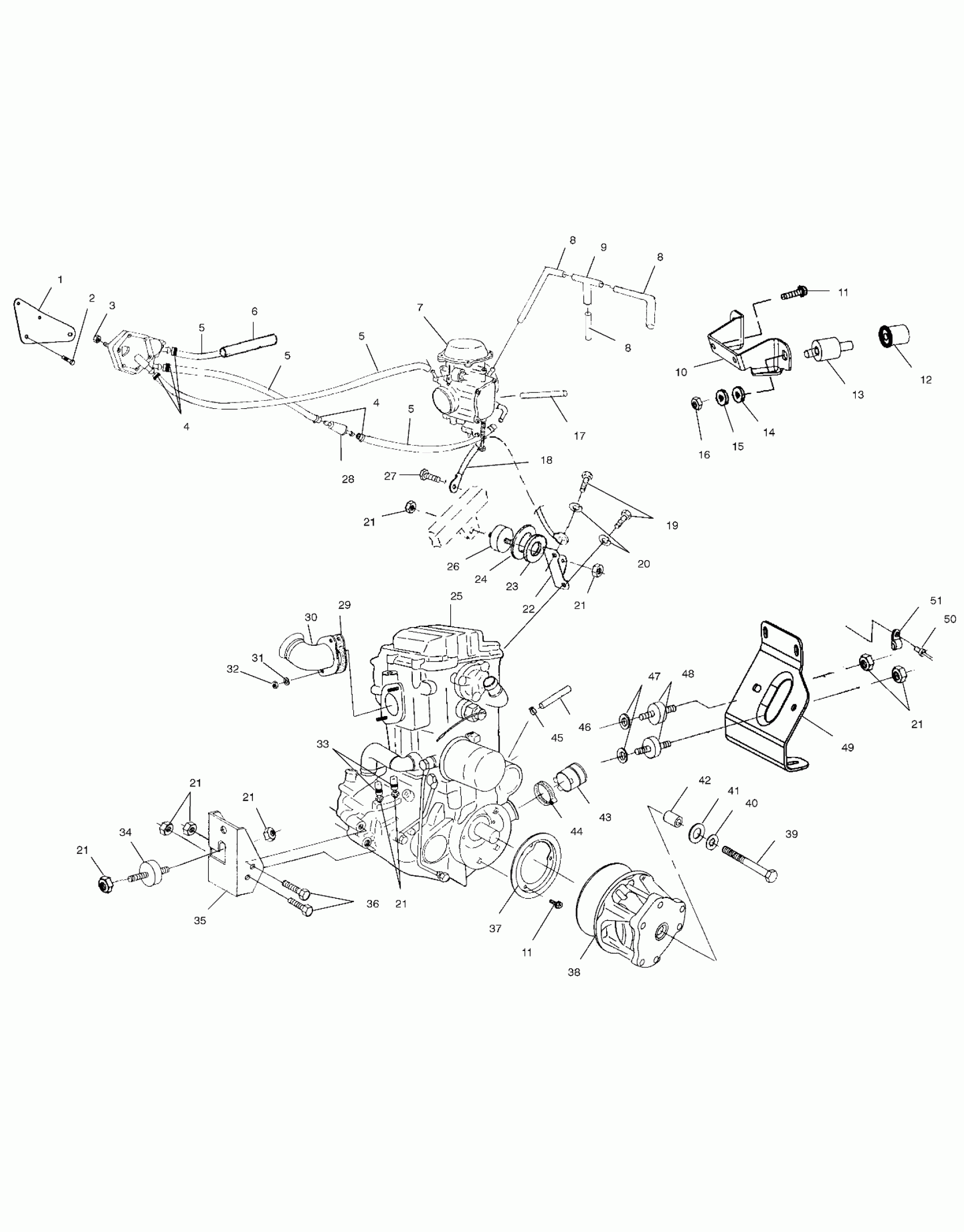

Polaris 500 MAGNUM 500 HDS - A01CD50FB ENGINE MOUNTING - A01CD50AA (4964196419A011) Diagram

#

Description
Price

1

STRAP-FUEL PUMP,MTG,BLK

5243829-067

Unavailable

2

SCREW,10-24X5/8

7517756

$1.49

3

NUT-M5X.8,HX NYL-Y

7546601

$1.49

4

HOSE CLAMP, RED

7080003

$1.49

4

HOSE CLAMP, RED

7080003

$1.49

5

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

5

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

5

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

5

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

6

SHEATH-FOIL LAMINATED,5/8X18CM Substituted by 8450080-65

8450080-18

$15.49

7

Asm., Carburetor (See Carburetor Pg. D12, Ref. 47)

-------

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

9

FITTING, TEE

7052075

$9.59

10

BRKT, CARB.MT.

5240609-067

Unavailable

11

Screw and Washer (See Crankcase Pg. D9, Ref. 6)

-------

Unavailable

11

Screw and Washer (See Crankcase Pg. D9, Ref. 6)

-------

Unavailable

12

NUTSERT,HEX(10)

7547069

$3.99

13

MOUNT,RUBBER,CARB

3021086

$13.99

14

WASHER(10)

7558301

$1.49

15

WASHER(10)

7552605

$5.27

16

NUT HEX(10)

7542105

$3.99

17

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

18

CABLE,GND-ENGINE

4010132

Unavailable

19

BOLT(10)

7512315

$4.79

20

LOCK WASHER(10)

7552901

$1.49

21

NUT

7547108

$4.79

21

NUT

7547108

$4.79

21

NUT

7547108

$4.79

21

NUT

7547108

$4.79

21

NUT

7547108

$4.79

21

NUT

7547108

$4.79

21

NUT

7547108

$4.79

22

MOUNT,ENGINE,TOP,BLK

5242936-067

$5.75

23

WASHER(10)

7555823

$3.99

24

SPACER-MOTOR MNT TOP

5132007

Unavailable

25

ENG.(S.B.)EH50PLE-01 (EH50PLE08) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required

3085556

Unavailable

26

MOUNT-RUBBER,TOP,60 DURO

3021045

Unavailable

27

SCREW,(10)

7517386

$1.49

28

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

29

Gasket, Exhaust (See Cylinder Pg. D8, Ref. 20)

-------

Unavailable

30

MANIFOLD,BLK

1260978-029

Unavailable

31

WASHER LOCK ,(10)

3080530

$3.19

32

NUT(10)

3080285

Unavailable

33

CLAMP-HOSE,.875-SS

7080474

$8.40

34

MOUNT,RUBBER,TOP

3110044

Unavailable

35

MOUNT,LOW.FR.ENGINE,BLK.

5242818-067

$40.19

36

BOLT(10)

7515417

$4.79

37

Bracket, Retainer, Seal (See Clutch Cover Pg. C5, Ref. 15)

-------

Unavailable

38

Asm., Drive Clutch, ATV-06 (See Drive Clutch Pg. C3 for Details)

-------

Unavailable

39

BOLT(10)

7512566

$30.79

40

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

41

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

42

BUSHING-.437 X.770 X.50

5430261

$7.19

43

BOOT,CLUTCH INTAKE

5410421

$11.19

44

CLAMP, NARROW BAND(10)

7080511

$4.79

45

CLAMP,HOSE,SPRING

7080694

$6.53

46

Hose, Breather (See Air Box Pg. A14, Ref. 12)

-------

Unavailable

47

WASHER, FLAT(10)

7555815

$3.99

48

MOUNT,RUBBER,REAR,60 DURO

3021119

Unavailable

49

Mount, Motor, Rear (See Transmission Mounting Pg. D5, Ref.11)

-------

Unavailable

50

RIVET(50)

7621462

$1.49

51

CLAMP,NYLON,CABLE(10)

7080539

$4.79
