Description

Price

1

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.59

1

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.59

2

CAP-PRESSURE,13 PSI

1240044

Unavailable

3

FILLER-REMOTE COOLANT

5433364

$43.56

4

BRKT,REMOTE COOLANT FILL

5243505-067

Unavailable

5

RIVET-3/16-.090-.290

7661637

$1.49

6

FLEXGUARD-PLASTIC GUARD

5433948

Unavailable

7

HOSE,UPPER ENGINE

5411794

Unavailable

8

CLAMP-ROTO SPRING 1"

7080827

Unavailable

8

CLAMP-ROTO SPRING 1"

7080827

Unavailable

9

SCREW(10)

7512084

$1.49

9

SCREW(10)

7512084

$1.49

10

HOSE,FILLER NECK

5411632

Unavailable

11

CLAMP-ROTO CLIP

7080826

$4.79

11

CLAMP-ROTO CLIP

7080826

$4.79

12

Screw

7517659

$3.99

13

FAN&MOTOR,ASM,SPAL

2410123

$180.79

14

CLIP,U,ZY

7670111

Unavailable

14

CLIP,U,ZY

7670111

Unavailable

15

NUTSERT,HEX(10)

7547069

$3.99

16

WASHER(10)

7558301

$1.49

17

Mount, Rubber

3110032

$7.99

18

SPACER, MOUNT (AA)

5020572

$8.79

18

SPACER-MOUNT,RADIATOR (FB)

5132648

$7.99

19

SHROUD-FAN,ATV

5433059

Unavailable

20

SENSOR-THERMAL/HARNESS

4010161

$103.99

21

Radiator

1240045

Unavailable

22

WASHER(10)

7552605

$5.27

23

SCREW(10)

7512113

$3.99

24

COVER-RADIATOR,W/MESH

5433317

$35.35

25

O RING

5410607

$5.99

26

VALVE-PLASTIC RAD/COOLER DRAIN

7052296

Unavailable

26

O-RING,BUNA [No Longer Available]

5411633

Unavailable

27

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

28

BRKT,RADIATOR,LOWER,BLK (AA)

5243503-067

$154.99

28

BRKT,RADIATOR,LOWER,BLK (FB)

5244687-067

Unavailable

29

SCREW,(10)

7517386

$1.49

29

SCREW,(10)

7517386

$1.49

30

HOSE,LOWER ENGINE

5411694

Unavailable

31

GUARD-HOSE,12"

5521511

$7.43

32

BRACKET-COOLANT HOSE MOUNT,BLK

5244064-067

Unavailable

33

CLAMP-HOSE

7080807

$9.59

34

Screw (See Front Housing Pg C10, Ref. 2)

-------

Unavailable

35

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

36

FITTING,90 DEGREE

7052065

$7.19

37

TANK,SURGE

5433410

Unavailable

38

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

39

GASKET-OVERFLOW CAP

5810279

$2.41

40

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

41

BREAKER,CIRCUT,10A,FAN [No Longer Available]

4010369

$68.79

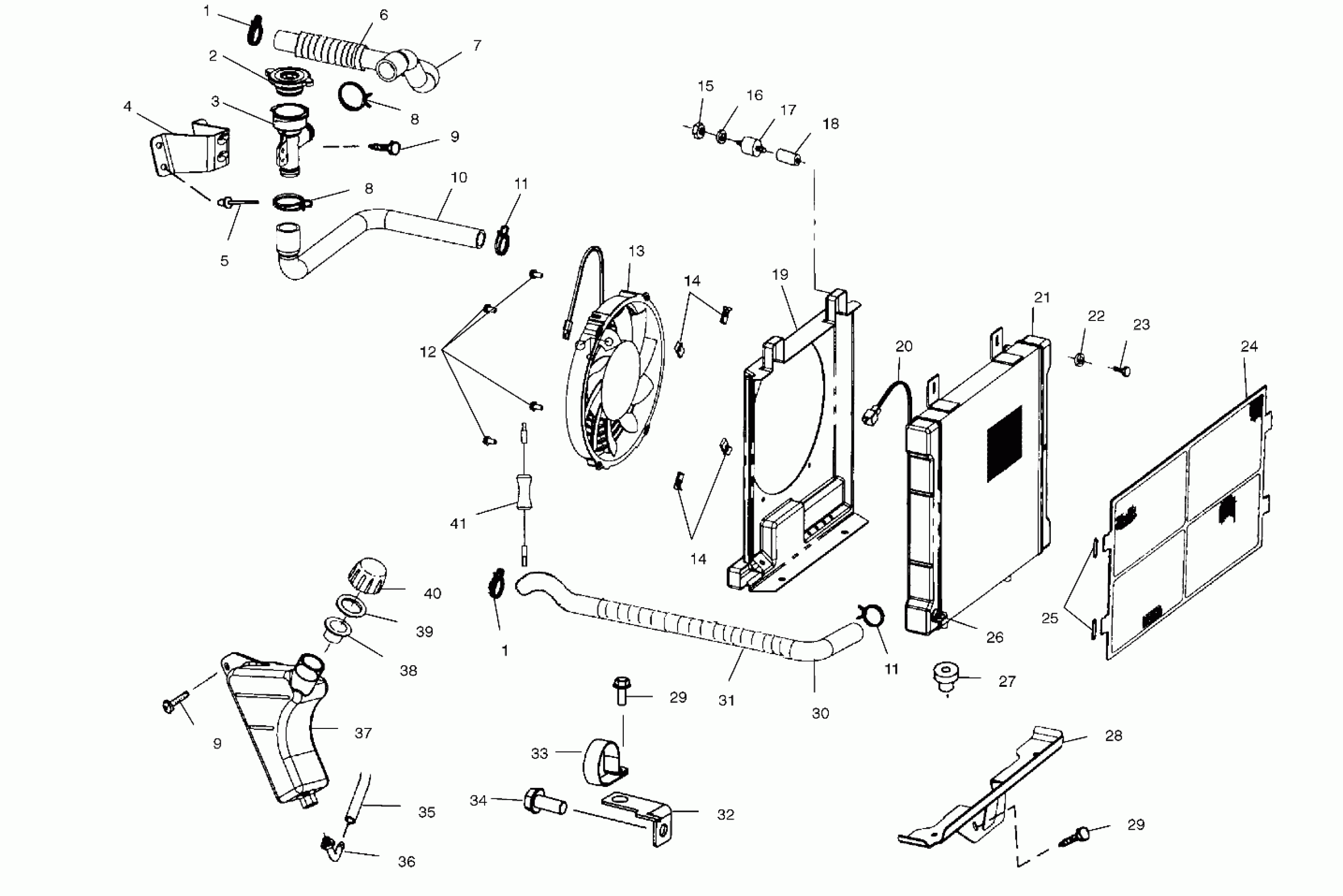

Polaris 500 MAGNUM 500 HDS - A01CD50FB COOLING SYSTEM - A01CD50AA (4964196419A009) Diagram

CLAMP,HOSE,1.25,WORM DRIVE

CLAMP,HOSE,1.25,WORM DRIVE

CAP-PRESSURE,13 PSI

FILLER-REMOTE COOLANT

BRKT,REMOTE COOLANT FILL

RIVET-3/16-.090-.290

FLEXGUARD-PLASTIC GUARD

HOSE,UPPER ENGINE

CLAMP-ROTO SPRING 1"

CLAMP-ROTO SPRING 1"

SCREW(10)

SCREW(10)

HOSE,FILLER NECK

CLAMP-ROTO CLIP

CLAMP-ROTO CLIP

Screw

FAN&MOTOR,ASM,SPAL

CLIP,U,ZY

CLIP,U,ZY

NUTSERT,HEX(10)

WASHER(10)

Mount, Rubber

SPACER, MOUNT (AA)

SPACER-MOUNT,RADIATOR (FB)

SHROUD-FAN,ATV

SENSOR-THERMAL/HARNESS

Radiator

WASHER(10)

SCREW(10)

COVER-RADIATOR,W/MESH

O RING

VALVE-PLASTIC RAD/COOLER DRAIN

O-RING,BUNA [No Longer Available]

BUSHING-MOUNT,LOWER RADIATOR

BRKT,RADIATOR,LOWER,BLK (AA)

BRKT,RADIATOR,LOWER,BLK (FB)

SCREW,(10)

SCREW,(10)

HOSE,LOWER ENGINE

GUARD-HOSE,12"

BRACKET-COOLANT HOSE MOUNT,BLK

CLAMP-HOSE

Screw (See Front Housing Pg C10, Ref. 2)

FUEL LINE,1/4 ID(1525 CM.)

FITTING,90 DEGREE

TANK,SURGE

PLUG-CAP 9X(GREEN) FLEX TEMP

GASKET-OVERFLOW CAP

CAP-OVER FLOW BOTTLE,DRILLED

BREAKER,CIRCUT,10A,FAN [No Longer Available]
