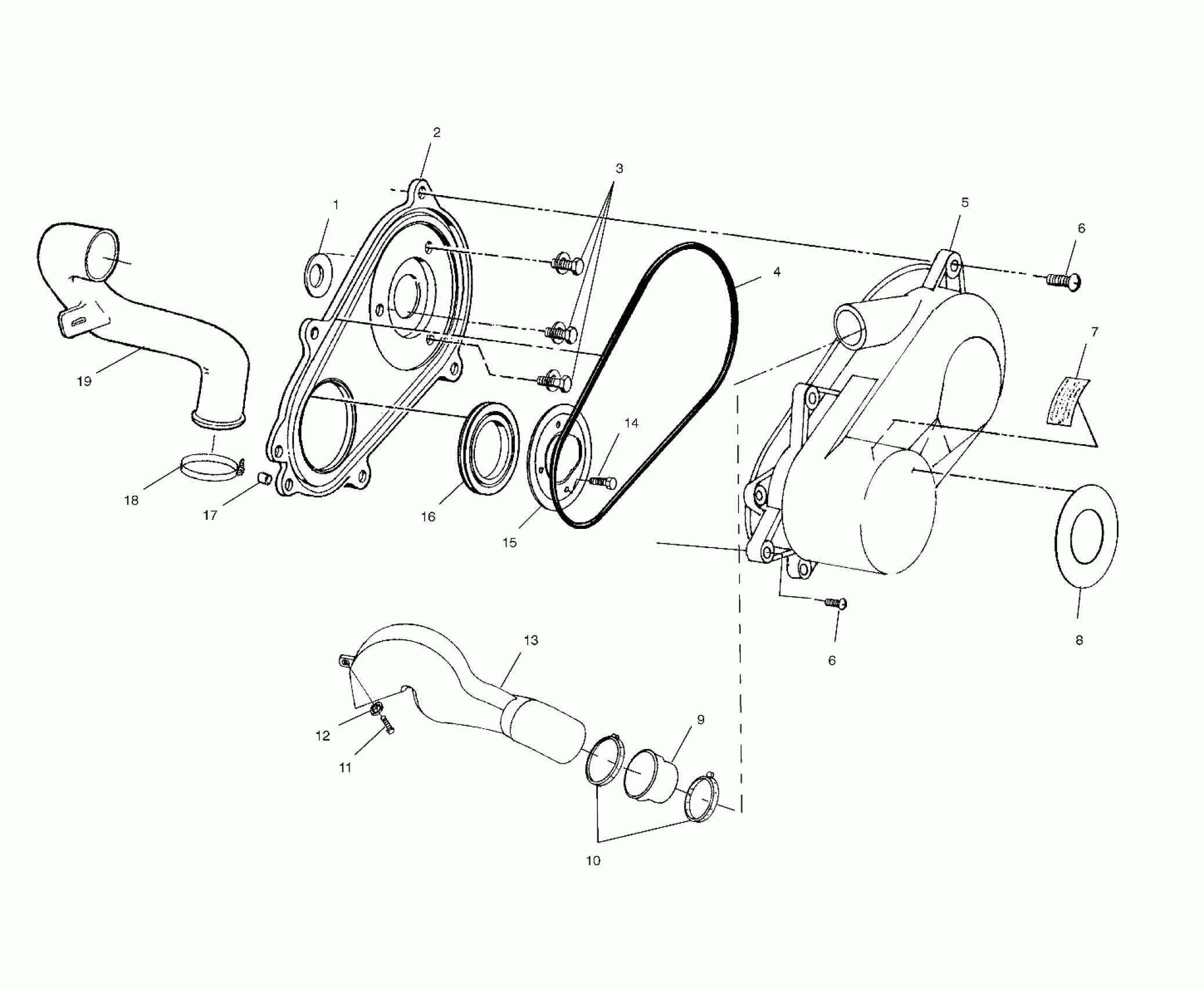

Polaris 500 MAGNUM 500 HDS - A01CD50FB CLUTCH COVER - A01CD50AA (4964196419C005) Diagram

SEAL-CLUTCH COVER,TRANSMISSION

5411901

Unavailable

INNER CLUTCH CVR,SVC,KIT (Incl. 4,6,16)

2201678

$155.99

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

SEAL,CLUTCHCOVER

5521301

$30.88

COVER,CLUTCH-OUTER,HV,BLK

5433451-070

$178.08

SCREW(10)

7512094

$1.59

SCREW(10)

7512094

$1.59

DECAL,WARNING,CLUTCH CVR

7078689

Unavailable

DECAL"AUTO./EBS",CLUTCH

7077666

Unavailable

BOOT,DUCT,HI-FLOW

5411489

Unavailable

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

SCREW,(10)

7517386

$1.49

WASHER(10)

7558301

$1.49

DUCT,AIR OUTLET,CLUTCH

5433744

Unavailable

Screw and Washer (See Crankcase Pg. D9, Ref. 6)

-------

Unavailable

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

Unavailable

Seal, Cover Case

5410575

Unavailable

STOPPER,INNER CLUTCH CVR

5411908

Unavailable

CLAMP, NARROW BAND(10)

7080511

$4.79

DUCT,INLET,DOWN TUBE

5432698

Unavailable
