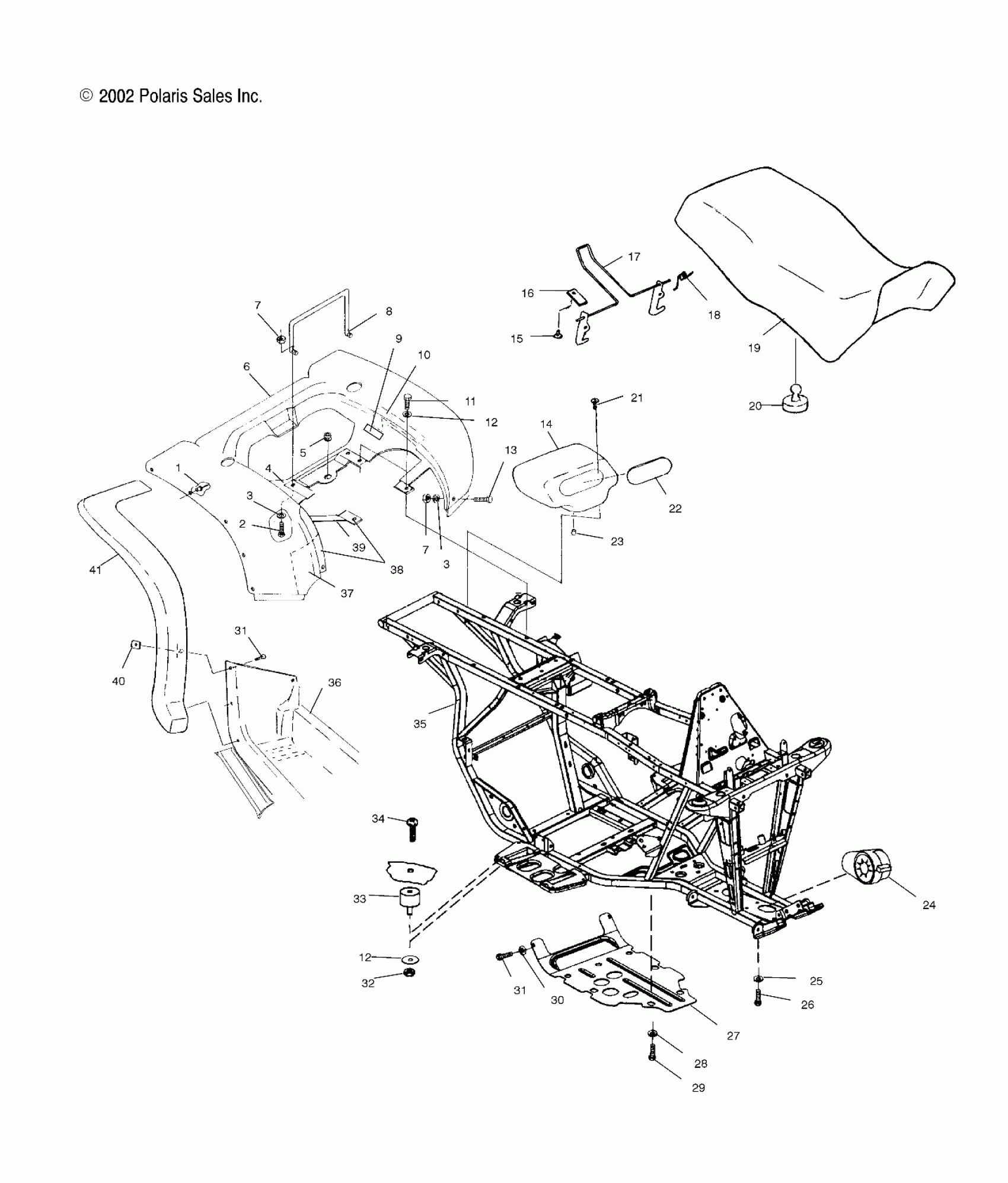

Polaris 500 MAGNUM 4X4 HDS - A03CD50FB REAR CAB and SEAT - A03CD50FB (4975277527A03) Diagram

#

Description
Price

1

Rivet

7661645

$3.99

2

Bolt

7511930

$2.39

3

WASHER

7555792

$4.79

3

WASHER

7555792

$4.79

4

Foil, Rear Cab, Rear

5811107

$6.46

5

Grommet

5411042

Unavailable

6

Cab, Rear, Silver Vapor Metallic

5432117-382

Unavailable

7

Nut, Nylok

7541925

$1.49

7

Nut, Nylok

7541925

$1.49

8

Retainer, Seat Latch

5224592

Unavailable

9

Decal, 4 Stroke, Carb/Filter Info

7079902

Unavailable

10

Foil, Tape, Rear Cab

5811308

$12.79

11

SCREW

7512242

$2.39

12

Washer, Flat

7555859

$1.49

12

Washer, Flat

7555859

$1.49

13

Screw

7512085

Unavailable

14

Box, Tool

5431786

$53.59

15

RIVET

7621403

$1.49

16

BRACKET, LEVER RETAINER

5211033

$29.25

17

LATCH, SEAT

1040387

$47.99

18

SPRING, LATCH

7041370

$9.59

19

Covering, Seat

2682958-070

$141.65

19

Seat

2682441-070

$424.98

19

Foil, Seat Base, Large

5811104

Unavailable

19

Foil, Seat Base, Small

5811105

$9.91

20

BUMPER-RUBBER

5412067

$3.99

21

Bolt/Washer

7517375

Unavailable

22

Cover, Tool Box

5431787

Unavailable

23

Cap, Drain

5410896

$5.59

24

ASM., GEARCASE [SEE FRONT HOUSING PG C7 FOR DETAILS]

-------

Unavailable

25

Washer, Spring Lock

7552603

$1.49

26

Screw

7512492

$1.49

27

Guard, Rock

5433435

Unavailable

28

WASHER-SKID PLATE

7556065

$4.79

29

SCREW

7517386

$1.49

30

Washer, Flat

7558301

$1.49

31

SCREW

7512232

$1.49

31

SCREW

7512232

$1.49

32

Nut, Nylok

7542122

$1.49

33

Grommet Footpad

5412156

$4.99

34

Screw

7517987

Unavailable

35

Frame, Main

1013899-067

Unavailable

36

Footwell, LH, Black

5432623-070

$230.70

36

Footwell, RH, Black

5433195-070

Unavailable

36

Guard, Mudflap, Footrest, LH

5434404-070

Unavailable

36

Guard, Mudflap, Footrest, RH

5434405-070

Unavailable

37

Foil, Foam, Rear Fender

5811111

$32.37

38

Foil, Rear Cab, Front

5811106

$8.89

39

Foil, Foam

5811087

Unavailable

40

NUT, U-TYPE SPEED

7670057

$1.49

41

Guard, Mud, Rear, LH

5434408-070

$82.99

41

Guard, Mud, Rear, RH

5434409-070

Unavailable
