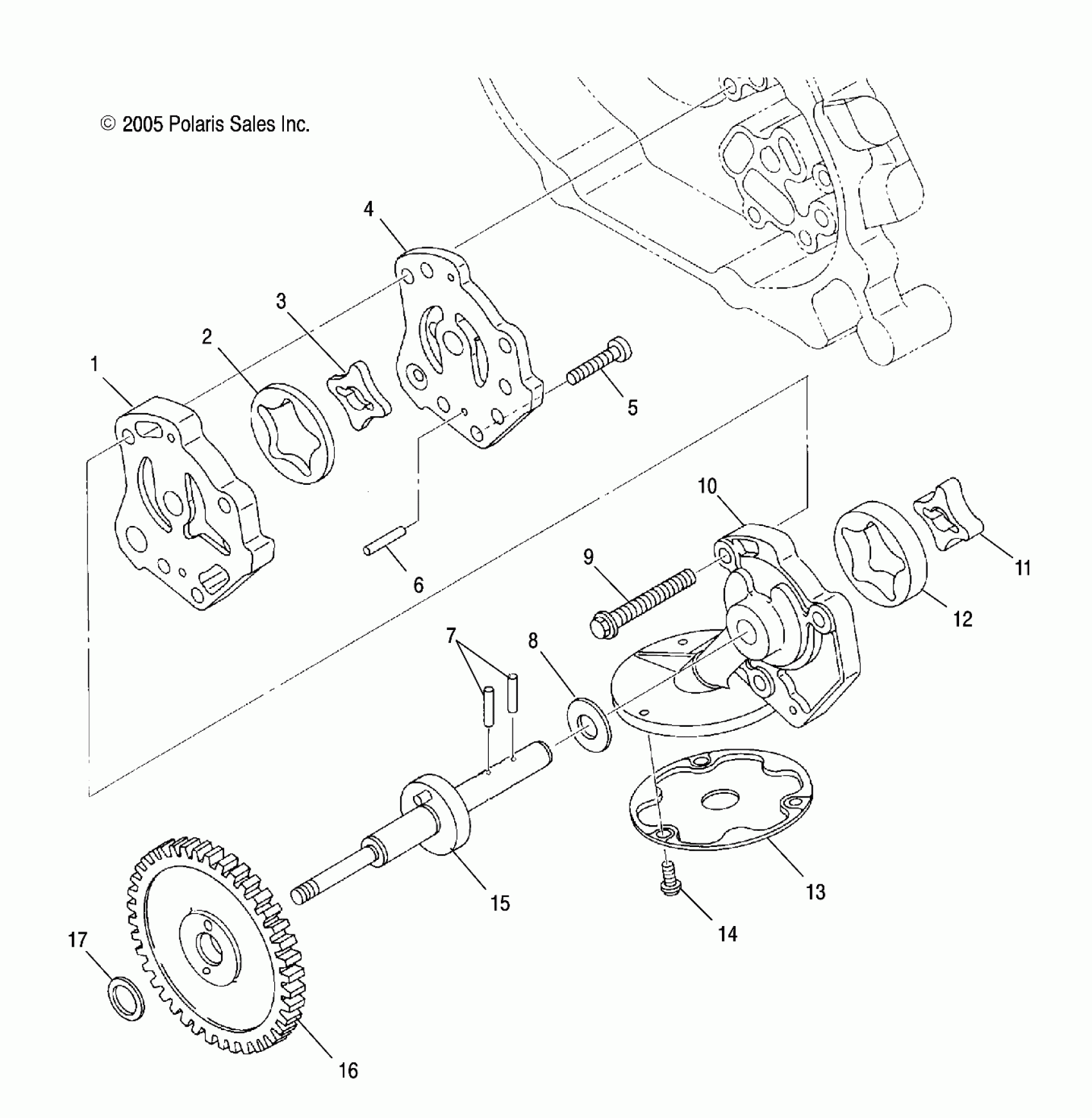

Polaris 500 MAGNUM 4X4 HDS - A03CD50FB OIL PUMP - A03CD50FB (4999201649920164D12) Diagram

#

Description
Price

1

PUMP, OIL, CASE 2

3084946

$75.40

2

ROTOR, OUTER, FEED

3084949

$44.51

3

ROTOR, INNER, FEED

3084948

Unavailable

4

Asm., Oil Pump [Incl. 1-8,10-15]

3084944

Unavailable

4

Pump, Oil, Case 1

3084945

Unavailable

5

SCREW

3085535

Unavailable

6

PIN, DOWEL

3084955

Unavailable

7

PIN, DOWEL

3084954

$7.14

8

WASHER

3084953

$3.17

9

Asm., Bolt and Washer

3084962

Unavailable

10

Pump, Oil, Case 3

3084947

$83.33

11

ROTOR, INNER

3084950

$32.37

12

Rotor, Outer

3084951

$48.56

13

UNIT, OIL STRAINER

3084956

Unavailable

14

Asm., Screw and Washer

3084205

$3.97

15

Shaft, Pump

3084952

$93.08

16

Gear 2, Pump

3084958

$88.87

17

SPACER, 0.8

3084959

Unavailable

17

SPACER, 1.2

3084961

Unavailable

17

SPACER, 1.0

3084960

Unavailable
