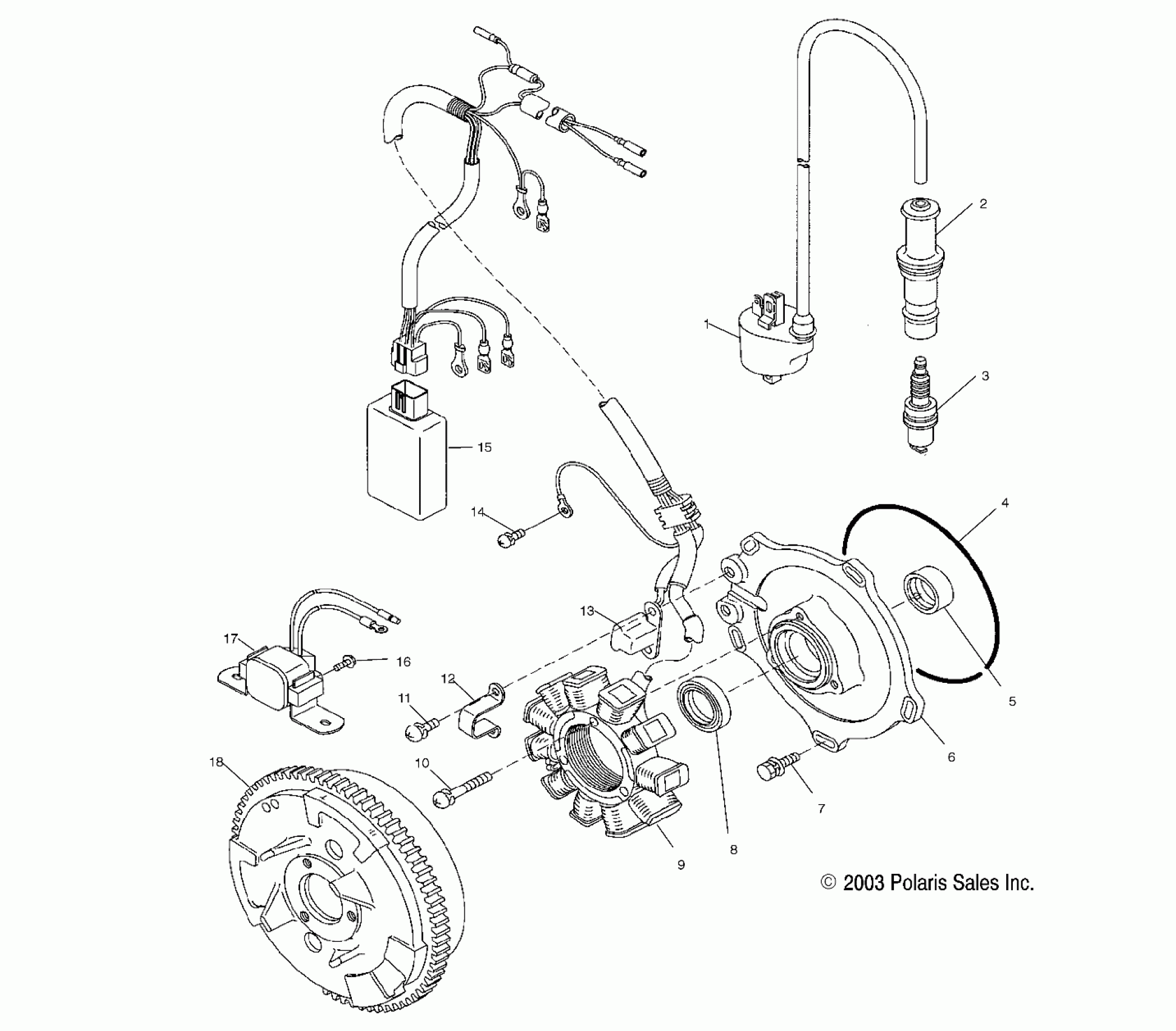

Polaris 500 MAGNUM 4X4 HDS - A03CD50FB MAGNETO - A03CD50FB (4975277527D12) Diagram

#

Description
Price

1

Asm., Ignition Coil [Incl. 1,2]

3084690

Unavailable

1

Coil, Ignition

3084979

Unavailable

2

Cap, Plug, Spark

3084980

$59.99

3

Plug, Spark

3070175

$3.99

4

O-RING

3084978

$35.99

5

Metal, Bearing

3084972

Unavailable

6

Asm., Plate [Incl. 5,6,8-11,14] [S# 02-02358 and higher]

3087167

Unavailable

6

Asm., Plate [Incl. 5,6,8-11,14] [through S# 02-02357]

3086980

Unavailable

6

Plate

3086981

Unavailable

7

Bolt and Washer

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

Stator [Incl. 13]

3087168

Unavailable

9

Stator [Incl. 13]

3086984

Unavailable

10

Screw and Washer

3086985

Unavailable

11

Screw and Washer

3084976

Unavailable

12

Band, Pulse

3085554

Unavailable

13

Coil, Pulser

3085360

Unavailable

14

Screw and Washer

3081256

$3.19

15

CDI System

3087169

Unavailable

15

CDI System

3086982

Unavailable

16

Bolt, Flange

3085359

$2.39

17

Switch, Magnetic

3085521

$60.70

18

Flywheel/Ring Gear

3087166

Unavailable

18

Flywheel/Ring Gear

3086983

Unavailable
