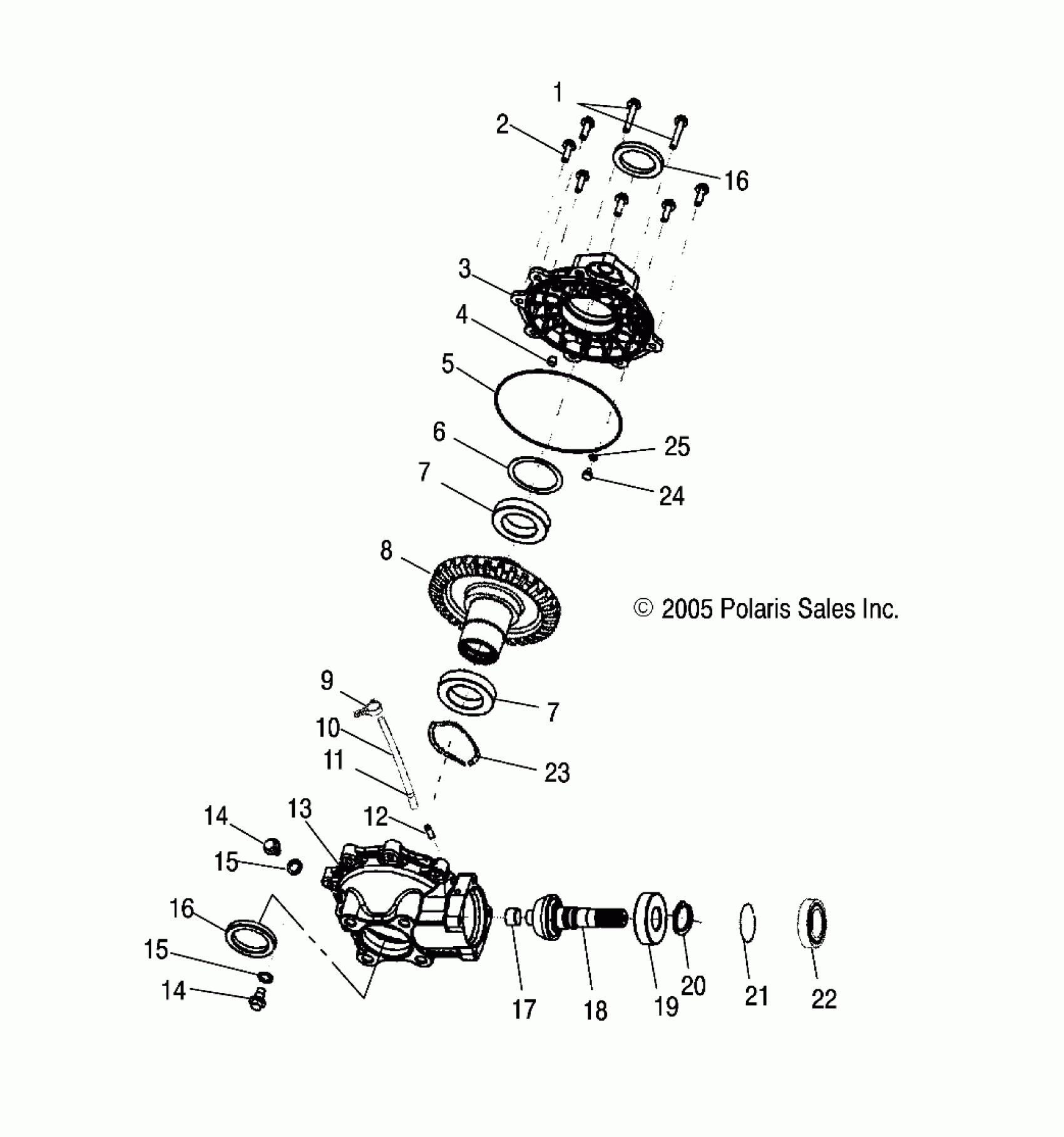

Polaris 500 MAGNUM 4X4 HDS - A03CD50FB HOUSING, REAR - A03CD50FB (4999201699920169C07) Diagram

#

Description
Price

-

Asm., Gearcase, Rear [Incl. 1-8,12-25]

1341423

Unavailable

1

Screw

3233585

Unavailable

2

Screw

3233252

$5.27

3

Cover, Output, Rear Housing

3233753

$229.37

4

Pipe, Knock

3233529

$7.99

5

O-Ring

3233587

$32.37

6

SHIM

3233581

$39.59

7

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

7

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

8

Gear, 31T

3233965

Unavailable

9

Clip

7670102

$2.39

10

Line, Fuel

8450003-1525

Unavailable

11

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

12

TUBE, VENT

3233524

$7.19

13

Gearcase, Rear Housing

3233970

$333.99

14

Plug, Oil Fill

3233711

Unavailable

14

Plug, Oil Fill

3233711

Unavailable

15

Washer

3233324

$8.99

15

Washer

3233324

$8.99

16

SEAL, TRIPLE LIP

3233878

$32.37

16

SEAL, TRIPLE LIP

3233878

$32.37

17

Bushing

3233577

$19.99

18

Shaft, Pinion, 10T

3233969

Unavailable

19

BEARING, BALL

3233714

$31.99

20

RING, RETAINING

3233699

$7.19

21

Ring, Retaining

3233968

$29.99

22

Seal, Triple Lip

3234003

$32.37

23

Spring, Wave

3233963

$10.39

24

THRUST BUTTON

3233582

$7.91

25

SHIM

3233583

$26.39
