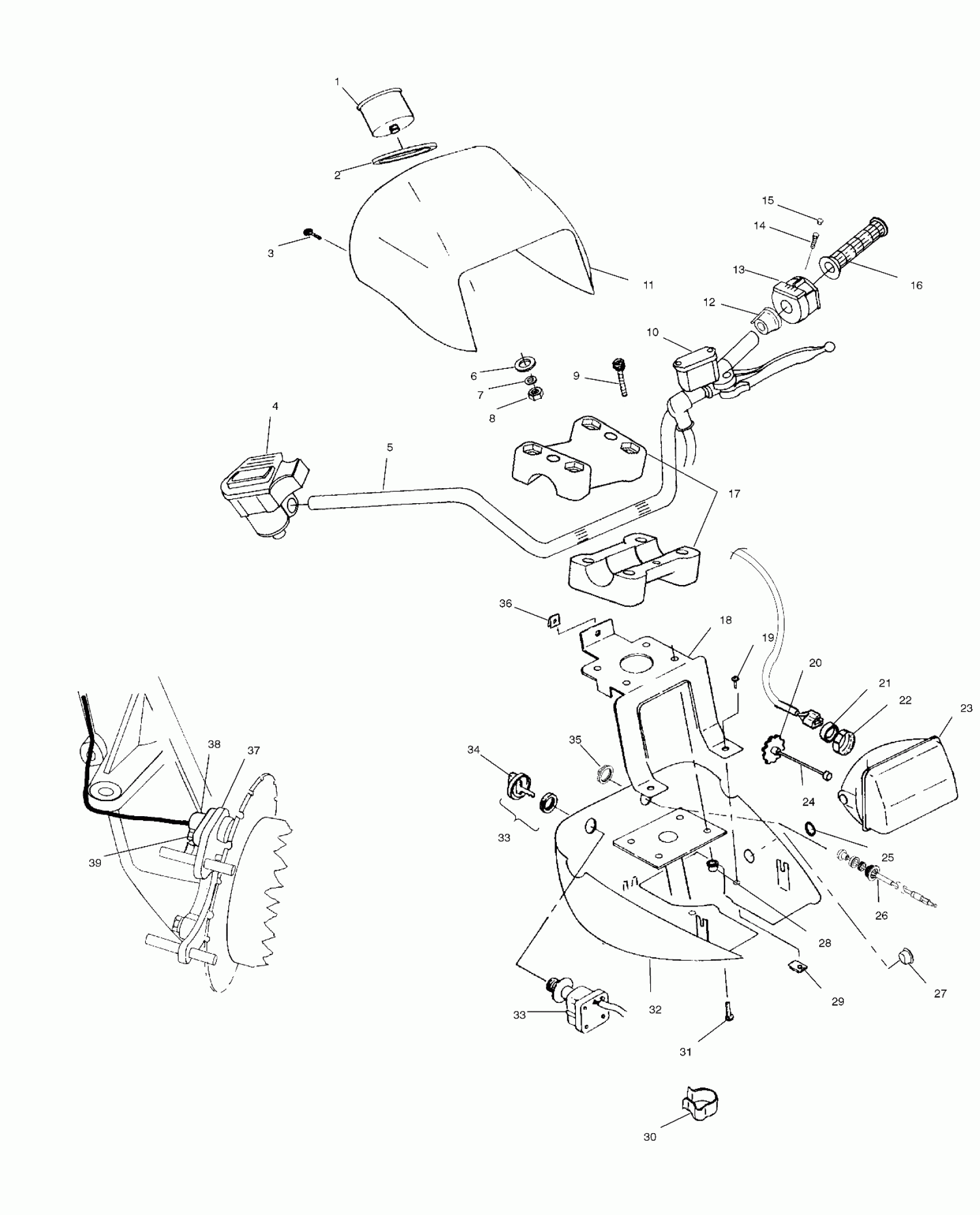

Polaris 500 MAGNUM 4X4 HDS - A03CD50FB HANDLEBAR and HEADLIGHT POD - A03CD50FB (4975277527B11) Diagram

#

Description
Price

1

Cluster, Asm., Inst., ATV, KM

3280390

Unavailable

2

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$43.99

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B7, REF. 3]

-------

Unavailable

5

Tube, Handlebar

5245181-067

$38.59

6

Washer, Flat

7558212

$1.49

7

Washer, Lock

7555868

Unavailable

8

Nut

7541933

$4.99

9

SCREW

7517238

$4.79

10

ASM., MASTER CYLINDER [SEE CONTROLS - MASTER CYLINDER/BRAKE LINE PG B10 FOR DETAILS]

-------

Unavailable

11

Pod, Headlight, Upper

5434284-382

Unavailable

12

Spacer, Switch, LH

5433903

Unavailable

13

Switch, Handlebar

4010422

$123.54

14

SCREW, SET

7517625

$4.79

15

Plug

5432952

$5.59

16

Grip, Handlebar

5433834-070

$24.27

17

Block Handlebar Pegged

5631146

$10.71

17

Block Handlebar

5631147

Unavailable

18

Bracket, Pod Mounting

5244969-067

$44.99

19

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

20

KNOB, ADJUSTING

4032079

$23.99

21

BOOT, HEADLIGHT

5411120

$27.99

22

Collar, Locking

4032077

$27.99

23

KIT-HARNESS,HEADLIGHT

2204143

$71.99

23

BULB-HEADLIGHT,50 WATT

4010253

$34.99

23

Asm., Headlamp

2410268

$109.27

23

Lens and Reflector

4032075

Unavailable

24

Rod, Adjusting

4032078

Unavailable

25

O-RING

5410163

$1.60

26

CABLE, CHOKE [SEE ENGINE MOUNTING PG. A12, REF. 36]

-------

Unavailable

27

Caplug

7080936

$2.39

28

Nut, Nylok

7542122

$1.49

29

Nut, U-Type

7670089

$5.59

30

Clip, Cable Retaining

7080631

$6.29

31

Screw

7522021

$3.99

32

Pod, Headlight, Lower

5433762-070

$114.99

33

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

33

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

33

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

33

Switch, Ignition [Incl. Key]

4010390

Unavailable

33

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

33

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

33

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

33

Switch, Ignition [Incl. Key]

4010390

Unavailable

34

KEY SWITCH KEY COVER

5433534

$12.35

35

Nut, Choke

7080922

$3.19

36

Nut, U-Type

7670127

$9.59

37

Sensor [Incl. 38]

4010298

$111.99

38

CAP

5132382

$23.99

39

Screw

7517658

$5.59
