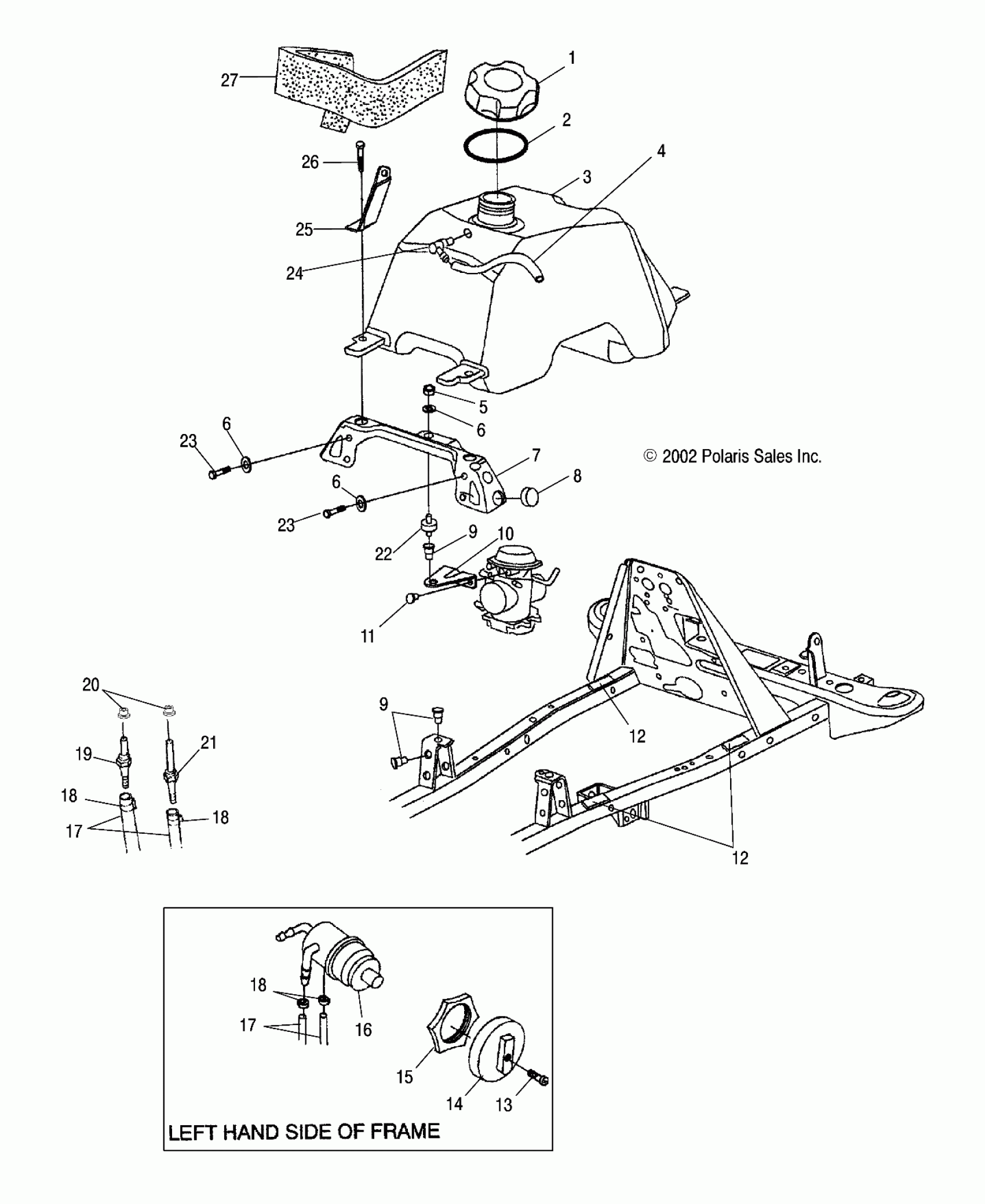

Polaris 500 MAGNUM 4X4 HDS - A03CD50FB FUEL TANK and CARBURETOR MOUNTING - A03CD50FB (4975277527A13) Diagram

#

Description
Price

1

Cap, Gas Tank [Includes Gasket]

5433687

$20.22

2

GASKET

5812123

$5.65

3

Asm., Fuel Tank [Incl. 19,20,23]

2520143

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

NUT

7542105

$3.99

6

Washer, Flat

7555859

$1.49

6

Washer, Flat

7555859

$1.49

6

Washer, Flat

7555859

$1.49

7

Bracket, Carburetor Support

5245672-067

$13.19

8

Bumper, Rubber

5410414

$3.19

9

Nutsert

7547069

$3.99

9

Nutsert

7547069

$3.99

10

Mount, Carb

5245673-067

$2.63

11

Screw and Washer

3084205

$3.99

12

Pad, Fuel Tank Bracket

5810317

Unavailable

12

Pad, Fuel Tank Bracket

5810317

Unavailable

13

Screw

7517505

$1.59

14

Knob, Fuel Valve

5432559

$10.39

15

Nut, Fuel Valve

5432733

Unavailable

16

Valve, 3-Way

7052161

$39.99

17

Line, Fuel

8450103

Unavailable

17

Line, Fuel

8450103

Unavailable

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

19

Fitting, Fuel Outlet, Main

7052150

$27.99

20

Grommet

7052362

$9.99

21

Fitting, Fuel Outlet, Reserve

7052149

$23.99

22

MOUNT, CARBURETOR

3110050

$12.99

23

Screw

7512276

$4.79

23

Screw

7512276

$4.79

24

Vent, Tank

5431053

$19.99

25

Bracket, Fuel Cover Mount, Rear, LH

5222154

Unavailable

25

Bracket, Fuel Cover Mount, Rear, RH

5222155

Unavailable

26

Screw

7512277

$4.79

27

Seal, Foam

5811942

Unavailable
